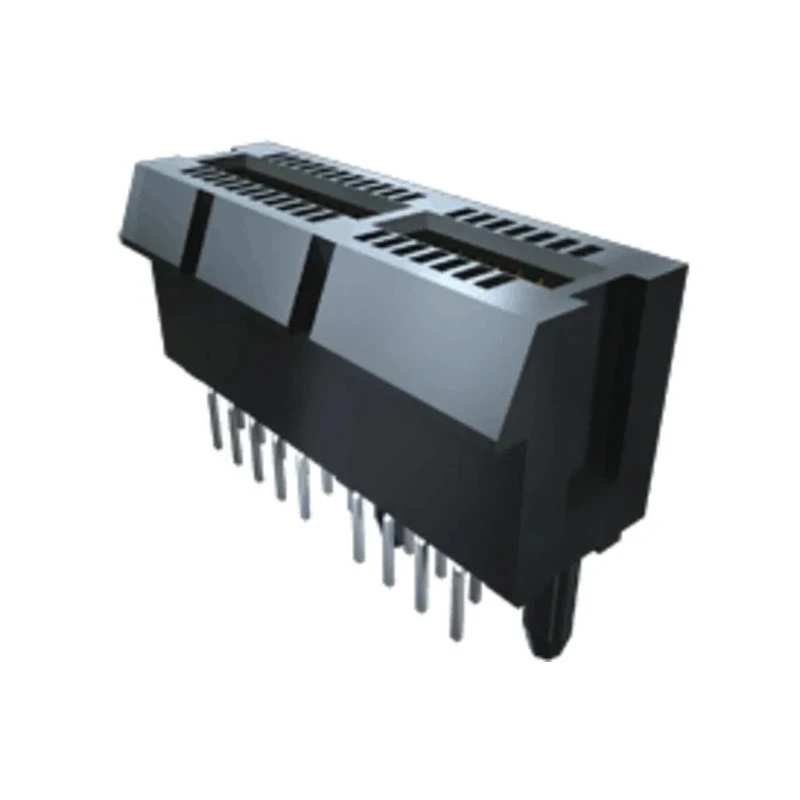

Samtec PCIe Series Straight Edge Connector Female, Edge Mount, 98 Contacts, 1 mm Pitch, 2 Row, Solder PCIE-098-02-F-D-EMS2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 215V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.2A |
| Model | PCIE-098-02-F-D-EMS2 |
| Mount Type | Edge |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | PCIe |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 98 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCI |
| Card Thickness | 1.6mm |
Key Features
- Features a straight orientation for edge mounting applications.
- Offers 98 gold-plated contacts made of phosphor bronze for reliable conductivity.
- Supports a current rating of 2.2A and voltage rating of 215V.
- Constructed with a liquid crystal polymer housing suitable for operating temperatures from -55°C to 125°C.
- Designed to accept a 1.6 mm thick PCI card with 1 mm pitch.
- Ideal for PCIe interface in industrial and electronic component assemblies.
- Provides solder termination ensuring secure and stable connections.
Product Description
Samtec PCIE-098-02-F-D-EMS2 is a PCIe Series Straight Edge Connector Female designed for reliable edge mounting in electronic assemblies. It features 98 gold-plated contacts arranged in 2 rows with a fine 1 mm pitch, suitable for PCI cards with a thickness of 1.6 mm. The connector supports a current of 2.2A and operates at voltages up to 215V, making it suitable for a variety of electronic and industrial applications.
The housing is made from liquid crystal polymer, providing excellent durability and allowing operation over a wide temperature range from -55°C to 125°C. Its solder termination type ensures strong and stable soldered connections to PCBs or edge connectors.
This connector is ideal for designing and assembling PCI Express interfaces in industrial, computing, and electronic applications requiring high-density connectors with robust mechanical and electrical performance.
Straight orientation for edge mounting facilitates easy installation. Gold plating on contacts ensures corrosion resistance and excellent conductivity. Phosphor bronze contacts offer mechanical strength and good conductivity.
Liquid crystal polymer housing enhances mechanical robustness and temperature tolerance. Compatible with PCIe protocols supporting one, four, eight, and sixteen links. Supports solder termination for secure connections in PCB assembly.
Widely used in electronic components, power connectors, and computing connector applications.
Samtec connectors are trusted in industrial and electronic manufacturing due to their precision engineering and reliability. Browse more in the Edge Connector category for complementary products and solutions suited for your engineering requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2.2A.
The voltage rating for this connector is 215V.
It features a housing made of liquid crystal polymer and contacts made of phosphor bronze with gold plating.
The connector can operate within a temperature range of -55°C to 125°C.
This unit has 98 contacts arranged in 2 rows.
The pitch of the contacts is 1 mm.
It utilizes a solder termination type for secure connections.
It is designed to accept a PCI card with a thickness of 1.6 mm.
The connector features a straight orientation for edge mounting applications.
It is ideal for PCI Express interfaces in industrial and electronic component assemblies.
The country of origin for this connector is India.
This connector is designed as a female connector.
