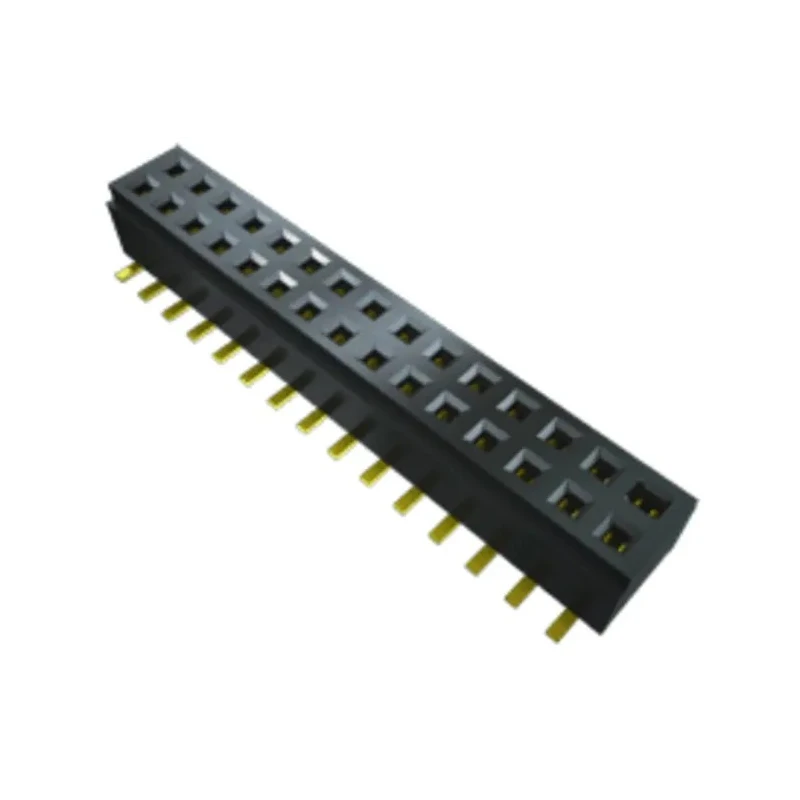

Samtec PCB Socket, Straight Surface Mount, 10-Contact, 2 Row, 1 mm Pitch, 2.8A, 270V CLM-105-02-F-D
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 270V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.8A |
| Model | CLM-105-02-F-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | CLM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Connector System | Board-to-Board |
Key Features
- Features a low profile dual wipe Tiger Claw™ contact for rugged and reliable performance.
- Houses a liquid crystal polymer body ensuring durability and stability.
- Supports current rating of 2.8 A and voltage up to 270 V.
- Terminated via solder type for secure mounting on surfaces.
- Operates efficiently between -55°C to 125°C temperature range.
- Employs gold plating on bronze contacts for excellent conductivity and corrosion resistance.
- Designed for board-to-board connector systems with straight orientation.
- Suitable for industrial, electronic manufacturing, and laboratory PCB assembly applications.
Product Description
Samtec CLM-105-02-F-D is a precision-engineered PCB socket designed for secure and reliable board-to-board connections. This straight surface mount socket features 10 contacts arranged in 2 rows with a 1 mm pitch, making it ideal for compact and high-density PCB designs. The product incorporates the innovative Tiger Claw™ dual wipe contact technology offering robust electrical performance and mechanical durability.
The housing is made from liquid crystal polymer which ensures high dimensional stability and resistance to environmental factors, suitable for demanding industrial and electronic manufacturing environments. The socket supports a current rating of 2.8 A and a nominal voltage of 270 V, making it suitable for various electrical applications requiring dependable connectivity.
Contact materials are bronze with gold plating to provide excellent conductivity and enhanced corrosion resistance, ensuring longevity and reliability in critical applications. The solder termination type allows for easier assembly on surface mount PCBs and integration into automated production processes.
Operating temperature range from -55°C to 125°C allows use in harsh environmental conditions commonly encountered in industrial, laboratory, HVAC control systems, and manufacturing applications.
Low profile design reduces overall PCB height. 2-row configuration for compact installations. High-reliability dual wipe contact system. Gold-plated bronze contacts improve signal integrity. Liquid crystal polymer housing ensures durability.
Solder termination type compatible with automated assembly. Wide operating temperature range from -55°C to 125°C. Supports current rating of 2.8A and voltage of 270V.
This connector is ideal for use in industrial electronic systems, automated testing equipment, and communication hardware where reliable, high-density PCB interconnections are required. Samtec products are engineered to standards ensuring quality and performance, making them a trusted choice for PCB Socket applications.
Explore more Samtec connectivity solutions and industrial electronic components available through EnvMart for professional and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum voltage rating of 270V.
The current rating for this socket is 2.8A.
The contacts in this socket are arranged with a pitch of 1 mm.
The housing is made from liquid crystal polymer, ensuring durability and stability.
This PCB socket features a total of 10 contacts.
It operates efficiently within a temperature range of -55°C to 125°C.
This model uses a solder termination type for secure mounting on surfaces.
The contacts are arranged in a straight orientation.
It supports a board-to-board connector system.
The contacts are made from bronze and are gold plated for improved conductivity.
This socket is suitable for industrial electronic systems, automated testing equipment, and communication hardware.
The country of origin for this model is the United States.
