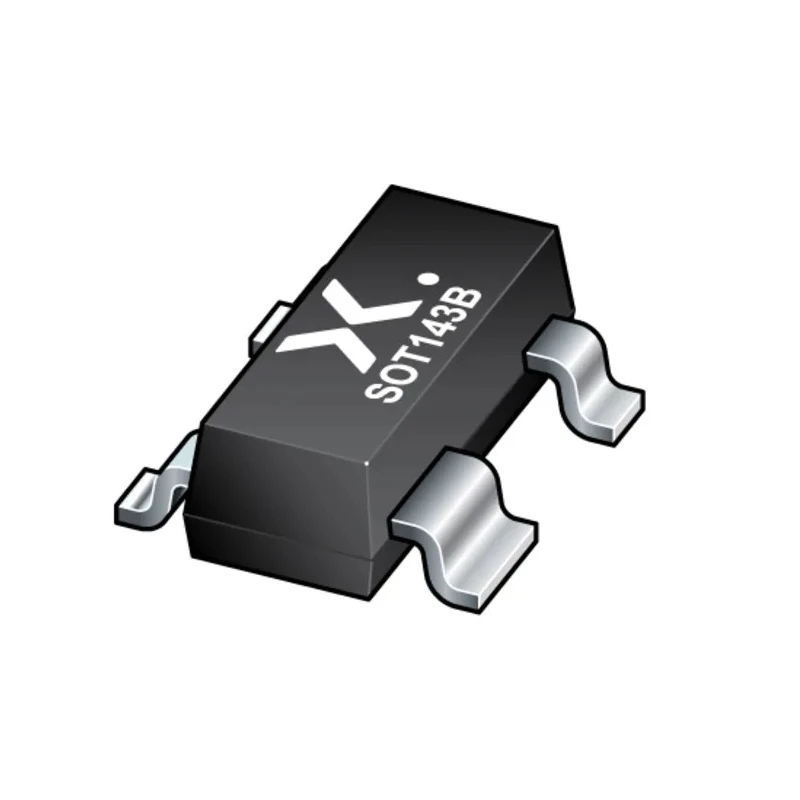

Nexperia General Purpose Dual High Voltage Diode 250 mA 300 V SOT-143 4-Pin BAW101,215

Nexperia BAW101,215 is a general purpose high voltage dual diode designed for high-speed switching applications. Encapsulated in a small plastic SOT-143 surface-mount package, it features two separate diode dies fabricated using planar technology. The device supports a maximum forward current of 250 mA and withstands a maximum continuous reverse voltage of 300 V, making it ideal for switching and protection circuits.

With a peak reverse recovery time of only 50 ns, this diode is optimized for fast response in electronic circuits, reducing power losses. The forward voltage drop is kept low, at a maximum of 1.1 V, to increase efficiency. The diode’s surge current capacity of 4.5 A allows it to handle transient high current events reliably.

The operating temperature range extends from -65°C to 150°C, supporting industrial and automotive environments. The compact SOT-143 package measures 3 mm in length, 1.4 mm in width, and 1.1 mm in height, accommodating high-density PCB layouts. Electrically insulated diodes within the dual array enable versatile circuit designs.

This diode is widely used in automotive, communication, industrial, and power management electronic applications that require robust, fast-Switching Diodes with a small form factor. It meets high voltage switching requirements, ensuring long-term reliable performance.

The diode features a maximum forward current of 250 mA suitable for low current applications. It provides a high continuous reverse voltage rating of 300 V ensuring robust performance. The package is SOT-143 surface-mount with 4 pins for reliable PCB mounting.

The device supports high-speed switching with a peak reverse recovery time of 50 ns. The diode operates in a temperature range from -65°C to 150°C for demanding environments. Peak non-repetitive forward surge current is rated at 4.5 A for transient conditions.

Maximum power dissipation is 350 mW making it well suited for compact designs. The diode exhibits a maximum forward voltage of 1.1 V, enhancing efficiency. Compact dimensions: length 3 mm, width 1.4 mm, height 1.1 mm enabling space-saving layouts.

This dual diode configuration is electrically insulated for safe circuit operation. Explore more semiconductor and switching diode components at EnvMart for your industrial, automotive, communication, and electronics manufacturing needs.
