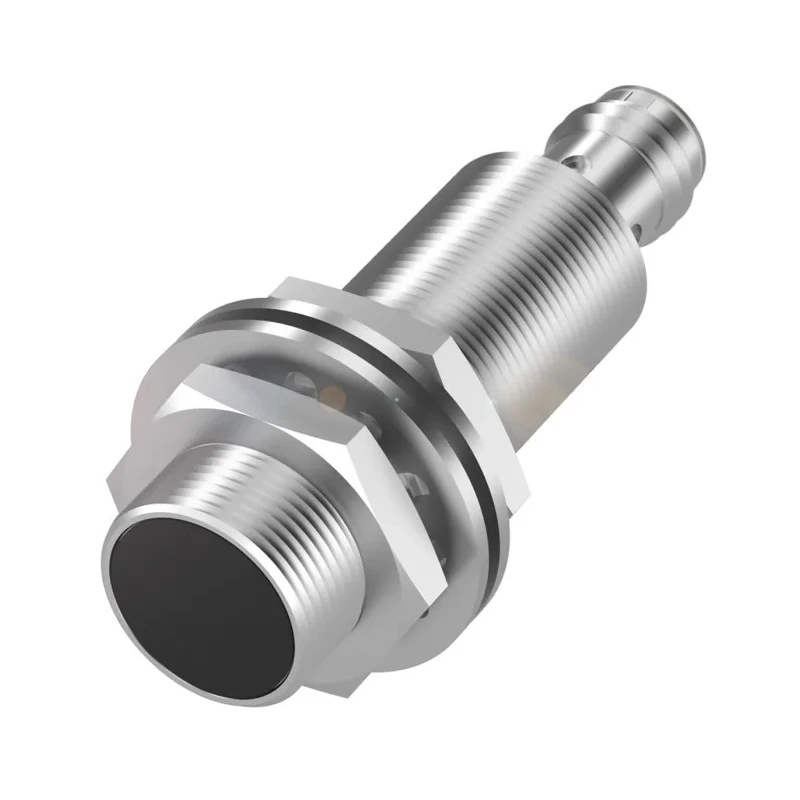

BALLUFF Inductive Proximity Sensor Threaded Barrel M18 x 1, PNP, 30V, 12mm, 250V AC, 200mA BES M18MI-PSC12B-S04G
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | BALLUFF |
| Length | 66mm |
| Model | BES M18MI-PSC12B-S04G |
| Depth | 66mm |
| IP Rating | IP68 |
| Width | 18mm |
| Mount Type | Flush |
| Housing Material | Brass |
| Output type | PNP |
| Maximum Operating Temperature | 70°C |
| Thread Size | M18 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | M12 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 550Hz |
| Standards/Approvals | CE Certified, cULus Listed, EAC |
| Maximum AC Voltage | 250V ac |
| Maximum Supply Voltage | 30V |
| Materials Detected | Polybutylene Terephthalate |
| Maximum Detection | 12mm |
Key Features
- Short-circuit protected inductive proximity sensor for reliable object detection.
- Threaded barrel design ensures easy mounting and secure installation.
- PNP output type with maximum switching current of 200mA for general automation systems.
- Flush mounting enables stable sensing in metal environments.
- IP68 rated housing provides high resistance against dust and water ingress.
- Works with maximum supply voltage up to 30V DC and maximum AC voltage up to 250V AC.
- Detection range up to 12mm suitable for a variety of industrial applications.
- Operates in wide temperature ranges from -25°C to 70°C.
Product Description
BALLUFF BES M18MI-PSC12B-S04G is a high-performance inductive proximity sensor designed for precise object detection in demanding industrial environments. It features a threaded barrel M18 x 1 construction that ensures secure mounting and compatibility with standard sensor brackets. Operating with a PNP output, the sensor supports a maximum switching current of 200mA and can function at supply voltages up to 30V DC or 250V AC.
The sensor incorporates shielded technology, allowing flush mounting in metal environments, which is ideal for automation and production lines where metallic interference is common. Its 12mm maximum detection distance expands its versatility across multiple sensing and positioning tasks. The robust IP68-rated brass body offers excellent protection against dust and water, enabling usage in harsh or contaminated environments.
Equipped with an M12 connector interface, this sensor integrates smoothly with existing industrial systems. The operating temperature range from -25°C to 70°C provides reliable performance inside factories, warehouses, and outdoor locations. The BES M18MI-PSC12B-S04G is resistant to dirt, easy to install, and requires minimal maintenance due to its contactless operating principle.
Polybutylene Terephthalate is the primary material detected, ensuring accurate and repeatable proximity-based measurements. It conforms to major standards including CE, cULus, and EAC, guaranteeing compatibility with global applications and compliance with regulatory requirements. The sensor supports a maximum switching frequency of 550Hz, offering fast response times suitable for dynamic process control.
Industrial use cases include automated machinery safety, part counting, material handling, conveyor tracking, and position feedback in assembly lines, manufacturing, and packaging systems. Its brass housing not only ensures mechanical rigidity but also reduces electromagnetic interference for stable sensor operation.
Explore BALLUFF's comprehensive range of sensors including this BES M18MI-PSC12B-S04G model for your automation and industrial sensing needs. Visit the Sensors section on EnvMart for additional Proximity Sensor options from BALLUFF and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this inductive proximity sensor is 12mm.
This model features a PNP output type.
It can operate with a maximum supply voltage of 30V DC and a maximum AC voltage of 250V AC.
The maximum switching current supported by this model is 200mA.
The operating temperature range for this sensor is from -25°C to 70°C.
The housing material is brass, which provides mechanical rigidity and reduces electromagnetic interference.
This sensor has an IP68 rating, providing high resistance against dust and water ingress.
It features a flush mounting design, which allows for stable sensing in metal environments.
The maximum switching frequency of this sensor is 550Hz, suitable for dynamic process control.
It is designed to detect polybutylene terephthalate, ensuring accurate proximity-based measurements.
This model conforms to major standards including CE, cULus, and EAC, ensuring compatibility with global applications.
