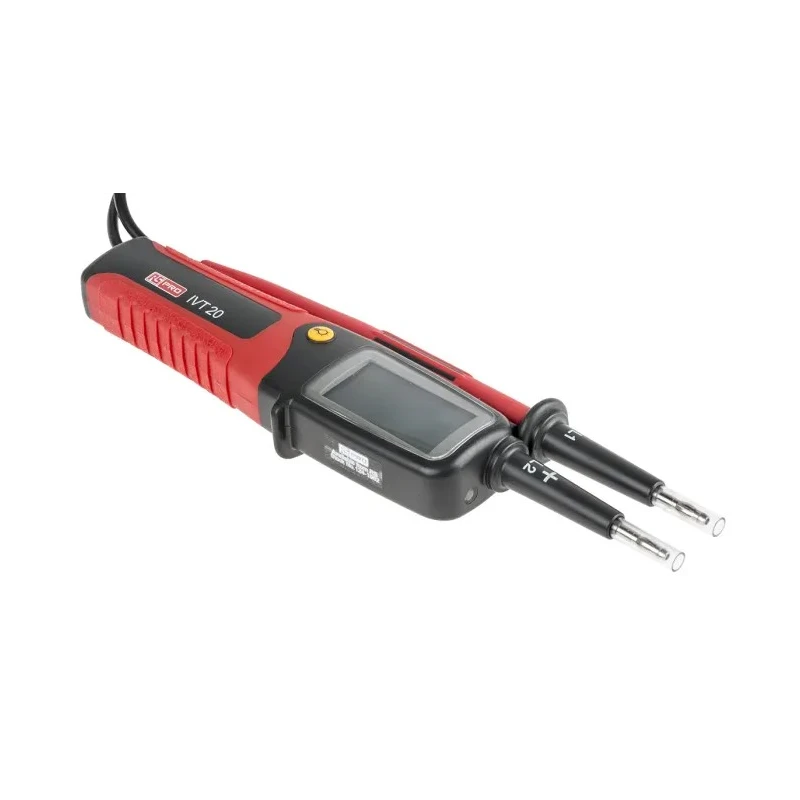

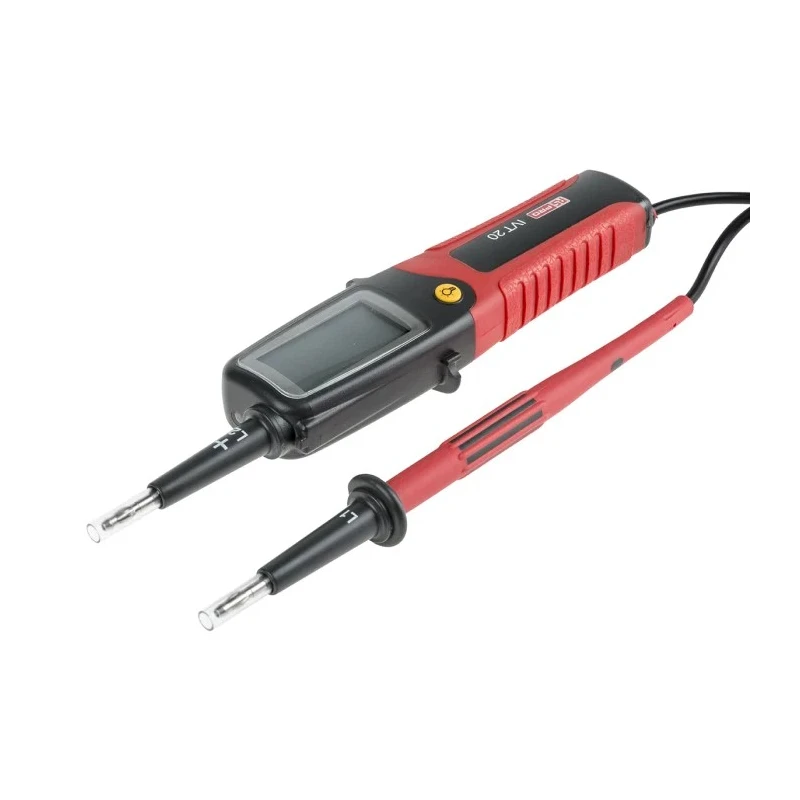

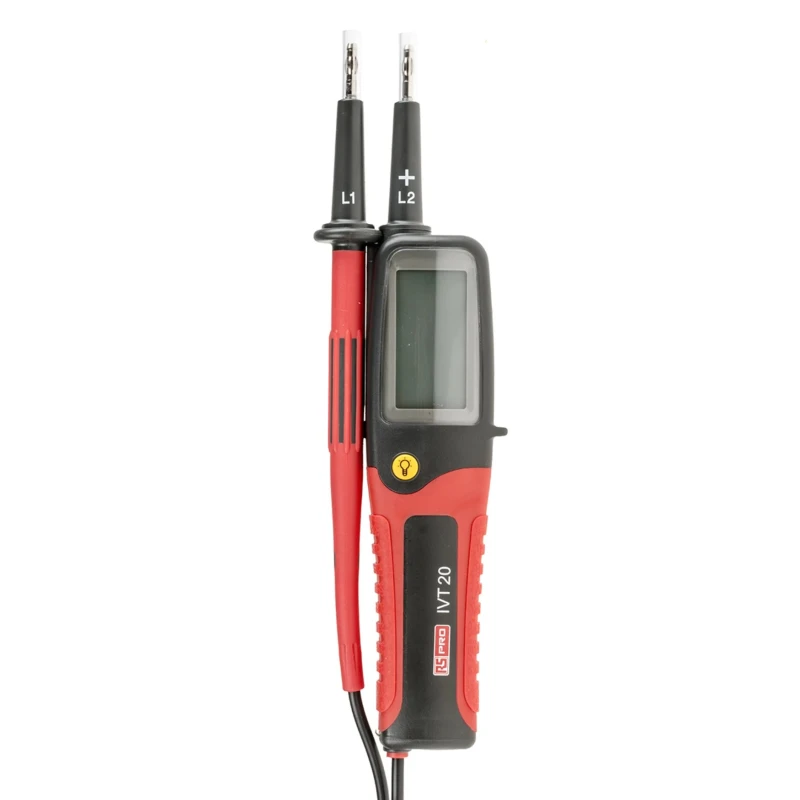

RS PRO LCD Voltage Tester IVT-20, 750V AC/DC, Continuity Check, Battery Powered, IP65, Tensilica LX6
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Testers RS PRO IVT-20, LCD Voltage Tester, 750V ac/dc Continuity Check, Battery |
| Display Type | LCD |
| Brand | RS PRO |
| Dimensions | 68 mm x 239 mm x 29 mm |
| Battery type | AAA, LR03 |
| Height | 239mm |
| Length | 68mm |
| Model | IVT-20 |
| IP Rating | IP65 |
| Gross Weight | 240g |
| Width | 29mm |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Maximum Voltage | 750V ac/dc |
| Standards/Approvals | IEC 61010-1 |
| Safety Category Level | Tensilica LX6 |
| Safety Category Voltage | 1000V |
Key Features
- Accurately measures both AC and DC voltage up to 750V.
- Integrated continuity check with audible beeper for quick circuit verification.
- Features robust IP65-rated enclosure for dust and water resistance.
- Powered by two AAA (LR03) batteries for portable field use.
- LCD digital display provides clear readings with dual display and frequency measurement.
- Rotary field indication aids in phase detection and troubleshooting.
- Self-test function and ultra-bright LED torch enhance user safety and operational convenience.
- Compact design with convenient battery compartment and retractable probe tips.
Product Description
The RS PRO IVT-20 is a professional-grade LCD Voltage Tester designed for reliable and safe measurement of voltage, continuity, frequency, and resistance in a wide range of electrical environments. This two-pole tester is suitable for both industrial and laboratory usage where accuracy and robustness are essential. Its maximum voltage rating of 750V AC/DC makes it ideal for high-voltage inspection, while the IP65 enclosure ensures operation in harsh, dusty, or outdoor sites.
Equipped with an integrated continuity check and audible beeper, this model allows rapid assessment of circuit status, helping to prevent accidental contact with live wires. The dual LCD display presents clear readings, including frequency measurement, to aid in comprehensive system analysis. Automatic sensing capabilities streamline workflow by detecting ACV, DCV, resistance, continuity, and diode checks without manual mode switching.
The IVT-20 tester incorporates phase detection with rotary field indication, making it invaluable for troubleshooting three-phase systems. Its self-testing functionality and ultra-bright LED torch improve operability and user safety, especially in dark or confined spaces. Probe tips are adjustable between 2 mm and 4 mm for versatile access, and the convenient battery door allows quick replacement of the two AAA batteries required for operation.
Designed to comply with IEC 61010-1 safety standards, the RS PRO IVT-20 ensures reliable protections for technicians and engineers. The compact and ergonomic form factor, combined with robust construction, facilitates comfortable hand-held use during electrical maintenance, commissioning, and testing tasks across construction, HVAC, water treatment, and manufacturing sectors.
Typical applications include electrical installation inspection, circuit troubleshooting, equipment maintenance, laboratory testing, and industrial quality control. The tester is also suited for commercial facility safety audits and energy management compliance.
Explore more voltage testing solutions and industrial measuring instruments from RS PRO at EnvMart to enhance your operational safety and testing accuracy.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO IVT-20 can measure both AC and DC voltage up to a maximum of 750V.
This voltage tester has an IP65 rating, making it resistant to dust and water.
It features an LCD digital display that provides clear readings, including frequency measurement.
The dimensions of the RS PRO IVT-20 are 68 mm in width, 29 mm in depth, and 239 mm in height.
The IVT-20 is powered by two AAA (LR03) batteries, allowing for portable field use.
It complies with IEC 61010-1 safety standards, ensuring reliable protections for users.
The operating temperature range is from 0°C to 50°C.
Yes, it includes an integrated continuity check with an audible beeper for quick circuit verification.
The gross weight of the RS PRO IVT-20 is 240 grams.
It can perform measurements of AC voltage, DC voltage, resistance, continuity, and diode checks.
The rotary field indication aids in phase detection and troubleshooting of three-phase systems.
Typical applications include electrical installation inspection, circuit troubleshooting, equipment maintenance, and industrial quality control.
