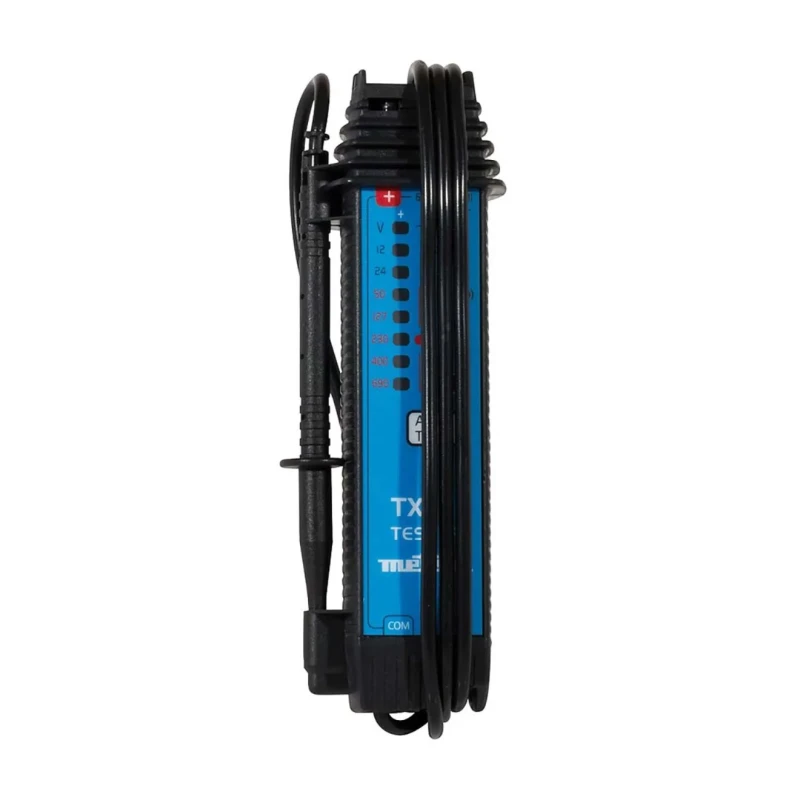

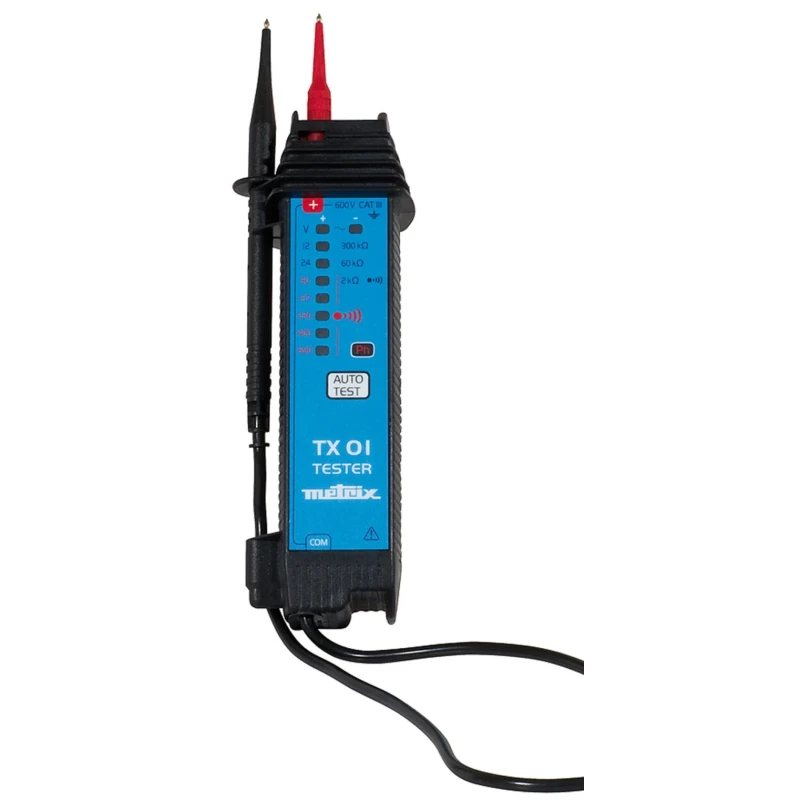

Chauvin Arnoux LED Voltage and Continuity Tester 690V AC/DC Battery Powered CAT III TX0001-Z

Chauvin Arnoux TX0001-Z LED Voltage and Continuity Tester is designed for precise AC and DC voltage measurements up to 690 V and offers reliable continuity checking capabilities. This battery-powered tester features LED indicators and an audible buzzer to alert users to voltage presence and continuity status, making it an essential tool for electrical technicians and engineers.

The device operates with a voltage detection range of 12 V to 690 V AC/DC using seven color-coded LEDs and includes an audible buzzer that sounds above 50 V. It supports phase and neutral identification with safe and efficient one-handed use. The polarity test function clearly indicates positive or negative polarity through dedicated LEDs.

In addition to voltage testing, the unit performs audible continuity tests for resistance values less than 2 kΩ and includes diode testing functionality. Resistance measurement spans from 2 kΩ to 300 kΩ, signaled by three LEDs for easy interpretation.

Safety is prioritized with a voltage protection rating of 1000 V and compliance to IEC 61010 CAT III 600 V standards, making it suitable for use in demanding industrial, laboratory, HVAC, and construction environments. The device features an autotest function that verifies battery power and overall tester integrity including probes, leads, LEDs, and electronics, to ensure reliability before each use.

Its compact dimensions of 179 x 47 x 33 mm and lightweight design (170 g) provide excellent portability. Additionally, it includes a built-in system for organizing and stowing test probes securely during transport and storage.

Common industrial, electrical, and maintenance applications include AC/DC voltage detection, continuity verification, polarity testing, resistance measurement, and diode testing, meeting the demands of electricians, maintenance technicians, and safety inspectors.

Tests voltage from 12 V to 690 V AC/DC with audible buzzer for voltages over 50 V. Phase and neutral identification enabled with one-handed operation. Polarity test includes +/- LED indicators for positive and negative detection.

Audible continuity test effective for resistance less than 2 kΩ with diode test feature. Resistance measurement from 2 kΩ to 300 kΩ indicated by LEDs. Protects up to 1000 V ensuring safe use in electrical environments. Auto-tests 9 V battery and entire tester circuitry for user confidence.

Certified to IEC 61010 CAT III 600 V for electrical safety compliance. Explore an extensive range of Voltage Testers and measurement instruments on EnvMart for your industrial and electrical testing requirements.
