| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 4mm |
| Model | BAT54GWX |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | BAT54 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 800mV |
| Low forward voltage | VF ≤ 400 mV |
| Low leakage current | IR ≤ 2 μA |

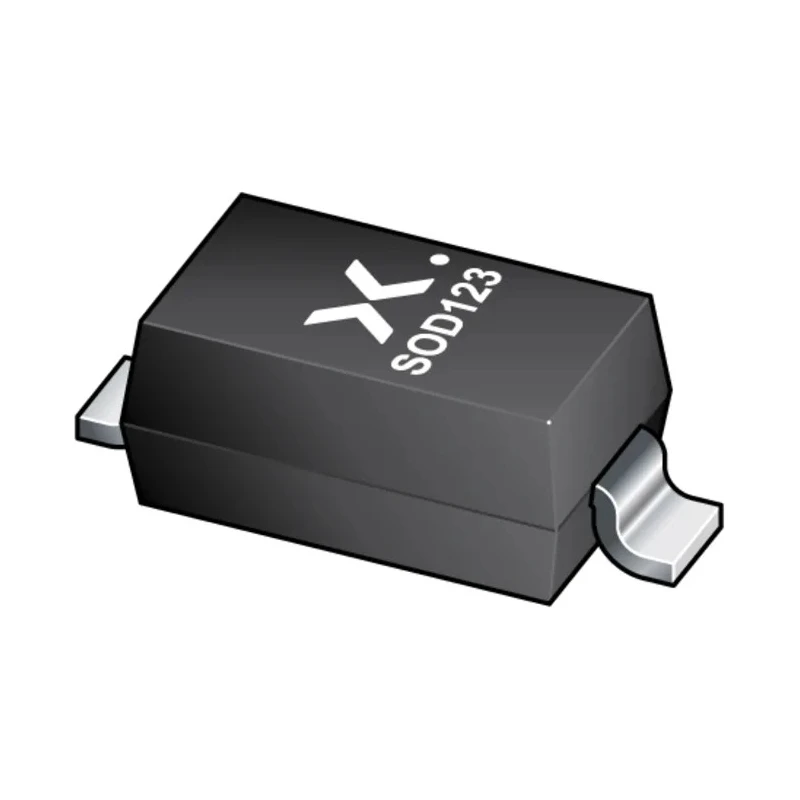

The Nexperia BAT54GWX is a high-performance Schottky diode designed for surface mounting in electronic circuits. It features a maximum reverse voltage of 30 V and a continuous forward current rating of 200 mA, making it suitable for low voltage, high speed switching applications.
Encapsulated in a compact SOD-123 plastic package measuring 4 mm length × 2.7 mm width × 1.1 mm height, this diode provides low forward voltage (VF ≤ 400 mV) and low leakage current (IR ≤ 2 μA), optimizing efficiency and reducing power loss.
The diode operates reliably across a wide temperature range of -55°C to 150°C. It is specifically qualified under the automotive standard AEC-Q101, ensuring suitability for automotive and industrial electronic systems requiring robust performance.
The planar Schottky barrier design includes an integrated guard ring for stress protection, contributing to enhanced device durability. The 2-pin configuration supports easy surface mount assembly on PCBs for efficient circuit design.
This diode has a low forward voltage drop, decreasing conduction losses. Excellent switching speed benefits digital and power circuits. Its small SOD-123 package enables compact PCB layouts. High maximum surge current (600 mA) permits transient tolerance.
Low leakage current enhances performance in sensitive signal and power applications. Qualified to automotive standards for dependable use in harsh environments. Applicable in power rectification, voltage clamping, reverse polarity protection, and signal demodulation.
Nexperia's BAT54GWX diode is widely used in electronic manufacturing, automotive electronics, power supply modules, and other industrial applications seeking small form factor and reliable diode solutions. Its technical specifications facilitate efficient electrical performance in demanding environments.
