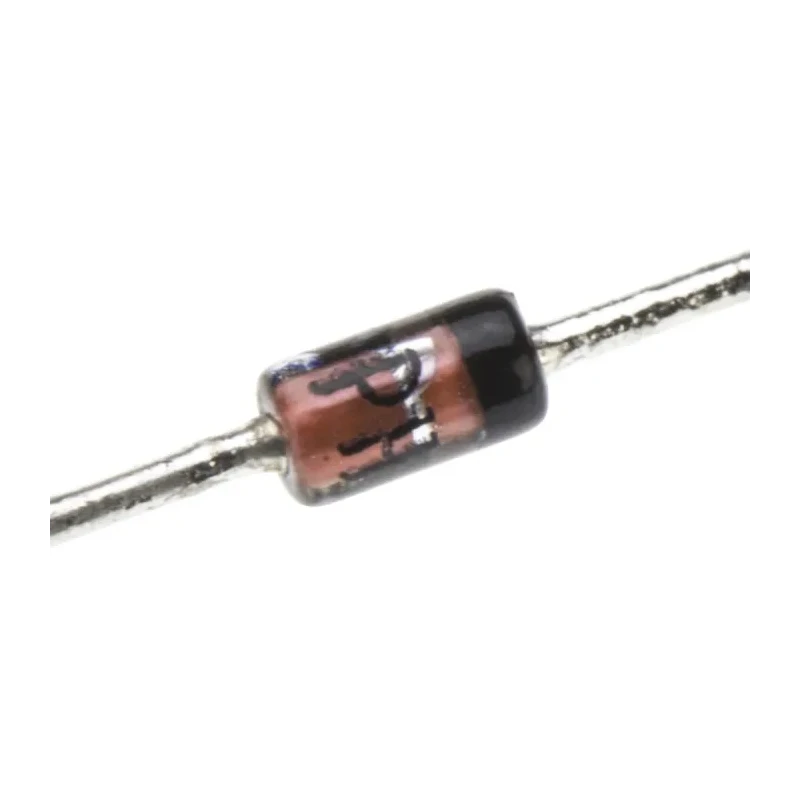

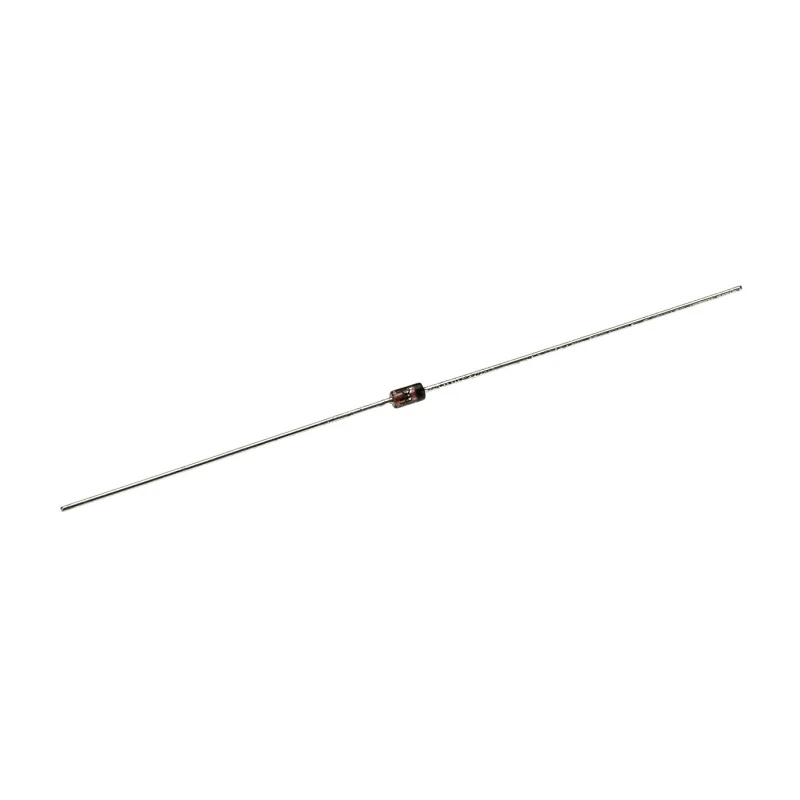

Nexperia Schottky Diode 30V 200mA Through-Hole 2-Pin DO-34 BAT85,113

The Nexperia BAT85,113 is a high-efficiency Schottky diode designed for use in a broad range of electronic applications, such as rectification, signal clipping, protection circuits, and high-frequency switching. Engineered with a maximum reverse repetitive voltage of 30V and the ability to conduct up to 200mA of continuous forward current, this diode is well-suited for low-voltage, high-speed, and energy-efficient requirements.

This discrete semiconductor device features a through-hole DO-34 package, providing mechanical stability and easy integration on standard printed circuit boards or prototyping setups. Its compact form, with a body measuring just 3.04mm in length and 1.6mm in diameter, makes it suitable for space-constrained designs without sacrificing performance.

The Schottky rectifier construction yields a typical low forward voltage drop, allowing it to operate with lower conduction losses and minimize heat generation. Its rapid 4 nanosecond reverse recovery time is optimal for high-speed switching and RF circuits, ensuring minimal signal distortion and fast circuit response.

Applications span power supply rectification, RF clamping, polarity protection, voltage clamping, and high-speed logic circuits. Its low leakage current (2μA maximum) and high junction temperature performance further guarantee stable operation in sensitive and high-temperature environments.

The device includes a 5A peak non-repetitive forward surge current capability, supporting brief current spikes without damage. Operating reliably between -65°C and +125°C, the BAT85,113 is robust enough for diverse industrial, instrumentation, consumer, and telecom applications.

With two through-hole leads, the device is straightforward to install, and it meets the need for space, reliability, and rapid response in modern electronics design. Its Schottky technology is advantageous for designs seeking high efficiency, very low capacitance, and negligible power switching losses.
