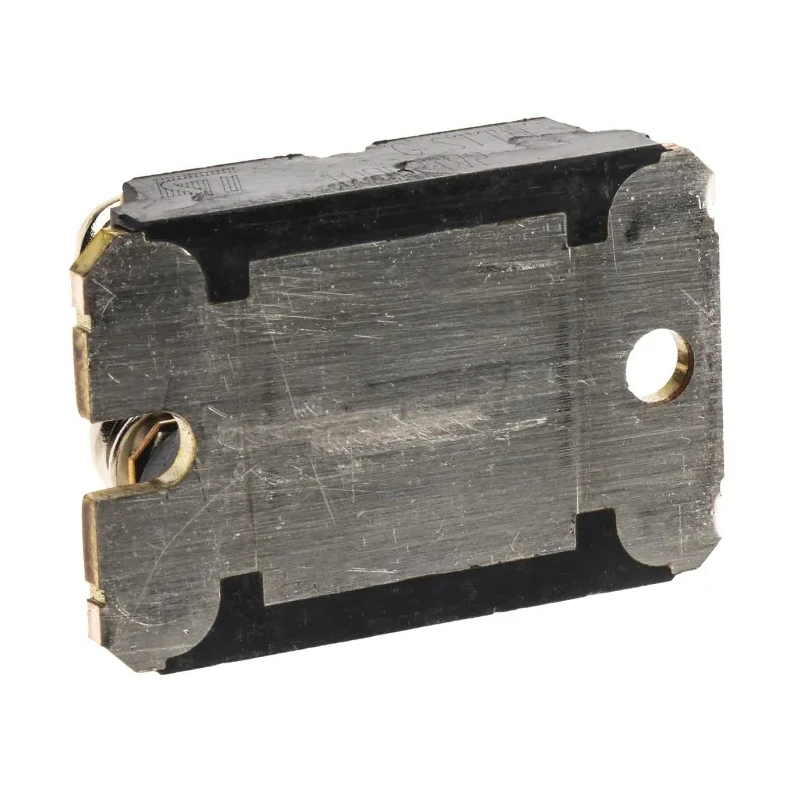

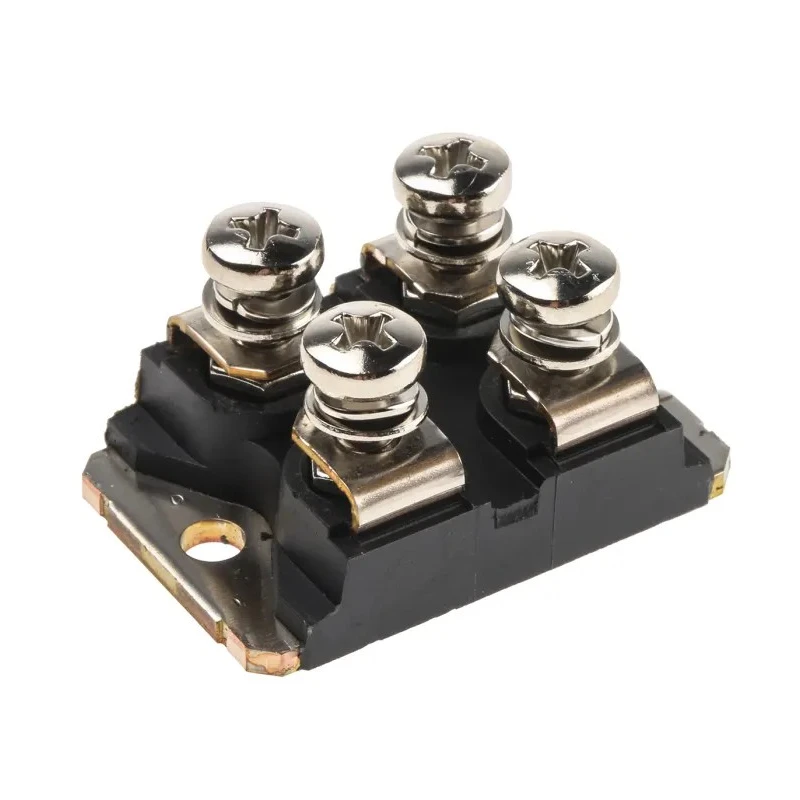

STMicroelectronics 200 V 50 A Diode Switching 4-Pin ISOTOP STTH10002TV2

Name: STMicroelectronics 200 V 50 A Diode Switching 4-Pin ISOTOP STTH10002TV2
Brand: STMicroelectronics
SKU: 145264



Category Semiconductors Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	4mm
Brand	STMicroelectronics
Height	9.1mm
Length	38.2mm
Model	STTH10002TV2
Width	25.5mm
Mount Type	Panel
Series	STTH10002
Maximum Operating Temperature	150°C
Package Type	ISOTOP
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Continuous Forward Current If	50A
Peak Reverse Repetitive Voltage Vrrm	200V
Diode Configuration	Isolated
Rectifier Type	Switching
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	750A
Maximum Forward Voltage Vf	1.15V
Peak Reverse Recovery Time trr	65ns

Key Features

Maximum continuous forward current rating of 50A ensures reliable high current handling.
Peak reverse repetitive voltage of 200V provides robust voltage endurance.
Isolated diode configuration in 4-pin ISOTOP packaging for easy panel mounting.
Peak non-repetitive forward surge current capability of 750A for transient load spikes.
Low maximum forward voltage drop of 1.15V reduces power losses and enhances efficiency.
Fast peak reverse recovery time of 65 nanoseconds suitable for switching applications.
Wide operating temperature range from -55°C to 150°C supports harsh environmental conditions.
Compliant with RoHS standards ensuring environmental safety.

Product Description

STMicroelectronics STTH10002TV2 is a high-quality switching diode featuring a 200 V peak reverse repetitive voltage and a continuous forward current rating of 50 A. This 4-pin ISOTOP packaged diode is isolated and designed for panel mount applications, providing robust and efficient rectification capabilities. It delivers a maximum forward voltage drop of 1.15 V and exhibits a fast peak reverse recovery time of 65 ns, making it ideal for high-speed switching circuits used in industrial, electronic, manufacturing, and power management systems.

The diode supports a peak non-repetitive forward surge current up to 750 A, ensuring capacity to handle transient surges and overloads safely. It operates reliably within a temperature range of -55°C to 150°C, suitable for demanding electrical environments and high-power applications.

With compact dimensions of 38.2 mm length, 25.5 mm width, and 9.1 mm height, this diode fits well into tight circuit layouts without compromising performance. Its RoHS compliance guarantees adherence to environmental standards, making it a sustainable choice for modern electronic designs.

Maximum continuous forward current: 50 A. Peak reverse repetitive voltage: 200 V. Isolated diode configuration with 4-pin ISOTOP package. Peak non-repetitive surge current: 750 A. Maximum forward voltage drop: 1.15 V. Peak reverse recovery time: 65 ns.

Operating temperature range: -55°C to 150°C. Dimensions: 38.2 mm x 25.5 mm x 9.1 mm. Complies with RoHS standards.

This diode is widely used in power electronics, industrial automation, and electronic component systems requiring efficient and reliable switching rectifiers. Its robust performance and compact size make it suitable for integration into power supply units, converters, and other electrical equipment.
