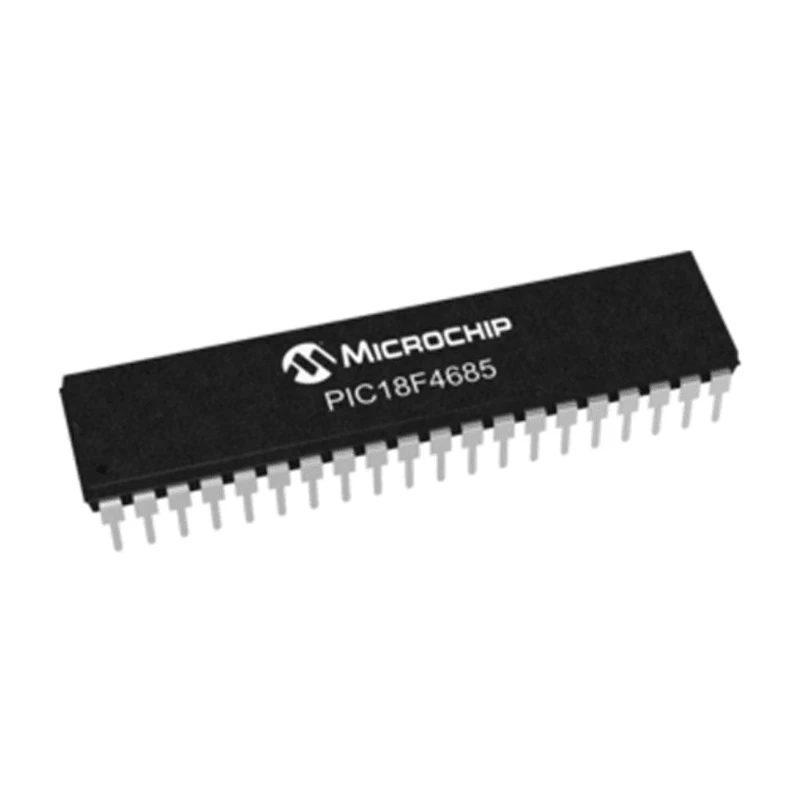

Microchip PIC18F4685-I/P 8-Bit PIC Microcontroller, 40 MHz, 96kB FLASH, PDIP, 40-Pin
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 53.21mm |
| Model | PIC18F4685-I/P |
| Width | 14.73mm |
| Mount Type | Surface |
| Series | PIC18F4685 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.33kB |
| Pin Count | 40 |
| Maximum Supply Voltage | 6V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 96kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 44 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 1.02kB |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- 8-bit PIC microcontroller with enhanced RISC architecture.
- 40 MHz maximum clock frequency ensures high-speed operation.
- PDIP package with 40 pins enables straightforward installation and soldering.
- 96 kB flash program memory allows for reliable and flexible code storage.
- Includes 3.33 kB RAM and 44 programmable I/Os for versatile interfacing.
- Supports 11 ADCs, 2 analogue comparators, and 4 timers for advanced control applications.
- Operates from 2 V to 6 V supply voltage for industrial flexibility.
- Maximum power dissipation of 800 mW for efficient performance.
Product Description
The Microchip PIC18F4685-I/P is a high-performance 8-bit microcontroller designed for industrial, laboratory, and embedded applications. Featuring a robust PIC core, this device offers superior computational speed, flexible memory options, and extensive interfacing capabilities.
Equipped with a maximum 40 MHz clock frequency, the PIC18F4685-I/P provides rapid operation and responsiveness for real-time processes. The microcontroller includes 96 kB of flash program memory, enabling complex software routines and firmware storage, alongside 3.33 kB of RAM for efficient data manipulation. Its 40-pin PDIP package offers ease of integration into a variety of PCB designs, with clear pin labeling and reliable mechanical stability during soldering and assembly.
For input and output applications, there are 44 programmable I/O pins, permitting connection to sensors, actuators, communication buses, and more. The device supports 11 ADCs with 10-bit resolution for precise analog-to-digital conversion, two built-in analogue comparators for signal detection, and four timers dedicated to accurate event management and scheduling.
Operating across a wide voltage range of 2 V to 6 V and with a maximum power dissipation of 800 mW, the microcontroller is suitable for demanding industrial environments that require reliable performance under varying supply conditions. The stated operating temperature range from -40°C to 85°C ensures the device remains stable in both refrigeration and elevated temperature scenarios.
Constructed for RISC instruction set architecture, the PIC18F4685-I/P enables efficient code execution and optimized program cycles. Its automotive standard is rated as 'No', focusing the product on non-automotive industrial and commercial uses. The flash memory technology simplifies updates and firmware management, making this microcontroller an ideal choice for a broad spectrum of control, automation, and instrumentation projects.
Common use cases include industrial automation systems, laboratory instrumentation controllers, process monitoring, networked sensor nodes, and commercial embedded systems.
Browse more Microchip PIC Microcontrollers and related semiconductor devices in the EnvMart electronics category to find solutions for industrial and laboratory application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Microchip PIC18F4685-I/P has a maximum clock frequency of 40 MHz, ensuring high-speed operation for various applications.
It features 96 kB of flash program memory, allowing for reliable and flexible code storage.
This microcontroller operates within a supply voltage range of 2 V to 6 V, making it suitable for various industrial applications.
The device includes 44 programmable I/O pins, enabling versatile interfacing with sensors and other components.
The dimensions of this microcontroller are 53.21 mm in length, 14.73 mm in width, and 4.95 mm in height.
It supports 11 ADCs with 10-bit resolution for precise analog-to-digital conversion.
The maximum power dissipation for the PIC18F4685-I/P is 800 mW, allowing for efficient performance.
It operates within a temperature range of -40°C to 85°C, ensuring stability in various environmental conditions.
The device includes four timers, which are dedicated to accurate event management and scheduling.
This microcontroller is constructed using a RISC instruction set architecture, optimizing program cycles and execution efficiency.
The country of origin for this microcontroller is Thailand.
This model is suitable for industrial automation systems, laboratory instrumentation controllers, and process monitoring, among other applications.
