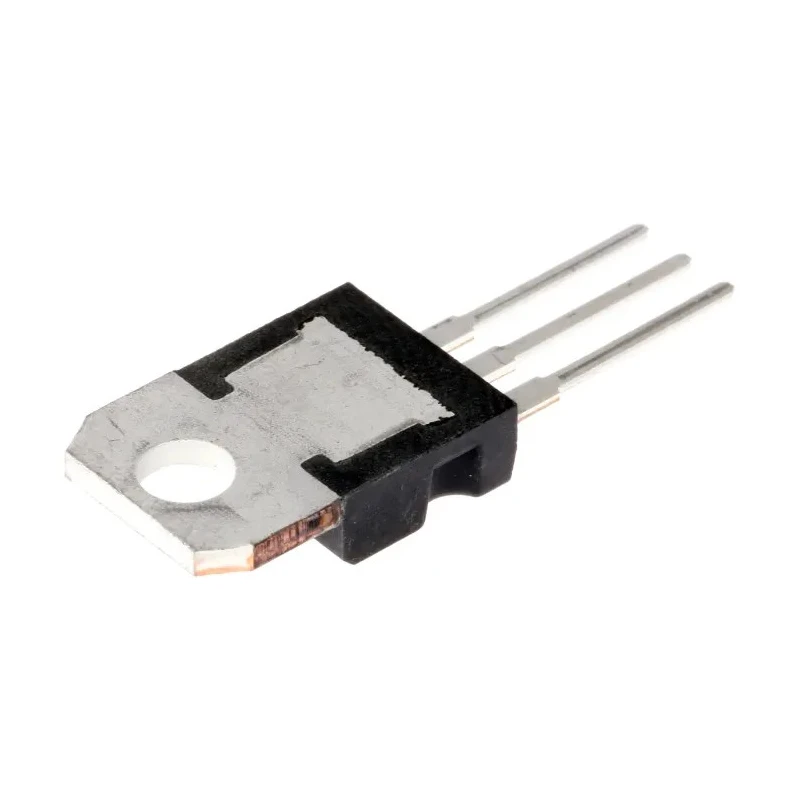

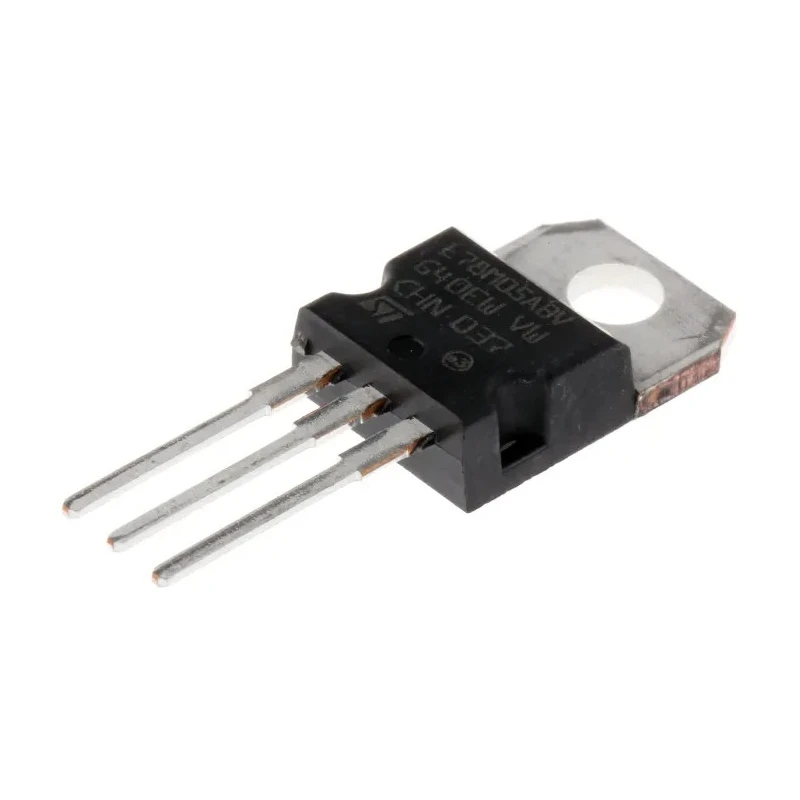

STMicroelectronics Linear Voltage Regulator TO-220 3-Pin 35V Input, 6mA Quiescent Current L78M05ABV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics, Voltage Regulator 35V TO-220 3-Pin RS Stock No |
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | L78M05ABV |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | L78Mxx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 6mA |
| Pin Count | 3 |
Key Features
- The device accepts a maximum input voltage of 35V, maintaining stable 5V output.
- It delivers up to 500mA output current with internal current limiting and thermal shutdown protection.
- Quiescent current is low at 6mA, enhancing energy efficiency in applications.
- Compact dimensions with 10.4mm length, 9.15mm height, and 4.6mm width facilitate space-saving installations.
- Designed for local on-card regulation and power distribution systems.
- Robust construction includes safe operating area protection ensuring device durability.
- No external components required unless voltage/current adjustment is desired.
- Maximum operating temperature rated at 125°C for reliable performance under thermal stress.
Product Description
STMicroelectronics L78M05ABV is a positive linear Voltage Regulator housed in a TO-220 3-pin through-hole package, supporting reliable power regulation up to 35V input voltage and providing a fixed 5V output voltage.
It features a quiescent current of only 6mA, making it efficient for use in a variety of electronic circuits, including local on-card regulation and distributed power systems.
The device provides up to 500mA of continuous output current with internal protections such as current limiting, thermal shutdown, and safe operating area safeguards, enhancing reliability across industrial and consumer applications.
With compact dimensions of 10.4mm length, 9.15mm height, and 4.6mm width, installation in space-constrained environments is optimized. The L78M series linear regulators from STMicroelectronics require no external components unless modifications to output parameters are needed.
This regulator is suitable for robust industrial, manufacturing, laboratory, and power management systems requiring steady and reliable 5V linear regulation. The device supports positive polarity voltage regulation with stable operation over - Operating Temperature - up to 125°C.
Its built-in protections improve system safety and device longevity in demanding power distribution scenarios. Compact TO-220 packaging enables easy integration on through-hole PCBs. Quiescent current of 6mA ensures low power dissipation and improved energy efficiency.
L78M05ABV is designed to simplify power design by eliminating need for complex external circuitry. Explore STMicroelectronics and related power management ICs in the EnvMart catalog for your electronics component sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 35V.
It can deliver up to 500mA of continuous output current.
The quiescent current is low at 6mA, enhancing energy efficiency in applications.
This model has dimensions of 10.4mm in length, 9.15mm in height, and 4.6mm in width.
The maximum operating temperature is rated at 125°C.
It is housed in a TO-220 3-pin through-hole package.
No external components are required unless voltage or current adjustment is desired.
The output voltage is positive polarity.
It is suitable for local on-card regulation and power distribution systems.
This model features internal current limiting, thermal shutdown, and safe operating area protection.
It belongs to the L78Mxx series of linear voltage regulators.
The country of origin for this product is India.
