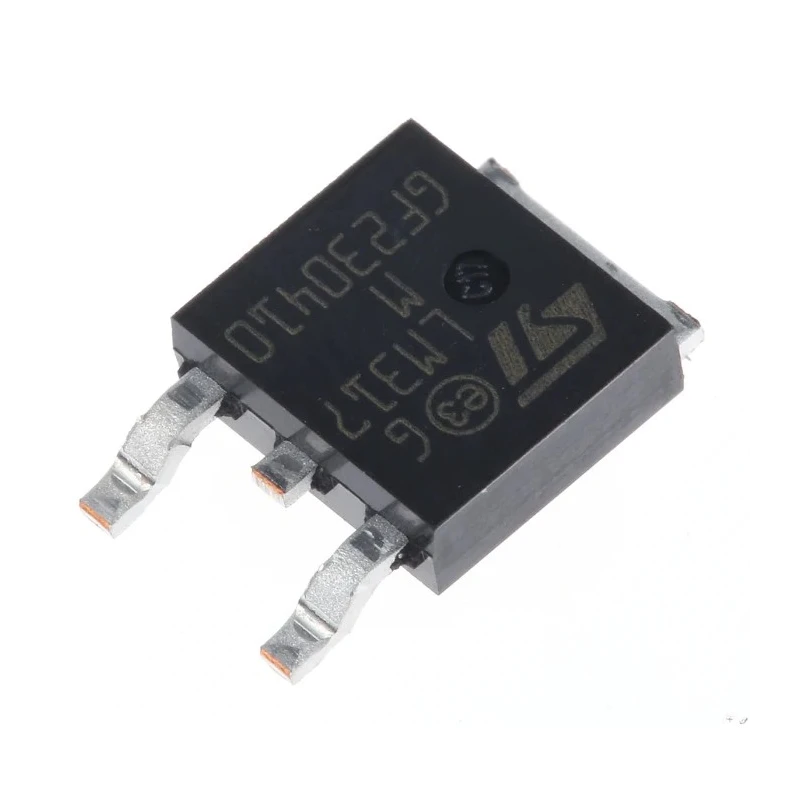

STMicroelectronics Linear Voltage Regulator 40V 3-Pin Adjustable Output LM317MDT-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics, Voltage Regulator 40V 3-Pin RS Stock No |
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.6mm |
| Model | LM317MDT-TR |
| Width | 6.2mm |
| Mount Type | Surface |
| Series | LM317 |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Output Voltage Range | 1.2 V to 37 V at 500 mA |
| Standards/Approvals | ECOPACK |
| Pin Count | 3 |
Key Features
- Operates with maximum input voltage rating of 40V.
- Adjustable output voltage range from 1.2 V to 37 V at 500 mA load current.
- Offers thermal overload protection and short circuit protection for reliable operation.
- Features line regulation of 0.01% and load regulation of 0.1% for stable voltage output.
- Compact surface mount package with dimensions 6.6mm length, 6.2mm width, and 2.4mm height.
- Complies with ECOPACK environmental standards for reduced hazardous substances.
- Suitable for industrial and electronic applications requiring precise voltage control.
- Wide operating temperature range up to 125°C for robust performance.
Product Description
STMicroelectronics LM317MDT-TR is a high-performance monolithic integrated circuit designed for use as a positive linear voltage regulator with adjustable output voltage. This 3-pin surface mount voltage regulator supports an input voltage up to 40V and provides a stable, adjustable output voltage ranging from 1.2 V to 37 V at a maximum load current of 500 mA.
The device includes advanced features such as thermal overload protection, short circuit protection, and safe area compensation, ensuring reliability and robustness in demanding industrial and electronic circuits. With a line regulation accuracy of 0.01% and load regulation of 0.1%, it delivers excellent voltage stability.
Encased in a compact surface mount package measuring 6.6 mm by 6.2 mm by 2.4 mm, the LM317MDT-TR is ideal for space-constrained designs. It also complies with ECOPACK standards to minimize environmental impact.
This voltage regulator is widely used in power management applications including laboratory instruments, industrial controls, consumer electronics, and embedded systems where precise voltage adjustment and stability are critical.
Operates with maximum input voltage rating of 40V. Adjustable output voltage range from 1.2 V to 37 V at 500 mA load current. Thermal overload and short circuit protection ensure device safety. Extremely low line and load regulation for precise voltage control.
Compact 3-pin surface mount package suitable for automated assembly. Compliant with ECOPACK environmental compatibility standards. Robust performance up to maximum operating temperature of 125°C. Ideal for industrial, laboratory, electronic component, and embedded power solutions.
Discover a wide range of power management solutions including Voltage Regulators at EnvMart for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 40V.
It provides an adjustable output voltage range from 1.2 V to 37 V at a maximum load current of 500 mA.
This voltage regulator has dimensions of 6.6 mm in length, 6.2 mm in width, and 2.4 mm in height.
The LM317MDT-TR operates at a maximum temperature of 125°C.
It comes in a compact 3-pin surface mount package, suitable for automated assembly.
The device includes thermal overload protection and short circuit protection for reliable operation.
It offers a line regulation accuracy of 0.01%.
The load regulation accuracy for this model is 0.1%.
Yes, it complies with ECOPACK environmental standards to minimize hazardous substances.
This voltage regulator is suitable for industrial controls, laboratory instruments, consumer electronics, and embedded systems requiring precise voltage control.
It has a total of 3 pins.
The LM317MDT-TR has a positive polarity.
