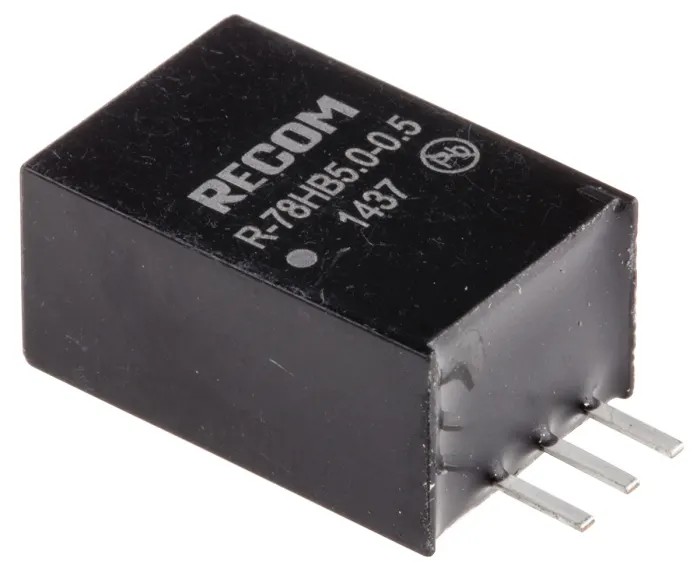

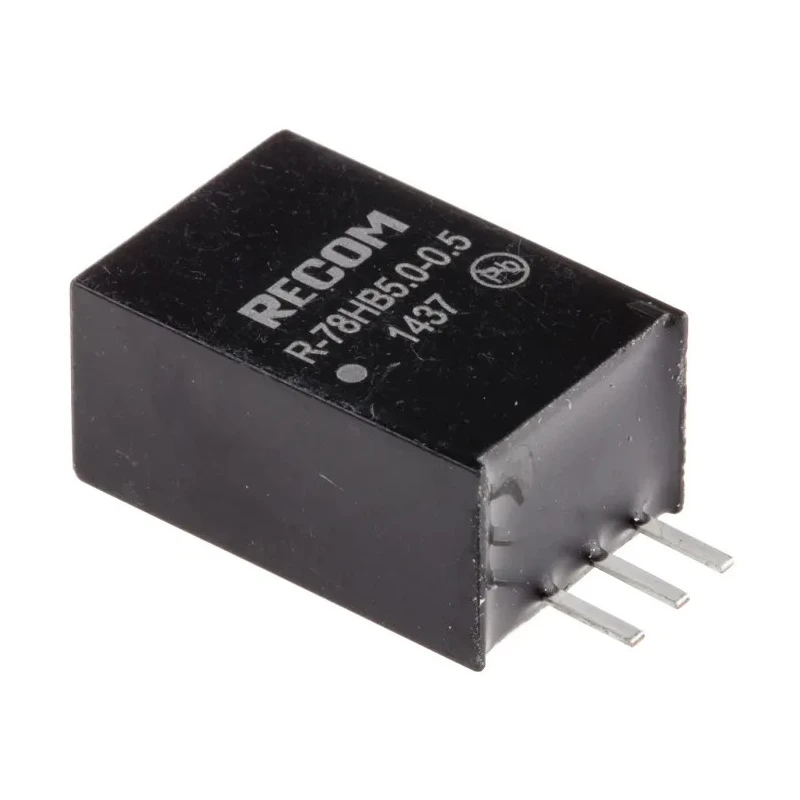

Recom Switching Regulator Through Hole 5V DC Output 72V DC Max 500mA 2.5W, SIP, R-78HB5.0-0.5
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / Switching Regulators Recom Switching Regulator, Through Hole, 5V dc |
| Brand | Recom |
| Power | 2.5W |
| Efficiency | 81% |
| Length | 11.5mm |
| Model | R-78HB5.0-0.5 |
| Depth | 17.5mm |
| Gross Weight | 4g |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | R-78HB |
| Output Current | 500mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | ±0.6 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 7395000h |
| Number of outputs | 1 |
| Ripple and Noise | 20mV Pk-Pk |
| Maximum Input Voltage | 72V dc |
| Line Regulation | ±1 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 5V dc |
Key Features
- Provides regulated 5V DC output with input range from 9V to 72V DC.
- Designed for through-hole mounting and SIP package, ideal for PCB assembly.
- Supports continuous short-circuit protection and thermal shutdown for circuit safety.
- High efficiency up to 81% minimizes heat dissipation, eliminating the need for heat sinks.
- Output current rated at 500mA, maximizing compatibility with a wide range of loads.
- Integrated 1µF capacitor for low ripple and noiseless signal transmission.
- Flame retardant construction ensures enhanced device safety.
Product Description
The Recom R-78HB5.0-0.5 Switching Regulator is a compact, high-efficiency DC-DC voltage converter designed to provide a steady 5V DC output from a wide input range of 9V to 72V DC. This device is suited for electronic circuit applications where a reliable, regulated 5V supply is essential.
With a power rating of 2.5W and maximum output current of 500mA, this switching regulator is optimized for both instrumentation and automotive electronics. The through-hole mounting style and SIP (Single Inline Package) format enable rapid and secure PCB integration, making it suitable for industrial and laboratory builds.
The high efficiency of up to 81% ensures minimal heat generation during operation, reducing cooling requirements and energy consumption. Additionally, its flame retardant housing and integrated continuous short circuit protection and thermal shutdown mechanisms enhance operational safety and device longevity.

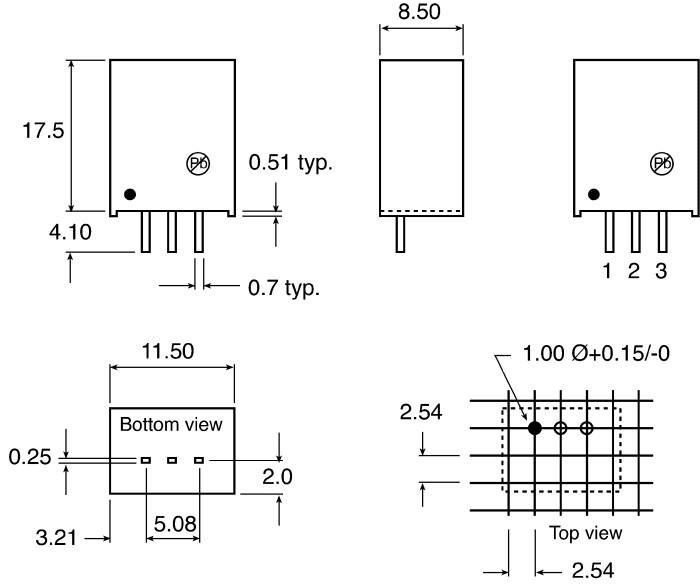

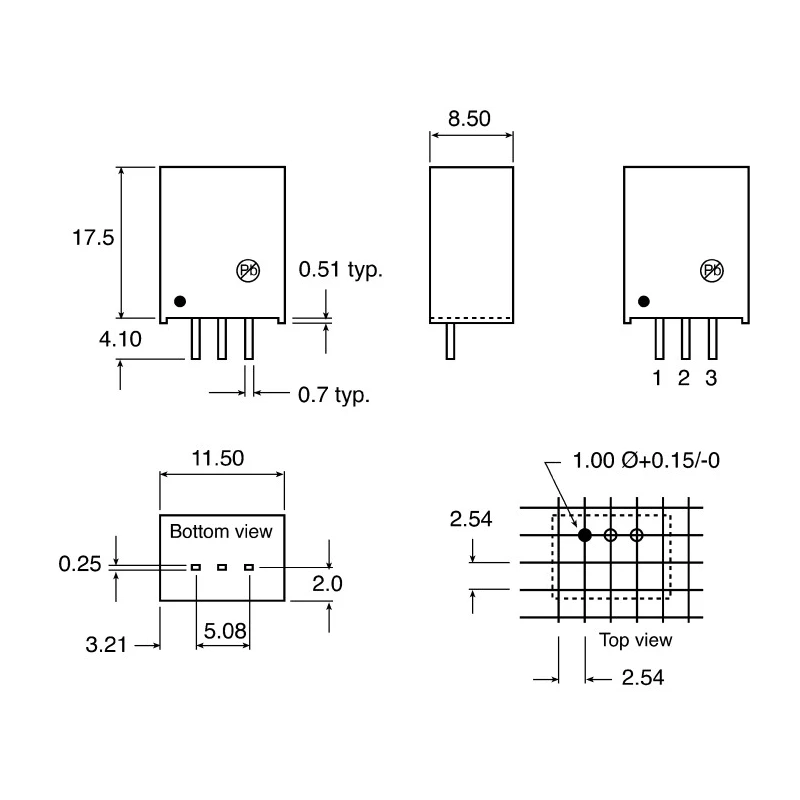

Its dimensions (11.5mm length x 8.5mm width x 17.5mm height) allow for installation within limited PCB space, and the output ripple is kept low by an integrated 1µF capacitor. The regulator maintains stability under varying load conditions, with line regulation of ±1% and load regulation of ±0.6%.
Applications include automotive, industrial, and instrumentation equipment requiring robust voltage conversion. The product is well-suited for scenarios demanding high reliability and operational safety, such as circuit boards in sensors, controllers, and control panels.
The Recom R-78HB5.0-0.5 features RoHS compliance and an MTBF of 7,395,000 hours, testifying to its reliability and quality for commercial and technical use. Its protective plastic body prevents electrical shocks and contributes to its high safety rating.
This device is widely used in environments where vibration resistance and secure connections are valuable, and its flame retardant properties ensure regulatory compliance. Typical industrial use cases span manufacturing automation, automotive electronics, laboratory instrumentation, and commercial circuit design.
Explore more innovative power regulation solutions in the Semiconductor and Voltage Regulator category on EnvMart, or browse the Recom brand for similar high-reliability DC-DC converters.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 9V to 72V DC.
The maximum output current of this unit is 500mA.
It has an efficiency rating of up to 81%.
The dimensions are 11.5mm in length, 8.5mm in width, and 17.5mm in height.
The output voltage is a regulated 5V DC.
This model is designed for through-hole mounting.
The load regulation is specified at ±0.6%.
The line regulation is ±1%.
It includes continuous short-circuit protection and thermal shutdown for safety.
The output ripple is kept to 20mV peak-to-peak.
The maximum operating temperature is 85°C.
Yes, this device is RoHS compliant.
