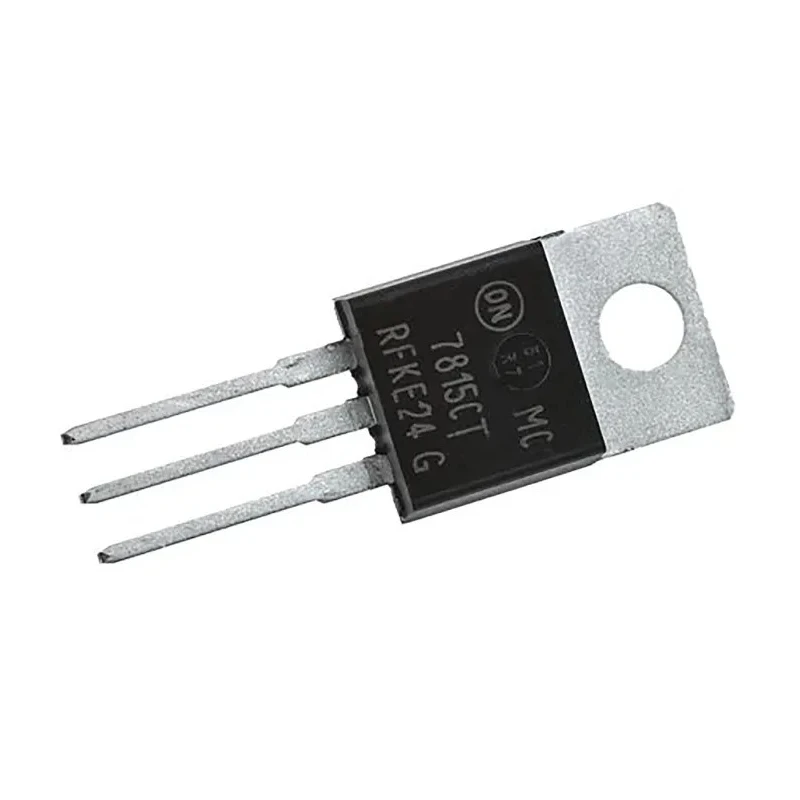

onsemi 5-Channel Linear Voltage Regulator 1A 15V TO-220 3-Pin MC7815CTG
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | Regulators onsemi MC7815CTG, 5-Channel Linear, Voltage Regulator, 1 A, 15V, TO-2 |
| Brand | onsemi |
| Height | 30.02mm |
| Length | 10.28mm |
| Model | MC7815CTG |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | MC78xx |
| Output Current | 1A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Load Regulation | 55 mV |
| Minimum Operating Temperature | 0°C |
| Polarity | Positive |
| Regulator Type | Linear |
| Number of outputs | 5 |
| Maximum Input Voltage | 35V |
| Output Voltage | 15V |
| Quiescent Current | 3.5mA |
| Line Regulation | 30 mV |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 15V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Delivers a fixed 15V regulated output for electronic applications.
- Supports up to 1 ampere output current, suitable for demanding circuits.
- TO-220 package with through-hole mounting allows easy PCB integration.
- Complies with RoHS standards for environmental safety.
- Built-in internal current limiting and thermal overload protection ensures reliability.
- Positive polarity and linear regulation for stable output voltage.
- AEC-Q100 qualified for automotive and industrial use.
- Five output channels for enhanced flexibility in circuit design.
Product Description
onsemi MC7815CTG is a high-performance 5-channel linear voltage regulator designed for applications requiring a stable and reliable 15V output. This device can supply up to 1 ampere of output current, making it ideal for medium and high-current electronic systems. The TO-220 3-pin package design allows for effective heat dissipation and simple installation using through-hole technology.
This voltage regulator provides a fixed, positive 15V output, ensuring consistent voltage levels even in the presence of line and load fluctuations. With advanced features such as internal current limiting, thermal overload protection, and safe area compensation, the MC7815CTG delivers long-lasting performance and robust circuit protection.
Delivers a fixed 15V regulated output for electronic applications. Supports up to 1 ampere output current, suitable for demanding circuits. TO-220 package with through-hole mounting allows easy PCB integration. Complies with RoHS standards for environmental safety.
Built-in internal current limiting and thermal overload protection ensures reliability. Positive polarity and linear regulation for stable output voltage. AEC-Q100 qualified for automotive and industrial use. Five output channels for enhanced flexibility in circuit design.
The MC7815CTG is part of the onsemi MC78xx series, a widely recognized standard for linear voltage regulation in diverse environments, from industrial control panels to automotive and laboratory power supplies. Its wide input voltage range (15V to 35V) and tolerance to harsh conditions (operating from 0°C up to 125°C) guarantee dependable service across a variety of platforms.
Typical applications include power management for analog and digital circuits, industrial automation controls, embedded system power rails, and automotive electronic modules. Its compliance with RoHS and AEC-Q100 standards aligns with requirements in modern, environmentally-conscious, and safety-critical domains.
Choose onsemi MC7815CTG for your next project and experience stable, high-quality voltage regulation from one of the industry leaders in semiconductor technology. To discover more products in the Voltage Regulator IC range or explore the complete onsemi portfolio, browse the corresponding EnvMart category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a fixed output voltage of 15V.
It supports a maximum output current of 1 ampere.
The MC7815CTG comes in a TO-220 package type, designed for through-hole mounting.
The maximum input voltage for the MC7815CTG is 35V.
This unit has a height of 30.02mm, a length of 10.28mm, and a width of 4.82mm.
It operates within a temperature range of 0°C to 125°C.
It includes built-in internal current limiting and thermal overload protection for enhanced reliability.
This voltage regulator has five output channels.
Yes, it complies with RoHS standards for environmental safety.
The line regulation for the MC7815CTG is specified at 30 mV.
It is AEC-Q100 qualified, making it suitable for automotive applications.
The quiescent current for this model is 3.5mA.
