Vishay Multiplexer 4 CMOS Quad SPST, 16-Pin SOIC DG412LEDY-GE3

Free Delivery in India | Lowest Global Shipping Charges

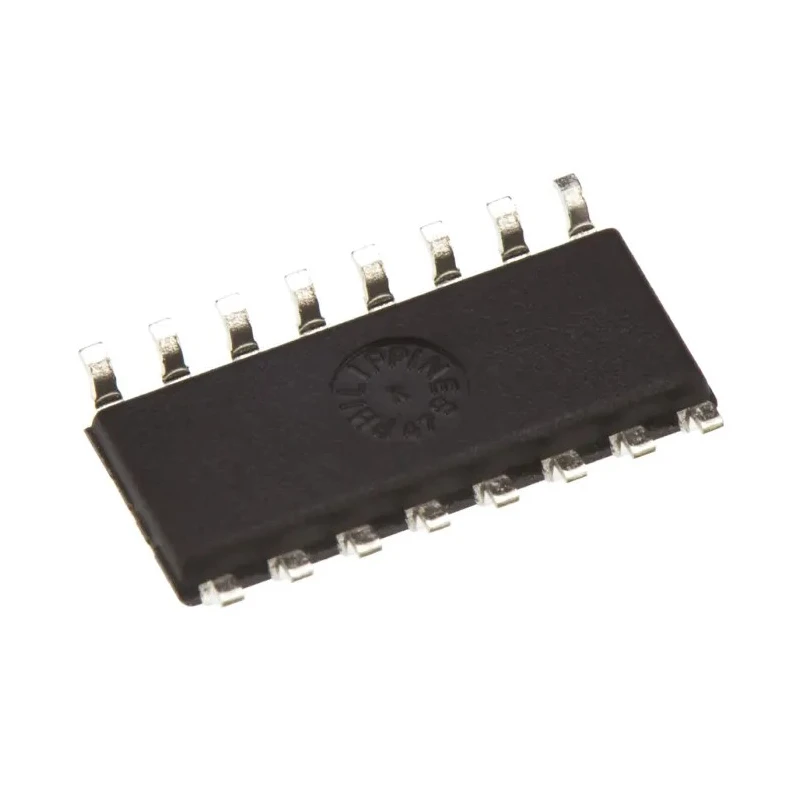

Vishay Multiplexer 4 CMOS Quad SPST, 16-Pin SOIC DG412LEDY-GE3

Name: Vishay Multiplexer 4 CMOS Quad SPST, 16-Pin SOIC DG412LEDY-GE3
Brand: Vishay
SKU: 142876
Price: 1.9 USD
Availability: InStock



Category Multiplexer & Demultiplexer ICs Brand Vishay Condition New

Specifications

Country of Origin	Philippines
Brand	Vishay
Height	1.55mm
Length	10mm
Model	DG412LEDY-GE3
Width	4mm
Mount Type	Surface
Output type	CMOS/TTL
Series	DG412LE
Configuration	Quad SPST
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Pin Count	16
Number of Elements per Chip	4
Maximum Supply Voltage	16V
Logic Family	CMOS
Minimum Supply Voltage	-3V
Multiplexer/Demultiplexer	Multiplexer
Maximum On State Resistance	75Ω

Key Features

Employs CMOS logic family for low power consumption.
Includes four single-pole single-throw analogue switches per chip.
Suitable for a wide supply voltage range from -3V to 16V.
Offers maximum on-state resistance of 75 ohms ensuring accurate switching performance.
Operates reliably across a temperature range from -40°C to 85°C.
Compact physical dimensions with a package size of 10 mm length and 4 mm width.
Surface-mount package type SOIC for efficient PCB integration.
Typical applications include test equipment, computer peripherals, and portable instruments.

Product Description

Vishay DG412LEDY-GE3 is a multiplexer IC that integrates four CMOS analogue switches configured as Quad SPST in a 16-Pin SOIC surface mount package. This semiconductor from Vishay belongs to the DG412LE series and leverages CMOS logic family technology to provide minimal power consumption with high switching accuracy.

Its supply voltage range from -3V to 16V allows flexible operation in diverse electronic circuits. The device exhibits a maximum on-state resistance of 75 ohms, which enhances signal integrity especially in analog switching tasks. Operating temperature spans from -40°C up to 85°C, allowing use in varied industrial and commercial environments.

The compact dimensions, including a length of 10 mm, width of 4 mm, and height of 1.55 mm, facilitate easy PCB mounting using surface mount technology with the SOIC package type. Applications range from test equipment to computer peripherals and portable instrumentation that require dependable analogue switching functions.

Employs CMOS logic family for power efficiency and precision. Features four single-pole single-throw analogue switches per chip. Supports a broad operating voltage range from -3V to 16V. Maximum on-state resistance of 75 ohms ensures signal fidelity.

Temperature tolerance from -40°C to 85°C suits harsh environments. Compact 16-pin SOIC surface mount packaging for space-saving designs. Versatile use in test, measurement, and computer peripheral devices. Manufactured in the Philippines with high quality standards.

This multiplexer IC is ideal for industries including electronics manufacturing, laboratory instrumentation, computer hardware, and portable device production. Vishay offers robust and efficient solutions to optimize analogue signal routing while reducing power consumption in complex circuits.

Discover more high-performance semiconductor components and explore Vishay's extensive product catalog at EnvMart for your electronics design and production needs.

Explore more products in our Multiplexer & Demultiplexer ICs category.
