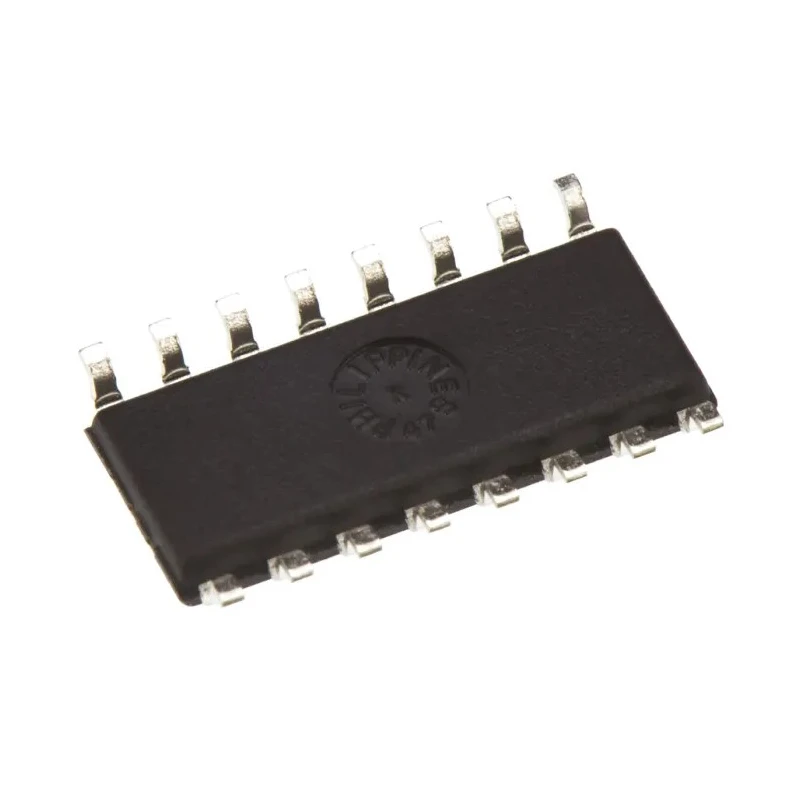

Vishay CMOS Multiplexer, 4 Elements per Chip, Quad SPST Configuration, 16-Pin SOIC DG412LEDY-GE3

Vishay DG412LEDY-GE3 is a high accuracy CMOS multiplexer designed for use in analogue switching applications. This quad SPST switch IC provides low power consumption with excellent precision, making it suited for industrial, laboratory, computer peripheral, and portable electronic instrument applications.

The 16-pin SOIC surface mount package offers compactness with a typical package size of 10mm length, 4mm width, and 1.55mm height. Its low on-state resistance of 75 ohms minimizes signal degradation and power loss, enabling efficient switching performance.

Operating voltage ranges from a minimum of -3 volts to a maximum of 16 volts, allowing versatile integration in various electronic systems. The device supports operation over a broad temperature range from -40°C to 85°C, suitable for demanding environmental conditions.

This multiplexer includes 4 individual switch elements integrated on a single chip, ideal for multiplexing or switching analogue signals in precision testing and measurement devices. Its CMOS/TTL output compatibility enhances its applicability across diverse logic systems.

Designed to support single-supply operation, DG412LEDY-GE3 is also optimized for portable and battery-powered instruments requiring low power consumption. Quad SPST analogue switch configuration. Low on-state resistance of 75 ohms for signal integrity.

Wide supply voltage range from -3V to 16V. Temperature range from -40°C to 85°C for industrial environments. Compact 16-pin SOIC surface mount package. Suitable for test equipment, computer peripherals, and portable instruments.

Manufactured in the Philippines. Explore more semiconductor and multiplexer ICs at EnvMart for your industrial and electronic component needs.
