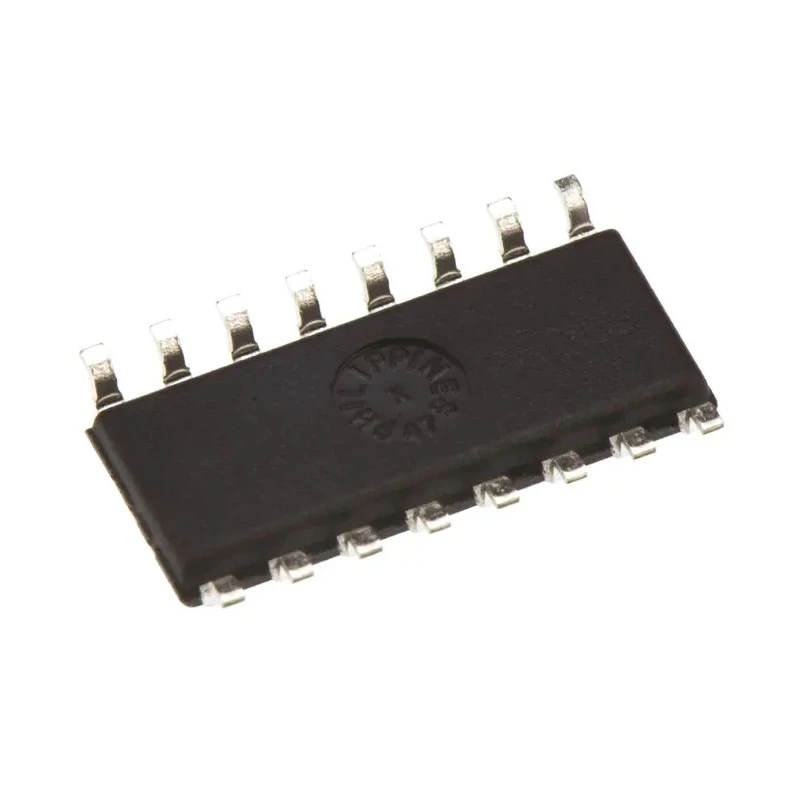

Vishay Multiplexer 4 CMOS Quad SPST, 16-Pin SOIC, 3-16 V Supply DG411LEDY-GE3
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG411LEDY-GE3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG411 |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 16V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 3V |
| Maximum On State Resistance | 75Ω |
Key Features
- Operates with a supply voltage from 3 V to 16 V for versatile power options.
- Low on-state resistance of 75 ohms ensures minimal signal loss.
- Four independent SPST switches provide flexible signal routing.
- Compatible with CMOS and TTL logic inputs.
- Designed for surface mounting with a small-outline integrated circuit package.
- Rated for operation between -40 °C and 85 °C for industrial temperature applications.
- Compliant with RoHS environmental standards.
- Suitable for multiplexing analogue audio, sensor signals, and data acquisition systems.
Product Description
Vishay DG411LEDY-GE3 is a four-channel analogue multiplexer switch designed to operate from 3 V minimum to 16 V maximum supply, ideal for mixed-signal circuit applications. This device integrates four independent SPST CMOS switches within a 16-pin SOIC surface-mount package, enabling efficient signal routing in compact designs.
The low on-state resistance of 75 ohms reduces insertion loss, which is critical for maintaining signal integrity in audio and sensor multiplexing applications. Its compatibility with CMOS and TTL logic levels enhances control flexibility.
Rated to withstand industrial temperature ranges from -40 °C to 85 °C, this multiplexer is suitable for diverse environments outside automotive contexts. Compliant with RoHS standards, the device restricts the use of hazardous materials during manufacturing for environmental safety.
Operates at 3 V to 16 V supply voltage. Four independent single-pole single-throw (SPST) switches. 16-pin small-outline IC package for automated PCB assembly. Low on-state resistance of 75 Ω for reliable signal switching.
Industrial temperature range from -40 °C to 85 °C. RoHS compliant manufacturing process.
This multiplexer is extensively used in industrial instrumentation, laboratory equipment, audio signal routing, test jigs, and portable electronics requiring low-voltage signal control.
It is packaged as a surface-mount SOIC device to facilitate modern automated soldering processes in circuit board manufacturing. For users requiring multiplexers compliant with automotive standards, alternative products should be considered.
Browse more semiconductor multiplexers and demultiplexers on EnvMart for comprehensive industrial and electronic solutions.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay DG411LEDY-GE3 operates with a supply voltage ranging from 3 V to 16 V.
It has a low on-state resistance of 75 ohms, which helps minimize signal loss.
This multiplexer features four independent single-pole single-throw (SPST) switches.
It is compatible with both CMOS and TTL logic inputs, providing flexible control options.
The operating temperature range is from -40 °C to 85 °C, suitable for industrial applications.
It is packaged in a 16-pin small-outline integrated circuit (SOIC) for surface mounting.
This multiplexer is suitable for applications such as industrial instrumentation, audio signal routing, and data acquisition systems.
The dimensions of the DG411LEDY-GE3 are 10 mm in length, 4 mm in width, and 1.55 mm in height.
Yes, it is compliant with RoHS environmental standards, restricting the use of hazardous materials.
The DG411LEDY-GE3 integrates four elements per chip, corresponding to its four SPST switches.
The maximum supply voltage for this multiplexer is 16 V.
The minimum operating temperature is -40 °C, making it suitable for various industrial environments.
