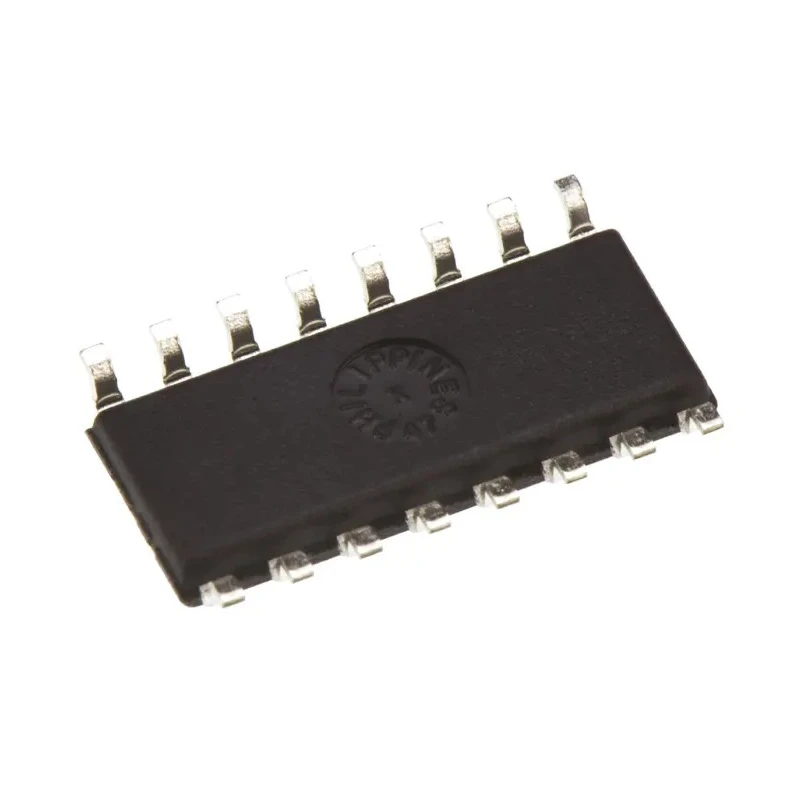

Vishay Multiplexer 4 CMOS Quad SPST 16-Pin SOIC Logic IC DG411LEDY-GE3

Free Delivery in India | Lowest Global Shipping Charges

Vishay Multiplexer 4 CMOS Quad SPST 16-Pin SOIC Logic IC DG411LEDY-GE3

Name: Vishay Multiplexer 4 CMOS Quad SPST 16-Pin SOIC Logic IC DG411LEDY-GE3
Brand: Vishay
SKU: 142864
Price: 1.99 USD
Availability: InStock



Category Multiplexer & Demultiplexer ICs Brand Vishay Condition New

Specifications

Country of Origin	Philippines
Brand	Vishay
Height	1.55mm
Length	10mm
Model	DG411LEDY-GE3
Width	4mm
Mount Type	Surface
Output type	CMOS/TTL
Series	DG411
Configuration	Quad SPST
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	16
Number of Elements per Chip	4
Maximum Supply Voltage	16V
Logic Family	CMOS
Minimum Supply Voltage	3V
Maximum On State Resistance	75Ω

Key Features

Operates with a supply voltage range from 3V to 16V, suitable for diverse circuit requirements.
Features low on-state resistance of 75 ohms to minimize signal loss.
Includes four independent single pole single throw (SPST) switches enabling versatile channel selection.
Compatible with CMOS and TTL logic levels, ensuring broad interface compatibility.
Designed for use in multiplexing analogue audio, sensor signals, and test jigs.
Operates reliably within a temperature range from -40°C to 85°C, suitable for industrial environments.
Compact SOIC package supports automated PCB assembly and space-constrained designs.
Meets RoHS environmental standards, assuring restriction of hazardous substances.

Product Description

Vishay DG411LEDY-GE3 is a 4 CMOS Quad SPST multiplexer integrated circuit supplied in a 16-pin SOIC surface-mount package. It supports operation within a supply voltage range of 3V to 16V, making it adaptable for various mixed-signal circuit designs. This device provides four independent analogue switches that allow flexible signal routing in applications requiring selectable signal paths.

The device features a low on-state resistance of 75 ohms, minimizing insertion loss and preserving signal integrity. It is compatible with CMOS and TTL output logic levels, ensuring ease of integration with common digital circuits.

The multiplexer is designed for industrial, laboratory, and commercial uses including multiplexing analogue audio and sensor inputs, use in data acquisition front ends, instrumentation, and low-voltage switching in portable electronics. It operates reliably within the industrial temperature range of -40°C to 85°C.

The compact SOIC package facilitates surface-mount assembly techniques, ideal for high-density printed circuit board layouts. The device conforms to RoHS standards, ensuring environmentally compliant manufacturing without restricted substances.

Operates within 3V to 16V supply voltage range. Four independent SPST switches provide flexible analogue signal routing. Low on-state resistance of 75 ohms reduces signal loss. Compatible with CMOS/TTL logic output levels.

Surface-mounted SOIC 16-pin package suitable for automated PCB assembly. Operating temperature range from -40°C to 85°C for industrial environments. RoHS compliant for environmental safety.

This multiplexer is ideal for use in industrial instrumentation, laboratory equipment, telecommunications, data acquisition systems, and portable electronic devices requiring reliable signal multiplexing. The compact footprint and robust electrical characteristics make it a versatile component in mixed-signal and digital applications.

Explore more semiconductor components and multiplexer ICs in the Electronics & Electricals category at EnvMart for your design and manufacturing needs.

Explore more products in our Multiplexer & Demultiplexer ICs category.
