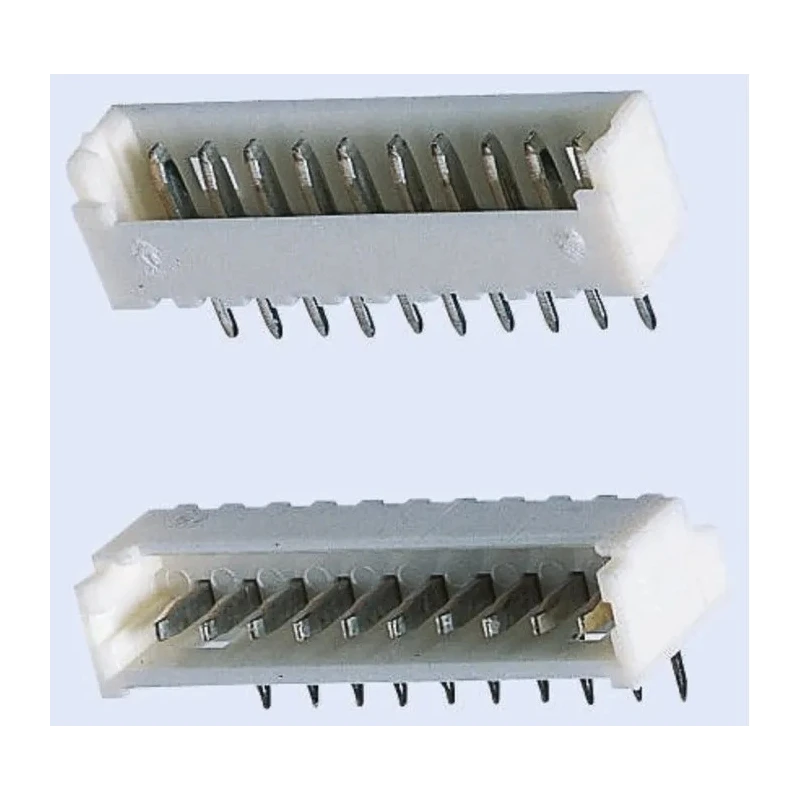

Molex PCB Header PicoBlade Series Right Angle Through Hole 15 Contact 1.25 mm Pitch 1 Row Shrouded 53048-1510
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | PicoBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.3mm |
Key Features
- Compact 1.25 mm pitch design supports 1 A current capability.
- Right angle, through hole mounting enhances PCB space utilization.
- Nylon housing with shrouded design ensures durability and reliable mating.
- Phosphor bronze contacts with tin plating provide excellent conductivity.
- Friction locking mechanism prevents accidental unmating due to vibration or handling.
- Operating temperature range from -40°C to 85°C for versatile applications.
- Tail pin length of 2.3 mm supports secure solder termination.
- Designed for high-density wire-to-board interconnects in automotive and industrial systems.
Product Description
Molex 53048-1510 PicoBlade Series Right Angle Through Hole PCB Header provides a compact, high-density connector solution with 15 contacts arranged in a single right angle row with 1.25 mm pitch. The connector features a shrouded nylon housing that enhances durability and secure mating in PCB applications requiring space-saving and reliability.
This header is designed for wire-to-board connections with a current rating of 1 A and voltage rating of 125 V, suitable for automotive alarms, car audio, industrial process controls, and medical monitoring equipment.
The phosphor bronze contacts plated with tin offer excellent conductivity and corrosion resistance. A friction locking mechanism with locking windows ensures a secure connection and prevents accidental disconnects, especially in environments subjected to vibration or handling stress.
The right angle through hole mount type supports stable soldering with a 2.3 mm tail pin length and includes features that act as strain relief to prevent solder joint cracking. Operating temperature ranges from -40°C to 85°C, allowing use in diverse industrial and commercial environments.
Typical industrial applications include high-density harness systems and compact PCB layouts in automotive, medical instrumentation, and consumer electronics sectors. Compact 1.25 mm pitch design supports 1 A current capability.
Shrouded nylon housing for durability and secure mating. Right angle through hole mounting optimizes PCB space. Phosphor bronze contacts with tin plating ensure conductivity. Friction locking windows provide secure connections.
Operating temperature from -40°C to 85°C accommodates varied environments. 2.3 mm tail pin length enhances solder termination stability. Suitable for automotive, industrial, and medical electronic applications. Explore more in our Electronics & Electricals category for advanced PCB connectors and headers to meet your industrial and laboratory needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1 A, making it suitable for various applications that require this level of current capacity.
The contacts in this header are arranged with a pitch size of 1.25 mm, allowing for high-density connections on the PCB.
The maximum operating temperature for this unit is 85°C, allowing it to function effectively in a range of environments.
It features a right angle through hole mounting type, which optimizes PCB space and supports stable soldering.
The housing is made of nylon, while the contacts are constructed from phosphor bronze with tin plating for enhanced conductivity.
This model has a total of 15 contacts, arranged in a single row, designed for efficient wire-to-board connections.
The tail pin length is 2.3 mm, which supports secure solder termination during installation.
The voltage rating for this PCB header is 125 V, making it suitable for various electronic applications.
Yes, it features a friction locking mechanism with locking windows to prevent accidental unmating due to vibration or handling.
The operating temperature range is from -40°C to 85°C, allowing for versatile applications in different environments.
It is designed for high-density wire-to-board interconnects in automotive, industrial, and medical electronic applications.
This model is shrouded, which enhances durability and ensures reliable mating in PCB applications.
