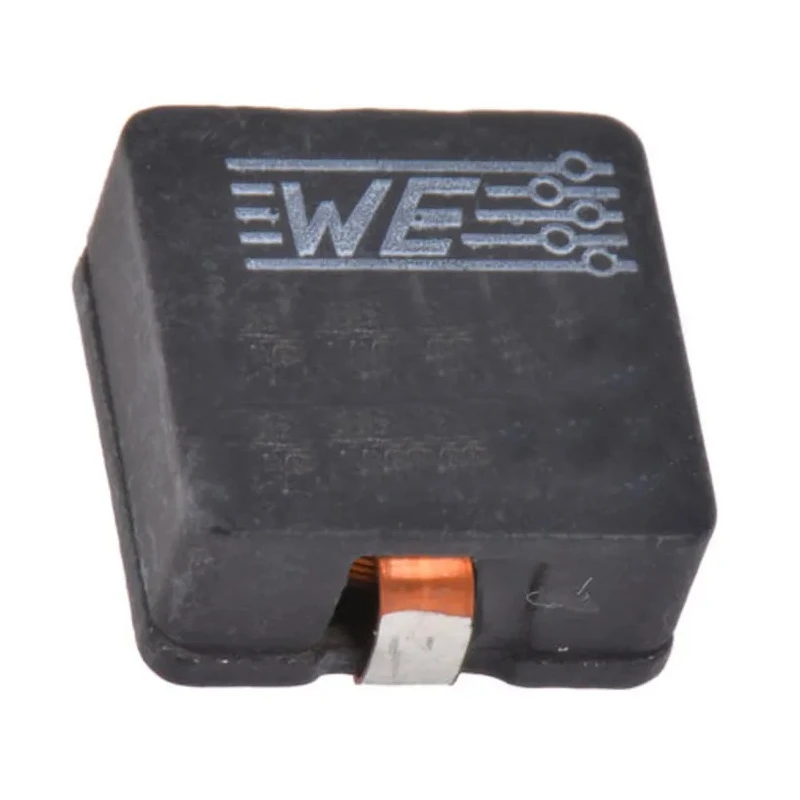

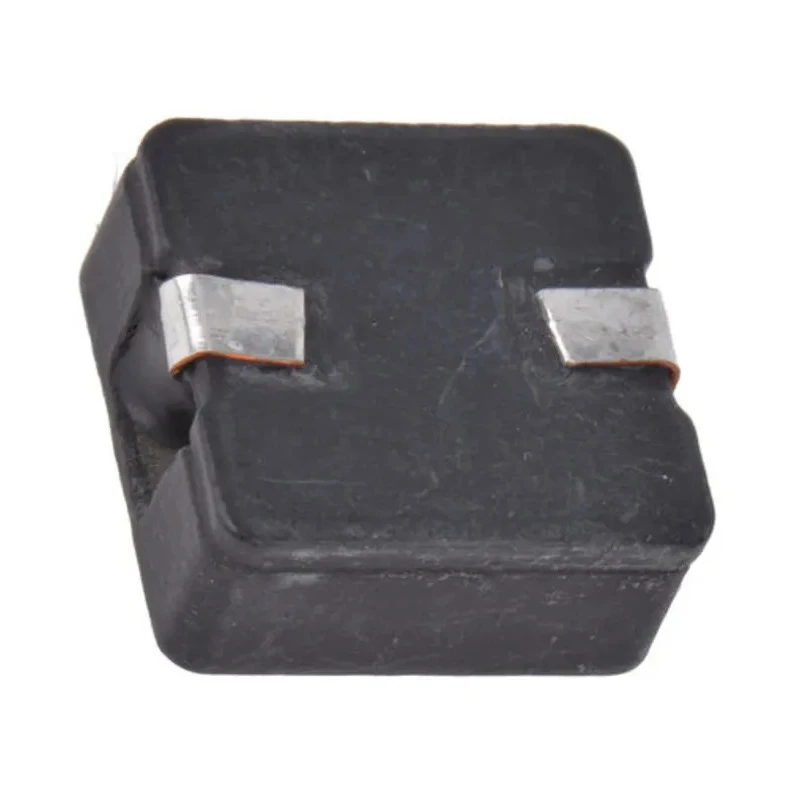

Wurth Elektronik Shielded Wirewound Surface Mount Inductor 15 μH Manganese Zinc Ferrite Core 74435571500
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 8.9mm |
| Length | 18.3mm |
| Depth | 18.2mm |
| Packaging | Tape & Reel |
| Series | WE-HCI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Manganese Zinc Ferrite |
| Inductance | 15μH |
| Standards/Approvals | JEDEC JS709B, REACH, RoHS, IEC 61249-2-21 |
| Package/Case | 1890 |
| Maximum DC Current | 14A |
| Pin Count | 2 |
| Maximum DC Resistance | 9mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 14MHz |
| Inductor Construction | Flat Wire Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- This surface mount inductor features a flat wire winding construction for efficient magnetic performance.
- The inductor is magnetically shielded to minimize electromagnetic interference.
- It supports a maximum DC current of 14A, suitable for high current applications.
- With a maximum DC resistance of only 9 mΩ, it ensures minimal power loss during operation.
- The device complies with automotive standard AEC-Q200, ensuring reliability in automotive environments.
- Its operating temperature range extends from -40°C to 125°C for diverse environmental conditions.
- The package type is 1890 tape and reel, facilitating easy PCB assembly.
- The termination style is surface mount, compatible with modern automated mounting processes.
Product Description
Wurth Elektronik 74435571500 is a shielded wirewound surface mount inductor with a manganese zinc ferrite core, providing an inductance value of 15 μH. Designed with a flat wire winding construction, this inductor offers magnetic shielding to reduce interference, making it suitable for high-performance electronic applications.
It supports a maximum DC current of 14A with a very low DC resistance of 9 mΩ, which reduces power losses and improves efficiency. The device is built to withstand operating temperatures from -40°C up to 125°C, meeting demanding industrial and automotive requirements.
This inductor comes in an 1890 tape and reel package, optimized for surface mount technology (SMT) assembly processes. It is fully compliant with automotive standard AEC-Q200 and meets RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 compliances, ensuring environmental safety and reliability.
Wurth Elektronik's WE-HCI series inductor is an excellent choice for use in industrial computers, laptops, graphic cards, motherboards, DC-DC converters, filters, high current switching regulators, and polyphase switching regulators. Its magnetically shielded design and flat wire coil construction minimize stray fields and ensure consistent performance.
This surface mount inductor is constructed using a manganese zinc ferrite core for stable inductance. Its flat wire winding and molded construction provide durability and reliable operation. Shielding reduces electromagnetic interference, suitable for sensitive electronic circuits.
High current capability with low resistance ensures power efficiency. Packaged in tape and reel format for automated PCB mounting. Meets automotive and international standards for quality and safety.
Choose this Wurth Elektronik inductor for robust, efficient, and shielded inductance in demanding electronic and industrial applications. Explore more Surface Mount Inductors and related electronic components in the EnvMart catalogue for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this surface mount inductor is 15 μH.
It supports a maximum DC current of 14A, making it suitable for high current applications.
The maximum DC resistance is 9 mΩ, which helps minimize power loss during operation.
The operating temperature range extends from -40°C to 125°C, allowing it to function in diverse environmental conditions.
This inductor uses a manganese zinc ferrite core, which provides stable inductance.
It is packaged in an 1890 tape and reel format, facilitating easy PCB assembly.
It complies with automotive standard AEC-Q200, as well as RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards.
The maximum self-resonant frequency is 14MHz, which is relevant for high-frequency applications.
The termination style is surface mount, making it compatible with modern automated mounting processes.
The height of this model is 8.9mm.
The length is 18.3mm and the depth is 18.2mm.
This inductor is suitable for applications such as industrial computers, laptops, graphic cards, motherboards, DC-DC converters, and high current switching regulators.
