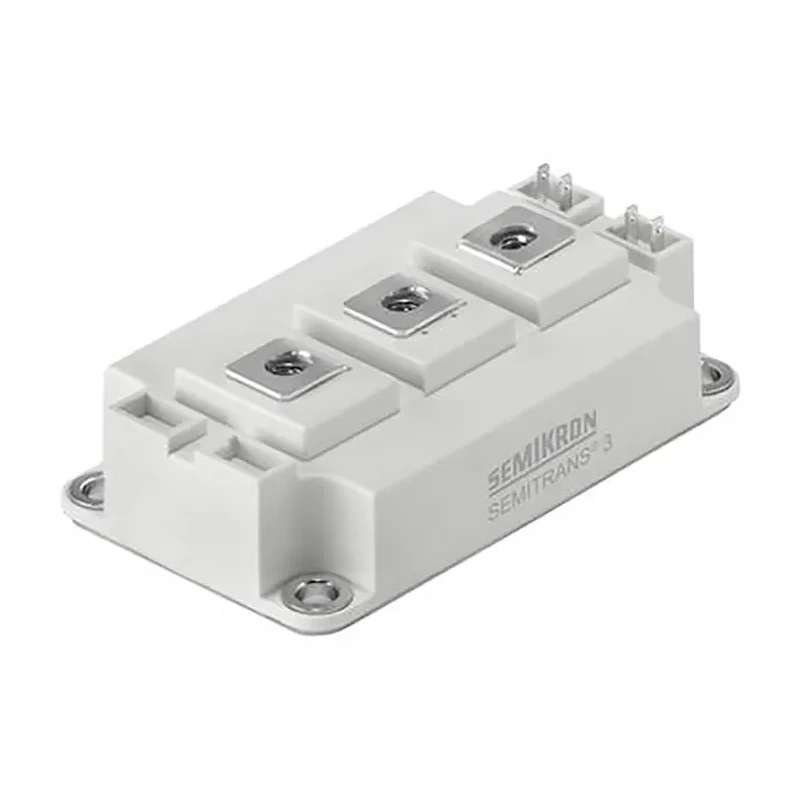

Semikron Danfoss N-Channel IGBT Module 422 A 1200 V 7-Pin SEMITRANS Screw Mount SKM300GB12E4

Semikron Danfoss SKM300GB12E4 N-Channel IGBT Module is a high-performance power semiconductor device ideal for demanding industrial applications. This module integrates two series-connected insulated gate bipolar transistors (IGBTs) in a compact SEMITOP package, designed for effective power switching and high efficiency.

With a maximum continuous collector current rating of 422 A and a collector emitter voltage of 1200 V, this IGBT module excels in applications such as AC inverter motor drives, uninterruptible power supplies, and diverse electronic power control systems. It features a 7-pin SEMITRANS package and screw mount type that ensures secure and reliable installation in electronic circuits.

The module supports switching frequencies up to 12 kHz and operates reliably up to a maximum temperature of 175°C, making it suitable for harsh environmental conditions. Its insulated copper baseplate uses Direct Bonded Copper (DBC) technology to enhance heat dissipation and thermal management, ensuring stable operation over extended periods.

Designed with an N-channel configuration and maximum gate emitter voltage of 20 V, this device offers fast switching capability and low saturation voltage of 2.1 V to maximize efficiency and minimize losses.

Measuring 106.4 mm in length, 61.4 mm in width, and 30.5 mm in height, the SKM300GB12E4 is engineered for integration into sophisticated power systems requiring compact yet reliable components.

Supports continuous collector current up to 422 A. Rated for maximum collector emitter voltage of 1200 V. Includes two transistors forming a half bridge configuration. Uses a 7-pin SEMITRANS package with screw mount installation.

Operates at switching speeds up to 12 kHz. Maximum operating temperature of 175°C for durability. Insulated copper baseplate with Direct Bonded Copper technology. Compact dimensions: 106.4 mm x 61.4 mm x 30.5 mm. Manufactured in Slovakia with stringent quality standards.

This module is a reliable component option for use in industrial electronics, power conditioning units, manufacturing automation, HVAC systems, and renewable energy inverters. Its advanced design allows engineers to develop high-efficiency systems that demand robust and fast switching semiconductor devices.

Explore the extensive range of IGBT Modules and semiconductors at EnvMart for enhanced industrial automation and power electronics solutions.
