| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.8mm |
| Length | 1.7mm |
| Model | 2SC4617TLQ |
| Width | 0.9mm |
| Mount Type | Surface |
| Series | 2SC4617 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-416 (SC-75A) |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 120 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 7V |
| Maximum Collector Base Voltage VCBO | 60V |
| Maximum Power Dissipation Pd | 150mW |
| Maximum DC Collector Current Idc | 150mA |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 180MHz |

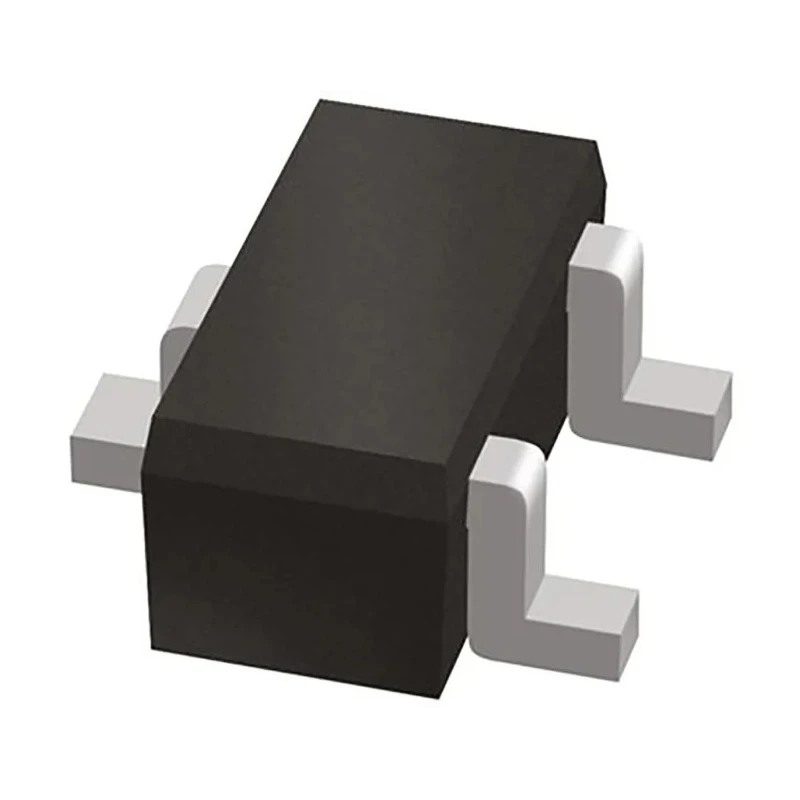

The ROHM 2SC4617TLQ is an NPN small-signal transistor optimized for surface mount technology with a 3-pin SOT-416 (SC-75A) package. It provides a maximum DC collector current of 150 mA and collector emitter voltage rating of 50 V, making it suitable for low power amplification and switching tasks in electronic circuits.
This transistor offers a high transition frequency of 180 MHz and a minimum DC current gain (hFE) of 120, contributing to effective signal amplification in high-frequency applications. Its maximum power dissipation is rated at 150 mW, supporting reliable operation within power limits.
The compact dimensions (1.7 mm length, 0.9 mm width, 0.8 mm height) make it ideal for PCB designs requiring space-saving components. The device operates reliably up to 150°C, suitable for use in various industrial and electronic environments.
Featuring a transistor polarity of NPN and a single transistor configuration, it supports a wide range of electronic applications such as consumer electronics, communication devices, and signal conditioning.
Other electrical limits include a maximum collector-base voltage of 60 V and maximum emitter-base voltage of 7 V. The ROHM 2SC4617TLQ is an excellent choice for engineers needing a robust, compact, and efficient transistor for surface mount applications in industrial, laboratory, and consumer electronic sectors.
Features a 3-pin SOT-416 package optimized for surface mount technology. Maximum collector current of 150 mA and voltage rating of 50 V. High transition frequency enables high-speed operation up to 180 MHz. Compact size ensures easy integration into dense PCB layouts.
Reliable operation up to 150°C maximum temperature rating. Suitable for signal amplification and switching in low power applications. Single NPN transistor configuration for versatile circuit designs. Commonly used in electronic components, power connectors, and semiconductor applications.
