STMicroelectronics 650 V 12 A Schottky Diode 2-Pin Through Hole TO-220AC STPSC12065DY

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 650 V 12 A Schottky Diode 2-Pin Through Hole TO-220AC STPSC12065DY

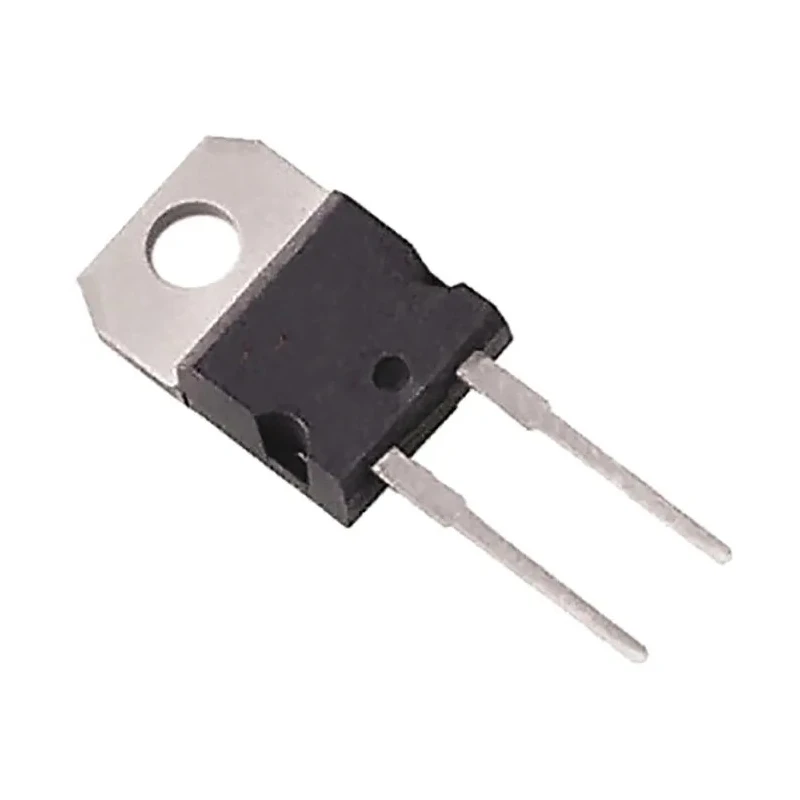

Name: STMicroelectronics 650 V 12 A Schottky Diode 2-Pin Through Hole TO-220AC STPSC12065DY
Brand: STMicroelectronics
SKU: 141819
Price: 5.44 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	15.75mm
Length	10.4mm
Model	STPSC12065DY
Width	4.6mm
Mount Type	Through Hole
Series	STPSC12065-Y
Maximum Operating Temperature	175°C
Package Type	TO-220AC
Minimum Operating Temperature	-40°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	12A
Peak Reverse Repetitive Voltage Vrrm	650V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	1mA
Peak Non-Repetitive Forward Surge Current Ifsm	220A
Maximum Forward Voltage Vf	1.65V

Key Features

Maximum continuous forward current is 12 A ensuring efficient current handling.
Peak reverse repetitive voltage rating of 650 V for reliable operation under high voltage.
High surge forward current capacity of 220 A for transient conditions.
Low forward voltage drop of 1.65 V reduces power losses.
Operates within temperature range from -40°C to 175°C suitable for automotive environments.
Configured as a single diode with two pins in TO-220AC package type.
Automotive grade diode compliant with AEC-Q101 standard.
Low peak reverse current of 1 mA minimizes leakage losses.

Product Description

STMicroelectronics STPSC12065DY is a Silicon Carbide (SiC) Schottky diode built for high-efficiency power rectification in automotive and industrial applications. Featuring a 2-pin TO-220AC through hole package, the diode supports a maximum continuous forward current of 12 A and a peak reverse repetitive voltage of 650 V. The automotive grade qualification under AEC-Q101 assures robustness and long-term reliability in harsh environments.

This diode boasts a low forward voltage drop of 1.65 V and a peak surge forward current rating of 220 A, which allows for minimal conduction losses and high surge tolerance. Its defined operating temperature range spans from -40°C to 175°C, accommodating demanding thermal conditions. With its single diode configuration and compact form factor, it is ideal for space-constrained power modules.

The STPSC12065DY reduces electromagnetic interference, simplifying compliance with EMC standards and expediting product certification processes. These characteristics provide system designers with efficient, reliable rectification that reduces converter size and cost.

Its silicon carbide construction introduces natural high robustness and negligible reverse recovery effects, ensuring fast switching and minimal losses across switching cycles. This diode is especially suited for automotive power electronics, industrial power supplies, renewable energy systems, and other high-voltage DC power conversion operations.

Maximum continuous forward current of 12 A for efficient power handling. Peak reverse voltage rating of 650 V ensures operational safety. Low forward voltage reduces conduction losses. Wide temperature range enhances reliability in tough environments.

Automotive qualification (AEC-Q101) guarantees quality and durability. Compact TO-220AC package for robust mounting options. Low peak reverse current minimizes leakage power losses. Supports high surge currents for transient conditions.

This STMicroelectronics Schottky diode STPSC12065DY is a vital component in power semiconductor categories including automotive electronics, industrial automation, and energy conversion, available for efficient integration and performance on EnvMart.

Explore more products in our Schottky Diodes & Rectifiers category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum continuous forward current for the STMicroelectronics STPSC12065DY is 12 A, ensuring efficient current handling in applications.

This model has a peak reverse repetitive voltage rating of 650 V, which ensures reliable operation under high voltage conditions.

The forward voltage drop for this diode is 1.65 V, which helps to reduce power losses during operation.

It operates within a temperature range from -40°C to 175°C, making it suitable for automotive environments and other demanding applications.

This diode is configured in a TO-220AC package type, which is a through hole mount design.

The peak non-repetitive forward surge current capacity of this diode is 220 A, allowing it to handle transient conditions effectively.

Yes, the STPSC12065DY is compliant with the AEC-Q101 automotive standard, ensuring its robustness and reliability in automotive applications.

The peak reverse current for the STPSC12065DY is 1 mA, which minimizes leakage losses during operation.

The dimensions of this diode are 15.75 mm in height, 10.4 mm in length, and 4.6 mm in width.

The STPSC12065DY is configured as a single diode, which is common for rectification applications.

This diode is particularly suited for automotive power electronics, industrial power supplies, and renewable energy systems, among other high-voltage DC power conversion operations.

The country of origin for this diode is India.
