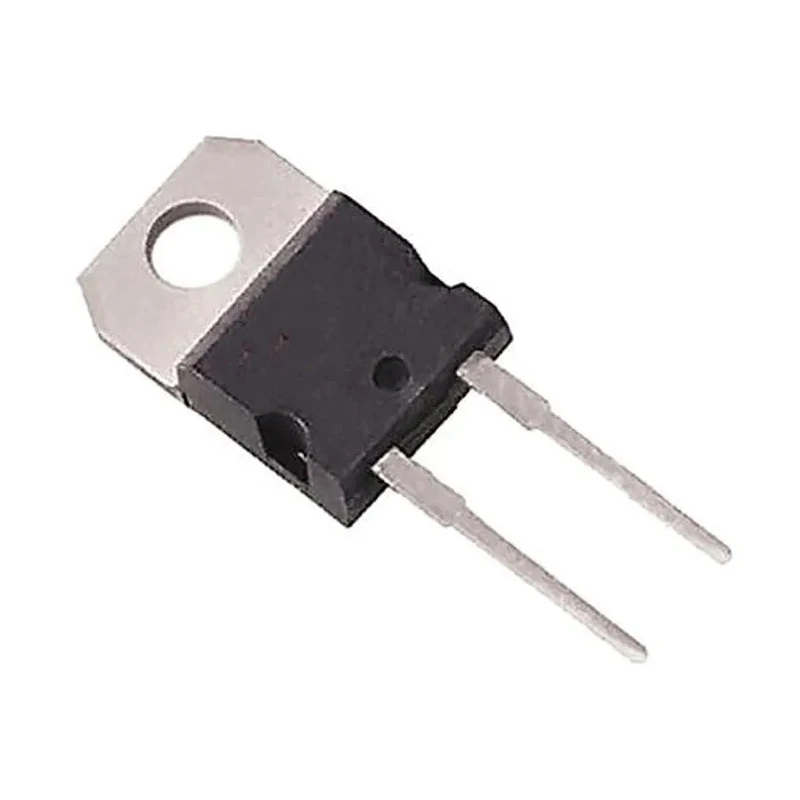

STMicroelectronics 650 V 20 A Silicon Carbide Schottky Diode 2-Pin Through Hole TO-220AC STPSC20065DI
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.75mm |
| Brand | STMicroelectronics |
| Height | 15.9mm |
| Length | 10.4mm |
| Model | STPSC20065DI |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STPSC20065 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | Epoxy meets UL 94, V0, ECOPACK2 component |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 1.65V |
Key Features
- This diode offers ultra-high forward surge capability for demanding applications.
- The package is a durable TO-220AC with through-hole mount type for easy PCB integration.
- It features a maximum forward voltage drop of 1.65 V for energy-efficient rectification.
- The device operates reliably over a wide temperature range from -40°C to 175°C.
- Its peak reverse repetitive voltage is 650 V ensuring robust blocking performance.
- The diode configuration is single with 2 pins designed for rectifier use.
- Built with epoxy rated UL 94 V0 and conforming to ECOPACK2 standards for safety and environmental compliance.
- Its switching behavior is independent of temperature, ideal for power factor correction applications.
Product Description
STMicroelectronics STPSC20065DI is a Silicon Carbide (SiC) Schottky Diode designed for high efficiency power conversion and rectification. It features a two-pin through-hole TO-220AC package, suitable for mounting in industrial and electronic circuit boards.
This high-performance diode is rated for a maximum continuous forward current of 20 A and a peak reverse repetitive voltage of 650 V, making it ideal for use in power supply units, motor drives, and power factor correction circuits.
The diode offers a low forward voltage drop of 1.65 V to minimize power loss and improve thermal performance. Designed for operation from -40°C up to 175°C, it meets stringent automotive and industrial temperature requirements.
The epoxy encapsulation complies with UL 94 V0 flammability standards and ECOPACK2 environmental norms, ensuring safety and reliability in demanding environments. Ultra-high forward surge current capacity up to 400 A for transient conditions.
Single diode configuration optimized for efficient rectification. Switching characteristics independent of temperature enhance stability in variable conditions. Epoxy packaging ensures robustness and compliance with international safety standards.
Designed for power electronics applications in industrial, automotive, and manufacturing sectors. Mount type: Through Hole TO-220AC package for easy and secure installation. This Schottky Diode is widely used in industrial, power conversion, and electronic manufacturing applications, offering high efficiency and reliability.
Explore related semiconductor components and power rectifiers at EnvMart for your electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 20 A.
This diode has a peak reverse repetitive voltage rating of 650 V.
It features a maximum forward voltage drop of 1.65 V for energy-efficient rectification.
The diode operates reliably over a wide temperature range from -40°C to 175°C.
This model comes in a TO-220AC package with a through-hole mount type for easy PCB integration.
The peak non-repetitive forward surge current for this diode is rated at 400 A.
The epoxy encapsulation meets UL 94 V0 flammability standards and conforms to ECOPACK2 environmental norms.
This diode has a single configuration with 2 pins.
It is a Schottky type rectifier, optimized for efficient rectification.
The dimensions are 15.9 mm in height, 4.6 mm in width, and 10.4 mm in length.
This model is widely used in power supply units, motor drives, and power factor correction circuits.
The country of origin for this diode is India.
