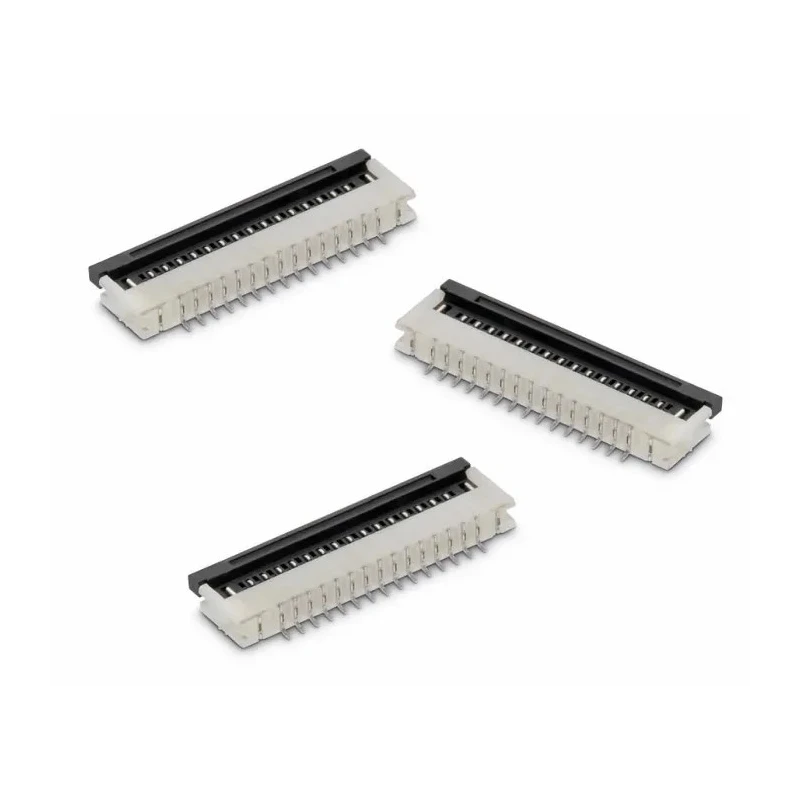

Wurth Elektronik WR-FPC 1 mm Pitch 30 Way Horizontal Male FPC Connector ZIF Bottom Contact 686130148922

Wurth Elektronik 686130148922 is a 1 mm pitch, 30 way horizontal male FPC connector with ZIF bottom contact termination designed for high-density, secure electronic connections. This FPC connector utilizes a flip-lock hinge actuator to firmly secure flexible flat cables or printed circuits directly to the connector terminals, eliminating the need for an additional mating connector.

Constructed from phosphor bronze contacts that are plated with tin over nickel, the connector ensures reliable electrical conductivity and corrosion resistance. The polyamide housing provides a robust yet lightweight and compact form factor, suitable for space-constrained PCB assemblies.

With a surface mount mounting type and a horizontal orientation, this connector supports 1 amp current and 100 VAC voltage operation, suitable for a variety of electronic applications. It features a single row layout with 30 contacts, applying ZIF (Zero Insertion Force) technology to minimize stress on cables during insertion and removal, which enhances durability and longevity.

The operating temperature range from -40°C to 105°C makes it suitable for demanding environments encountered in industrial, communication, and consumer electronics uses. A built-in locking mechanism securely retains the cable in place, preventing accidental disconnections, which is critical in compact devices such as small displays and keyboards.

This product is manufactured in China without specific standards or approvals cited but conforms to the industrial requirements for FPC connectors. It comes supplied typically on reels to facilitate high-efficiency automated assembly processes.

This connector is designed for surface mount applications with a bottom contact type. Constructed using phosphor bronze contacts plated with tin over nickel for durability. Supports a current of 1 amp and voltage of 100 VAC for reliable electrical performance.

Operates in a wide temperature range from -40°C to 105°C for versatile use. The housing is made of polyamide, providing a lightweight and space-saving design. Features a horizontal orientation and includes a locking mechanism for secure connections.

Single row connector with a flip-lock hinge actuator securing the FPC/FFC cable. Ideal for applications requiring connections to small displays or keyboards in miniaturized electronics. Manufactured in China, meeting quality standards without specific approvals listed.

Perfect for industrial, telecommunications, computing, and consumer electronics applications, this FPC connector offers a durable, efficient solution for board-to-flexible cable connections, supporting the miniaturization and high-density interconnection demands of modern electronics.
