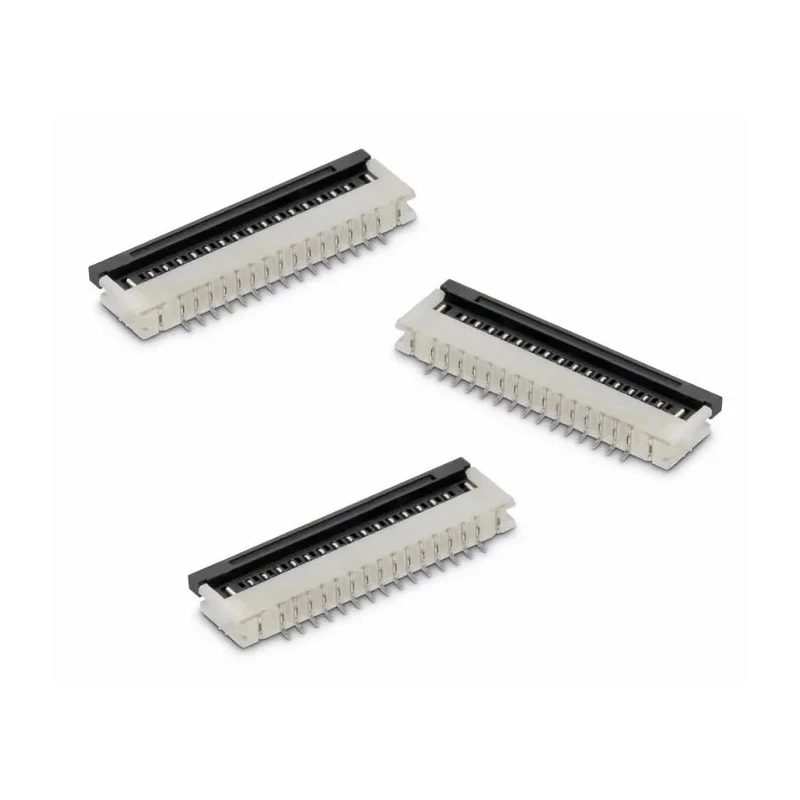

Wurth Elektronik WR-FPC 1 mm Pitch 28 Way Horizontal Female FPC Connector, Solder 686128148922

Wurth Elektronik 686128148922 WR-FPC 1 mm Pitch 28 Way Horizontal Female FPC Connector with Solder Termination is designed for high-density, secure wire to board connections in miniaturized electronic applications. Featuring bottom contact configuration and a hinged flip-lock actuator, this FPC ZIF connector facilitates reliable and cost-effective connections without the need for a mating connector.

Constructed with phosphor bronze contacts plated with tin over nickel, the connector ensures excellent electrical performance and durability. Its polyamide housing provides robust mechanical strength while maintaining a low profile and lightweight design. The surface mount style allows for easy PCB integration with solder retention locking the connector during soldering processes.

The connector allows operation within a wide temperature range from -40°C to 105°C and supports currents up to 1 A at a voltage of 100 VAC, making it suitable for diverse electronic assembly environments. ZIF insertion force eliminates cable damage during mating, with the locking mechanism enhancing connection security against vibration and physical stress.

Typical industrial applications include connection to small display screens, flexible printed circuits for keyboards, and various compact electronic devices requiring reliable, secure, and space-saving interconnections. The single row layout with 28 contacts at 1 mm pitch ensures precise and stable data transmission in sensitive electronic assemblies.

Features 28 contacts arranged in a single row with 1 mm pitch spacing. Constructed with phosphor bronze contacts plated with tin over nickel for reliable conductivity. Employs a flip-lock hinged actuator for secure cable retention and easy insertion.

Connector orientation is horizontal with bottom contact position suitable for surface mounting. Maintains operation between -40°C and 105°C temperature range for durable use. Supports 1 A current with voltage rating up to 100 VAC.

Housing made of polyamide material offering robust mechanical stability. Locking mechanism included to ensure connection integrity during use. Ideal for connecting small displays or keyboards in compact electronic assemblies.
