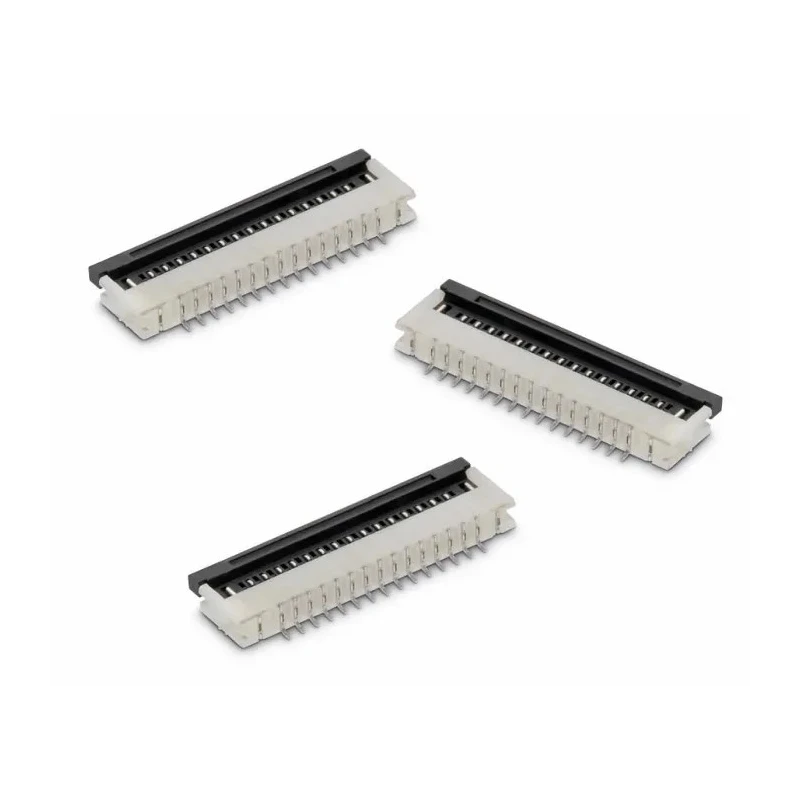

Wurth Elektronik WR-FPC 1 mm Pitch 15 Way Horizontal Female FPC Connector, ZIF Bottom Contact 686115148922

Wurth Elektronik 686115148922 1 mm Pitch 15 Way Horizontal Female FPC Connector is an SMT ZIF connector featuring a bottom contact configuration with a hinged flip-lock actuator to secure flat flexible cables efficiently. The connectors offer a low-profile and space-saving design which meets the increasing demand for high density and secure electrical connections in miniaturised electronic devices.

Constructed with phosphor bronze contacts plated with tin over nickel, this connector guarantees reliable electrical performance and durability. It supports a current of 1 Ampere and functions within a wide operating temperature range of -40°C to 105°C, making it suitable for harsh industrial and commercial environments.

The polyamide 6T housing contributes to its lightweight and rugged build. The hinged flip-lock actuator enables a tool-free and secure cable locking, enhancing the connector's reliability in various applications.

This 15-contact female FPC connector with a 1 mm pitch and horizontal orientation is ideal for surface mounting on PCBs. It is especially recommended for applications such as small display connections, keyboards, and other compact electronic assemblies requiring dependable wiring solutions.

The solder retention feature helps secure the connector during the solder process, ensuring robustness in manufacturing and operation. Although compliant with no specific standards or approvals, the connector is engineered to meet industrial quality and performance expectations.

Features a 1 mm pitch for compact placing on PCBs. Contains 15 female contacts for reliable signal transmission. Utilizes phosphor bronze contact material for durability. Supports a current rating of 1 Ampere. Incorporates a hinged flip-lock actuator for secure cable locking.

Has a low profile and lightweight polyamide 6T housing. Operates within temperature range of -40°C to 105°C. Contact plating employs tin over nickel for corrosion resistance. Suitable for horizontal orientation with surface mount technology.

Designed for applications requiring high-density secure connections. This connector is well suited for industrial, electronic manufacturing, test and measurement, and telecommunications equipment. Explore more high-quality FPC Connectors and electronic components on EnvMart for your industrial and commercial electrical needs.
