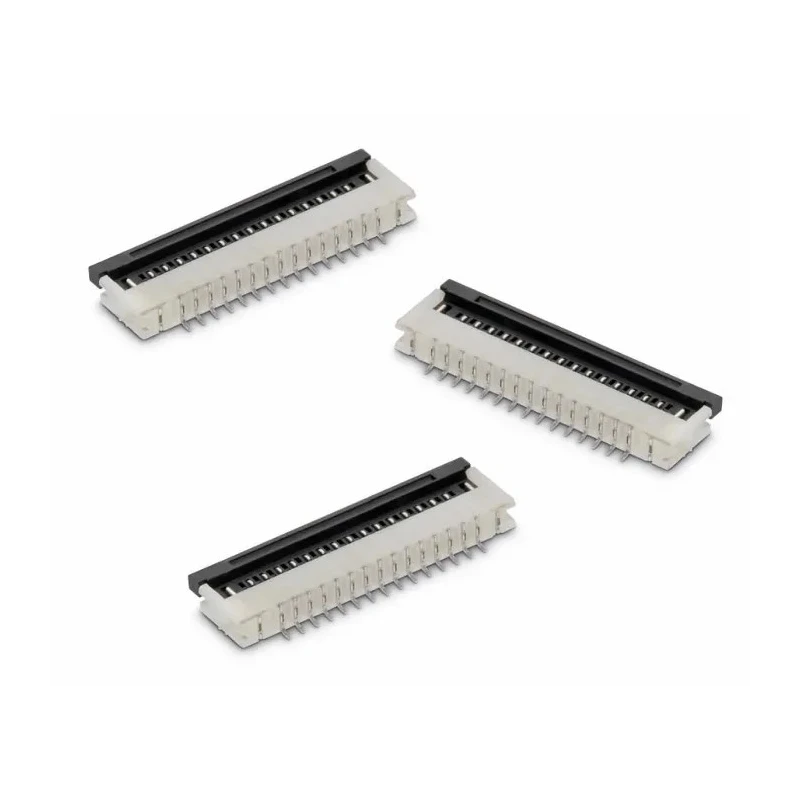

Wurth Elektronik WR-FPC 1 mm Pitch 26 Way Horizontal Female FPC Connector, Solder 686126148922

Wurth Elektronik 686126148922 is a 26 Way Horizontal Female FPC Connector with a 1 mm pitch designed for surface mount assembly. It uses a bottom contact position with a solder termination type. The connector features a hinged flip-lock actuator that enables Zero Insertion Force (ZIF), ensuring easy and secure cable insertion without damage. It is constructed using phosphor bronze contacts plated with tin over nickel and housed in high-quality polyamide material.

This FPC Connector supports an operating current of 1 ampere and a voltage up to 100 V AC, making it suitable for a variety of low voltage electronic applications. Its operational temperature range from -40°C to 105°C provides reliability in both industrial and commercial environments.

The slim, low-profile horizontal design and locking mechanism provide secure and space-saving connections, particularly useful in compact electronic devices such as small displays, keyboards, and other miniaturized systems.

A solder retention feature assists during PCB soldering processes, ensuring the connector remains firmly attached to the board. The 1.0 mm pitch facilitates high-density connections without sacrificing reliability.

This connector is manufactured in China and does not carry specific industry standards or approvals. It offers a cost-effective, high-density connection solution for professionals working in electronic manufacturing, industrial automation, and product design.

This connector accommodates 26 contacts ensuring secure signal transmission. Features a 1 mm pitch for high-density wiring configurations. Designed for surface mount technology with solder termination type. Includes a hinged flip-lock actuator providing Zero Insertion Force (ZIF) connection.

Operates within temperature range of -40°C to 105°C, suitable for demanding environments. Contact material is phosphor bronze plated with tin over nickel for corrosion resistance. Housing made of durable polyamide material ensuring structural integrity.

Voltage rating up to 100 V AC supports low voltage applications. Horizontal orientation and locking mechanism secure the cable interface. Ideal for connecting small displays and keyboards in miniaturized electronic devices.
