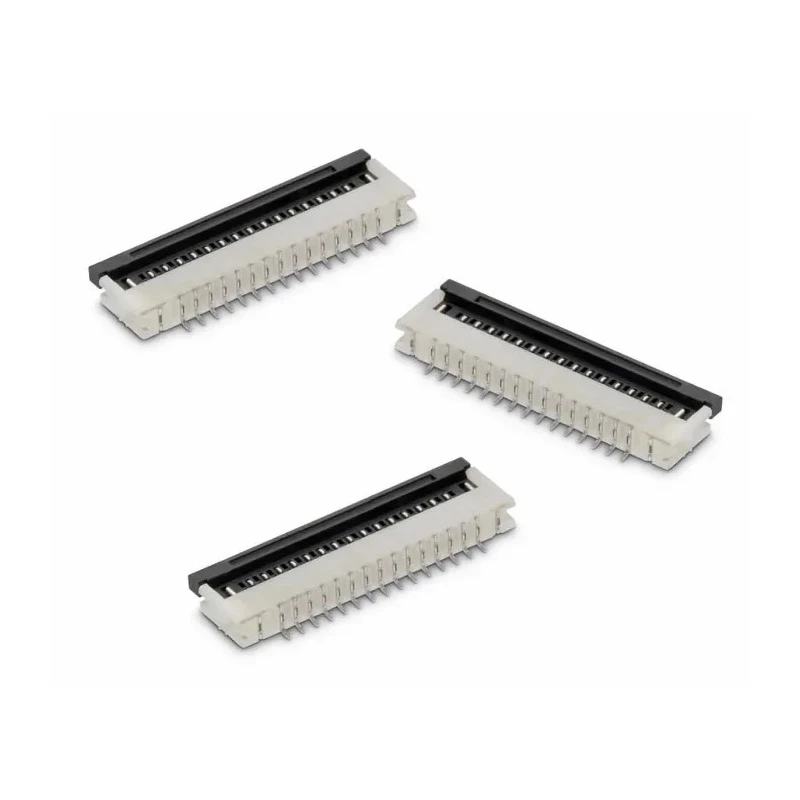

Wurth Elektronik WR-FPC 1 mm Pitch 16 Way Horizontal Female FPC Connector ZIF Bottom Contact 686116148922

Wurth Elektronik 686116148922 is a 1 mm pitch 16 way horizontal female FPC connector featuring a ZIF bottom contact termination type. It is designed to provide secure, high density, and cost-effective connections between flexible printed circuits (FPC) or flat flexible cables (FFC) and printed circuit boards (PCBs) without the need for mating connectors. The low profile SMT connector includes a flip-lock hinged actuator to firmly secure the cable, enhancing reliability in miniaturized electronic devices.

Manufactured using phosphor bronze contacts plated with tin over nickel, this connector ensures durable electrical performance and corrosion resistance. Its surface mount type mount style, combined with a solder retention feature, improves PCB assembly stability during solder reflow processes. The 1.0 mm pitch and single row 16 contact design suit a variety of compact applications such as small displays, keyboards, and other consumer electronics.

Electrical ratings include a maximum current of 1 A and voltage operation up to 100 V ac. It functions over a wide temperature range from -40°C up to 105°C, suitable for many industrial and commercial environments. Locking mechanisms provide secure mating reliability under vibration or mechanical stress. The product is RoHS compliant, supporting green manufacturing mandates.

This connector features a 1 mm pitch and 16 contacts to support fine pitch requirements. Constructed with phosphor bronze contact material and tin over nickel plating for durability and corrosion resistance. Designed for surface mount with a hinged flip-lock actuator ensuring secure cable connection.

Operates safely at voltages up to 100 V ac and currents up to 1 ampere. Offers a low-profile, lightweight form factor ideal for space-sensitive boards and compact devices. Supports operating temperatures ranging from -40°C to 105°C, suitable for demanding environments.

Includes locking mechanism and solder retention features for secure PCB mounting and reliable performance. RoHS compliant, making it suitable for environmentally conscious electronics manufacturing.

This Wurth Elektronik WR-FPC connector is ideal for use in electronics manufacturing, computer peripherals, telecommunication equipment, instrumentation, and automotive electronics where reliable flexible cable to board connections are needed. It supports industrial, laboratory, and commercial electronics applications requiring fine pitch and high integrity signal transmissions.
