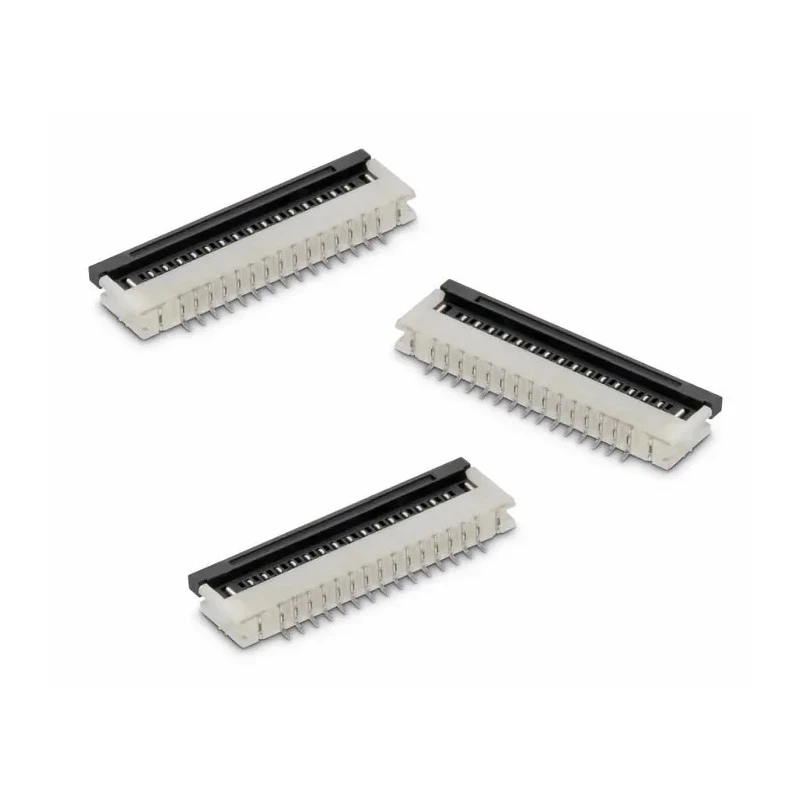

Wurth Elektronik WR-FPC 1 mm Pitch 14 Way Horizontal Female FPC Connector ZIF Bottom Contact 686114148922
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100, 100V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 1A |
| Mount Type | Surface |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF Bottom Contact |
| Maximum Operating Temperature | 105°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- This connector features a 1 mm pitch and 14 contact points for reliable electronic connections.
- Constructed from phosphor bronze with tin over nickel plating to ensure durability and corrosion resistance.
- The connector employs a ZIF (Zero Insertion Force) bottom contact termination for easy cable insertion and minimal wear.
- Designed with a hinged flip-lock actuator offering secure locking and low profile space-saving horizontal orientation.
- Suitable for SMT surface mounting with a solder retention feature to secure the connector during PCB soldering.
- Operates reliably over a temperature range from -40°C to 105°C, supporting up to 100 VAC voltage and 1 A current rating.
- Widely used in miniaturised electronic applications, including small displays and keyboards.
- Manufactured in China with no specific standards/approvals listed.
Product Description
Wurth Elektronik 686114148922 is a 14-way female FPC connector with a 1 mm pitch, designed for high-density, secure wire-to-board connections in compact electronic devices.
This WR-FPC Connector features a Zero Insertion Force (ZIF) bottom contact termination with a hinged flip-lock actuator, enabling easy cable insertion and a reliable locking mechanism to maintain connection integrity.
Manufactured from phosphor bronze contacts plated with tin over nickel, it provides excellent electrical conductivity and corrosion resistance. The surface mount (SMT) design incorporates a solder retention feature to stabilize the component during PCB assembly.
Its horizontal orientation and low-profile form factor make it ideal for miniaturised devices requiring connections to small displays or keyboards.
Electrical ratings include a voltage of up to 100 V AC and current capacity of 1 A, with a wide operating temperature range from -40°C to 105°C ensuring robust performance in various environments.
This connector has 14 contact pins arranged in a single row, ensuring compact connectivity. The ZIF termination minimizes insertion force to protect delicate FPC cables from damage. The hinged flip-lock actuator secures the connection firmly and allows quick release.
The connector is designed for surface mounting on PCBs with a reliable solder retention mechanism. Ideal for applications in electronic assemblies such as displays, keyboards, and other compact systems. Manufactured under no specific certifications but adheres to quality standards typical for Wurth Elektronik products.
Wurth Elektronik connectors are widely used in industrial, laboratory, commercial electronics manufacturing, and assembly applications requiring durable and precise FPC connectivity.
Explore more high-quality connectors and components from Wurth Elektronik and similar brands in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features a 1 mm pitch, which is suitable for high-density connections in compact electronic devices.
This model has 14 contact points arranged in a single row, allowing for compact connectivity.
The maximum current rating for this connector is 1 A, making it suitable for various electronic applications.
It can support a voltage of up to 100 V AC, ensuring reliable performance in electronic systems.
The operating temperature range for this connector is from -40°C to 105°C, allowing it to function in various environments.
It employs a ZIF (Zero Insertion Force) bottom contact termination, which minimizes insertion force and protects delicate cables.
The contacts are made of phosphor bronze and are plated with tin over nickel for enhanced conductivity and corrosion resistance.
Yes, it is designed for surface mounting (SMT) on PCBs and includes a solder retention feature to stabilize it during assembly.
The connector is designed with a horizontal orientation, which helps save space in compact electronic devices.
It is widely used in miniaturized electronic applications, including small displays and keyboards.
This connector is manufactured in China, adhering to quality standards typical for Wurth Elektronik products.
The connector has a female contact gender, which is standard for FPC connectors in various applications.
