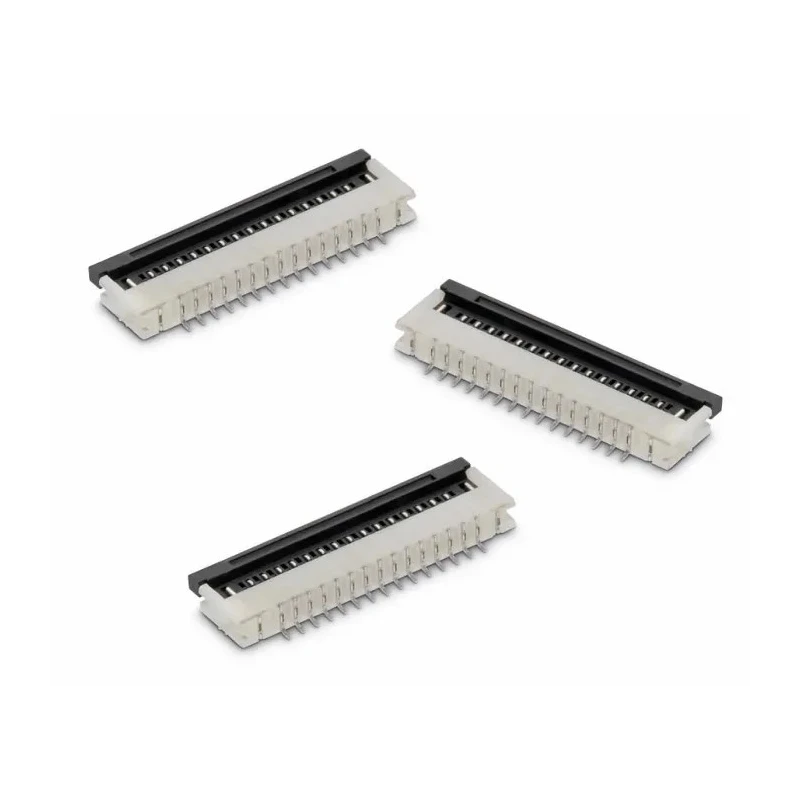

Wurth Elektronik WR-FPC 1 mm Pitch 26 Way Horizontal Female FPC Connector, Solder 686126148922
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100, 100V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- This FPC connector features a horizontal orientation and 26 contacts designed for secure connections.
- Contact material is phosphor bronze with tin over nickel plating to ensure conductivity and durability.
- Operates at 100 V AC with a current rating of 1 A suitable for low-power electronics.
- Features a bottom contact position with a hinged flip-lock actuator for secure cable retention.
- Mount type is surface mount technology with solder termination for PCB integration.
- Supports operating temperature range from -40°C to 105°C for diverse environmental conditions.
- The connector has a low-profile design made of polyamide housing for lightweight and space-saving installations.
- Designed with a locking mechanism and zero insertion force (ZIF) for easy and secure assembly.
Product Description
Wurth Elektronik 686126148922 Horizontal Female FPC Connector is a high-quality 1.0 mm pitch 26-way connector designed for reliable flexible printed circuit connections. This connector features a bottom contact configuration with a hinged flip-lock actuator providing a secure locking mechanism in surface mount applications.
Constructed from phosphor bronze contacts plated with tin over nickel, and housed in a durable polyamide body, it ensures excellent electrical performance and mechanical strength. Rated for 100 V AC voltage and 1 A current, it supports operation across a broad temperature range from -40°C to 105°C, making it suitable for a wide variety of electronic and industrial uses.
The connector is part of the WR-FPC series, meeting the demand for compact, lightweight designs that facilitate space-saving assemblies in miniaturized electronic devices. Its zero insertion force mechanism and solder termination simplify installation, while the flip-lock hinge actuator secures the FPC cable firmly without the need for additional mating connectors.
Applications typically include connections to small displays, keyboards, and other compact electronic assemblies requiring high-density and secure connections. Its robust mounting and locking features make it ideal for industrial, manufacturing, and electronics assembly environments.
This FPC connector offers an easy, secure connection solution with low profile and lightweight design. Phosphor bronze contacts with tin over nickel plating ensure durability and conductivity. Surface mount, solder termination type suitable for PCB assembly.
Supports operational temperature from -40°C to 105°C for extreme environments. Zero insertion force and hinged flip-lock actuator simplify cable insertion and secure locking. Designed for 26 contacts at 1 mm pitch, ideal for miniaturized devices.
Explore more high-performance FPC Connectors at EnvMart for your industrial and electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This FPC connector operates at 100 V AC with a current rating of 1 A.
It features a 1 mm pitch with 26 contacts.
The contact material is phosphor bronze with tin over nickel plating, and the housing is made of polyamide.
It has a hinged flip-lock actuator that provides a secure locking mechanism for the FPC cable.
It supports an operating temperature range from -40°C to 105°C.
This model uses surface mount technology with solder termination for PCB integration.
The connector features a horizontal orientation.
It is designed with a zero insertion force (ZIF) mechanism for easy and secure assembly.
It is typically used for connections to small displays, keyboards, and other compact electronic assemblies requiring high-density connections.
This connector has 1 row of contacts.
The contact position is bottom, which is designed to facilitate secure connections in surface mount applications.
The country of origin for this connector is China.
