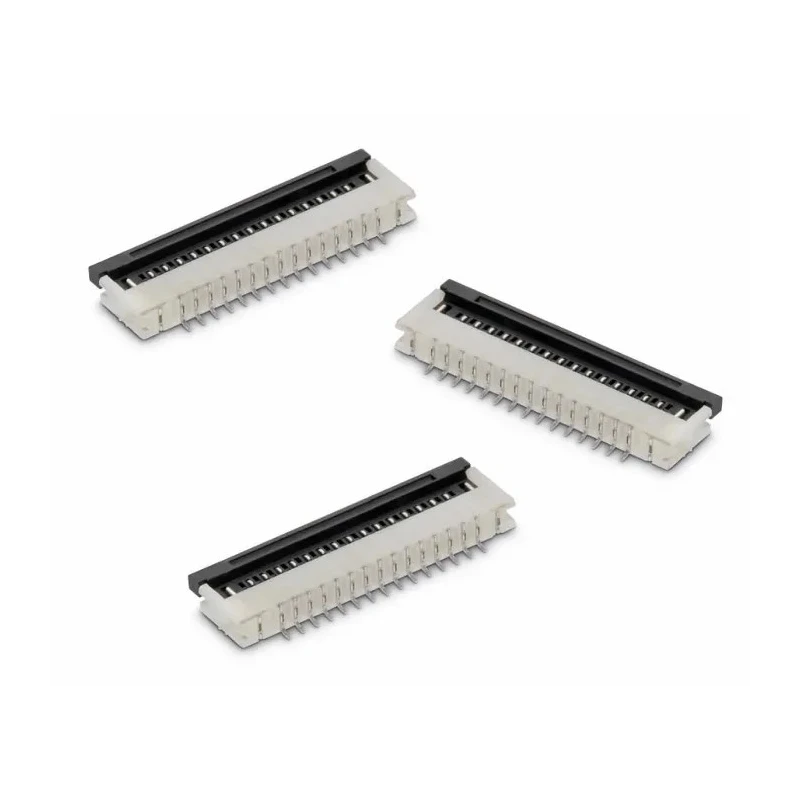

Wurth Elektronik WR-FPC 1 mm Pitch 12 Way Horizontal Female FPC Connector ZIF Bottom Contact 686112148922
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100, 100V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 1A |
| Mount Type | Surface |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF Bottom Contact |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- This FPC connector features a 1 mm pitch suitable for high-density electronic applications.
- Constructed with phosphor bronze contacts plated with tin over nickel for reliability.
- Supports a continuous current rating of 1A and voltage rating of 100 V AC.
- Equipped with a zero insertion force (ZIF) bottom contact termination and surface mount design.
- Operates reliably in temperatures from -40°C to 105°C and complies with RoHS standards.
- Includes a locking mechanism to ensure a stable connection during operation.
- The orientation of the connector is horizontal with a single row of 12 female contacts.
Product Description
Wurth Elektronik 686112148922 is a 12 Way Horizontal Female FPC Connector with a 1 mm pitch and zero insertion force (ZIF) bottom contact termination designed for surface mount technology (SMT) applications.
This connector features phosphor bronze contacts plated with tin over nickel to provide excellent conductivity and corrosion resistance.
The WR-FPC series includes a hinged flip-lock actuator securing the cable directly to the connector, obviating the need for a mating connector and enabling a cost-effective wire-to-board solution.
It supports a current rating of 1A and AC voltage of 100 V, making it suitable for reliable signal and power transmission. The connector's locking mechanism ensures secure connection integrity during vibration or movement, making it ideal for miniaturised electronic devices.
The connector operates safely within a wide temperature range from -40°C to 105°C, and is RoHS compliant, meeting environmental safety standards. Typical uses include connections to small displays, keyboards, and other compact electronic components in industrial, manufacturing, electronics assembly, and commercial products.
This FPC connector features a 1 mm pitch suitable for high-density electronic applications. Constructed with phosphor bronze contacts plated with tin over nickel for reliability. Supports a continuous current rating of 1A and voltage rating of 100 V AC.
Equipped with a zero insertion force (ZIF) bottom contact termination and surface mount design. Operates reliably in temperatures from -40°C to 105°C and complies with RoHS standards. Includes a locking mechanism to ensure a stable connection during operation.
The orientation of the connector is horizontal with a single row of 12 female contacts. Explore the Electronics Components category on EnvMart for a wide selection of FPC Connectors suited to diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a pitch of 1 mm, making it suitable for high-density electronic applications.
It supports a continuous current rating of 1A and a voltage rating of 100 V AC.
This connector is equipped with a zero insertion force (ZIF) bottom contact termination, designed for surface mount applications.
It operates reliably within a temperature range from -40°C to 105°C.
The contacts are made of phosphor bronze and are plated with tin over nickel for enhanced conductivity and corrosion resistance.
This model features a total of 12 female contacts arranged in a single row.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
The orientation of this connector is horizontal, which is suitable for various compact electronic applications.
The locking mechanism ensures a stable connection during operation, preventing disconnections due to vibration or movement.
Typical applications include connections to small displays, keyboards, and other compact electronic components in industrial and commercial products.
The country of origin for this connector is China.
This connector features a female contact gender, designed for compatibility with corresponding male connectors.
