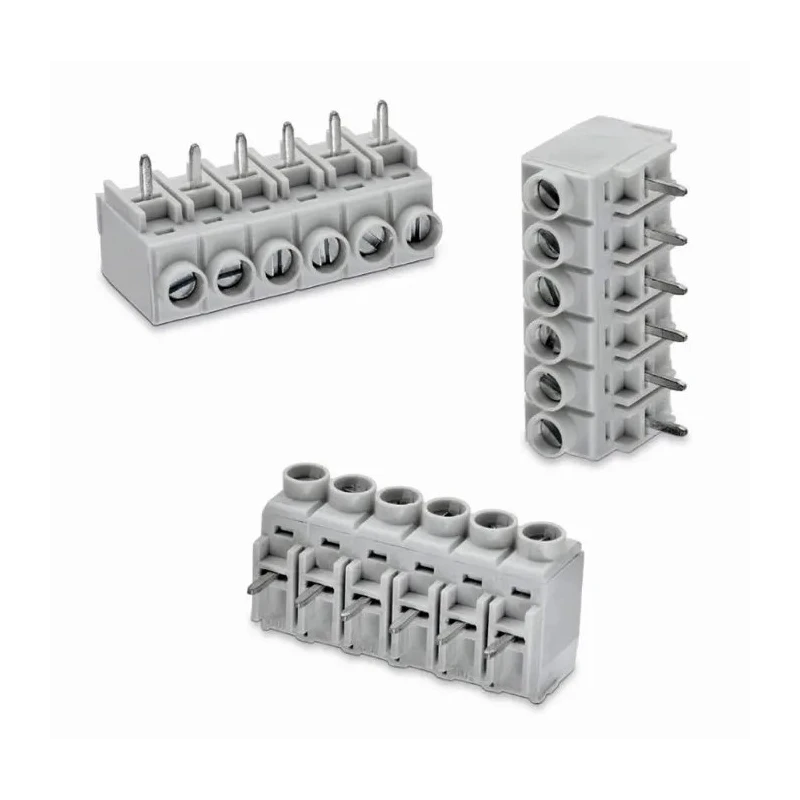

Wurth Elektronik 1327 Series PCB Terminal Block 6-Contact 5 mm Pitch Through Hole 1 Row 691132700006

Wurth Elektronik 691132700006 PCB Terminal Block is a 6-contact electrical connector designed for printed circuit board (PCB) applications, featuring a 5 mm pitch and through hole mount type. This terminal block is manufactured with a grey polycarbonate housing rated to UL94-V0 standards, providing robust flame retardance and durability. The housing is divisible and supports vertical conductor entry, allowing for easy and secure wire connections.

The terminal block employs a pressure clamp system secured by M2.5 screws and zinc-plated steel clamps, ensuring a strong mechanical and electrical connection. It accepts solid and stranded wires with sizes ranging from 30 AWG to 12 AWG (0.05 to 3.31 mm²), providing versatile wire accommodation. Electrical specifications include a current rating of 22A and voltage rating of 450V AC, suitable for a wide range of low and medium power PCB electrical connections.

With a single row configuration and a compact footprint of 30 mm length, 15.5 mm width, and 10.5 mm depth, this terminal block is optimized for efficient PCB layouts. The product meets international quality and safety certifications including cULus, VDE, and RoHS compliance, aligning with modern electronic manufacturing and environmental standards.

This terminal block is ideal for applications in electronic components manufacturing, power and connectors assembly, industrial electronics, and other commercial and laboratory equipment requiring secure and reliable PCB connectivity. It supports constructive collaboration with detailed 3D models and schematics available, facilitating design integration via supported CAD platforms.

Features a pressure clamp system with M2.5 screw for secure conductor connection. Accepts solid and stranded wire sizes from 30 AWG to 12 AWG (0.05 to 3.31 mm²). Constructed with grey UL94-V0 polycarbonate housing ensuring high safety standard.

Rated for 22A current and 450V AC voltage for reliable electrical performance. Single row vertical orientation with a pitch of 5.0 mm for precise PCB mounting. Through hole mount type suitable for durable PCB assembly. Compact dimensions of 30 mm length, 15.5 mm width, and 10.5 mm depth for space-efficient design.

Complies with cULus, VDE, and RoHS standards ensuring quality and environmental compliance. Explore additional Wurth Elektronik PCB Terminal Blocks and connectors for comprehensive electronic assembly solutions, available on EnvMart’s electronics components category.
