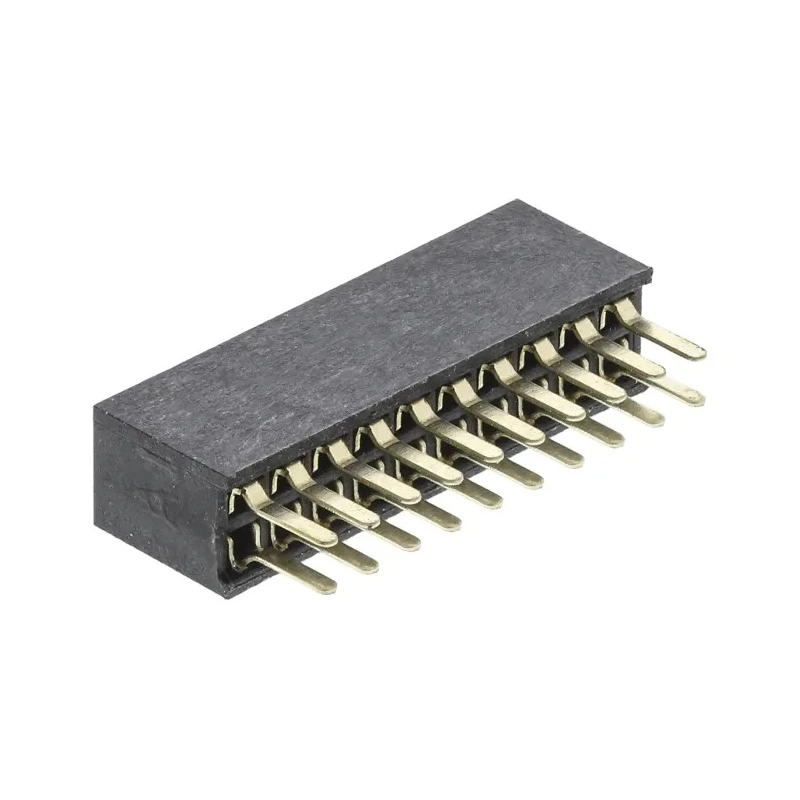

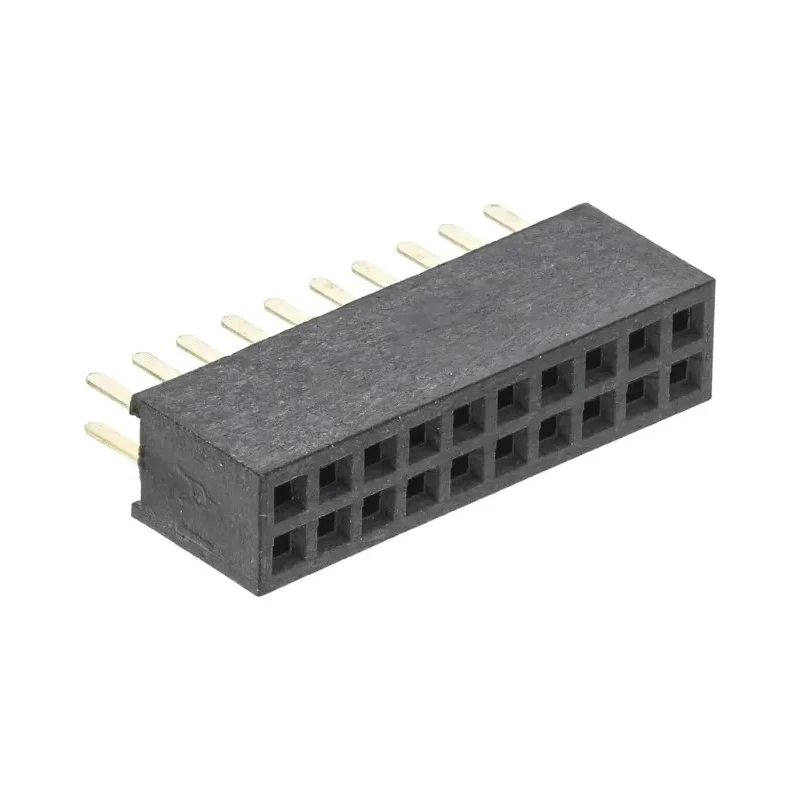

HARWIN M50 Series Straight Through Hole PCB Socket, 20-Contact, 2 Row, 1.27 mm Pitch, 12A, 1kV, Nylon Housing M50-3001045

HARWIN M50-3001045 is a high-quality PCB socket featuring 20 female contacts arranged in 2 rows with a precise 1.27 mm pitch. This straight through hole socket facilitates secure board-to-board connections with solder termination, ensuring strong electrical continuity and mechanical stability.

The socket housing is made from nylon, offering excellent durability and insulation. Contact materials are bronze with gold plating, enhancing conductivity and corrosion resistance. It supports a maximum current of 12A and voltage up to 1kV, making it suitable for various electronic and industrial applications. Operating temperature ranges from -40°C to 105°C, accommodating demanding environmental conditions.

This product from HARWIN’s M50 series is specifically designed for mounting through holes, providing reliable support in PCB assemblies. Its 2-row configuration enables efficient space utilization and facilitates complex circuit designs. It complements various header types within the M50 series, enhancing flexibility in component integration.

Key benefits include ease of soldering, consistent electrical performance, and compatibility with many board-to-board interface requirements. The robust build quality, combined with the trusted HARWIN brand, assures long-term dependability in professional and industrial environments.

Designed for board-to-board connectivity with a straight orientation. Features a durable nylon housing ensuring stability and insulation. Supports up to 12A current capacity and 1kV voltage rating. Contacts are female bronze plated with gold for reliable conductivity.

Suitable for through hole mounting and solder termination. Operates efficiently in a temperature range from -40°C to 105°C. Ideal for industrial and electronic component assembly applications.

This HARWIN M50 series PCB Socket is an ideal choice for manufacturing, electronics assembly, and industrial applications requiring reliable connector performance. Explore additional HARWIN components in our categories for complete system solutions.
