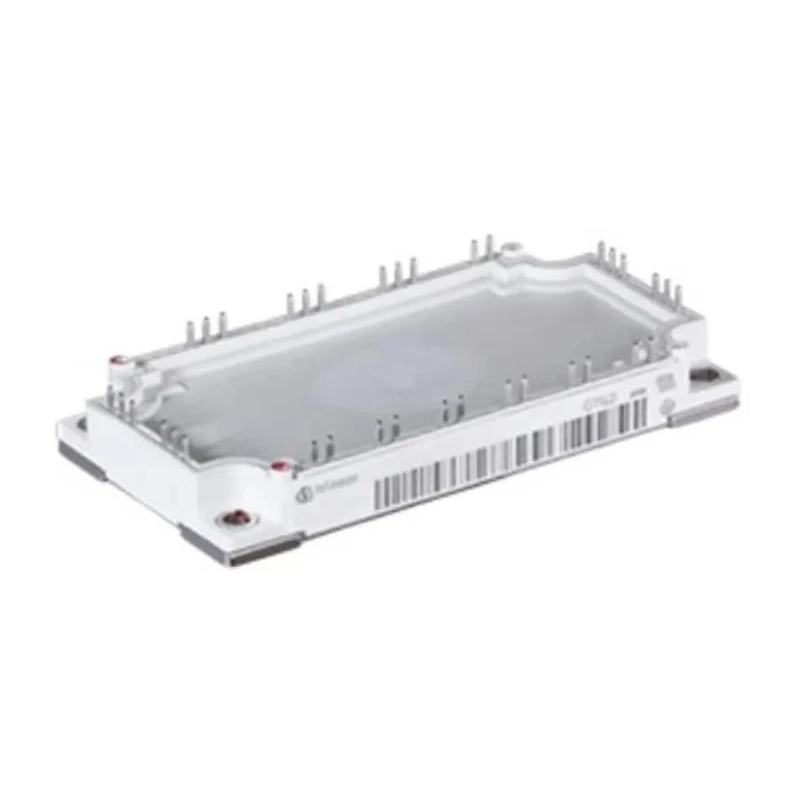

Infineon N-Channel IGBT Module 100 A 1200 V AG-ECONO3-4 Clamp FS100R12KT4GBOSA1

Infineon FS100R12KT4GBOSA1 N-Channel IGBT Module is designed for high efficiency and reliable power switching applications. It supports a maximum continuous collector current of 100 A and a collector emitter voltage rating of 1200 V, making it suitable for demanding industrial operations.

This module uses the AG-ECONO3-4 package and clamp mount technique, providing secure electrical and mechanical connections. The power dissipation rating of 515 W ensures robust thermal performance under continuous operation.

Engineered to operate in harsh environments, it withstands temperatures from -40°C up to 150°C. The gate emitter voltage of up to 20 V and a low collector emitter saturation voltage of 2.2 V contribute to lower switching losses and higher efficiency.

The compact dimensions (122 mm length, 62 mm width, 17 mm height) facilitate integration into various systems in industrial, commercial, and agricultural sectors. This module complies with RoHS directives, supporting eco-friendly applications. Typical uses include industrial motor drives, inverters, uninterruptible power supplies (UPS), and other fast-switching power electronics.

This IGBT module features a clamp mount and an AG-ECONO3-4 package style. Supports continuous current up to 100 A and voltage up to 1200 V. Maximum power dissipation capacity is 515 W. Operates reliably between -40°C and 150°C.

Designed for industrial drive and inverter applications. Complies with RoHS environmental standards. Compact package dimensions: 122 mm x 62 mm x 17 mm. Explore more IGBT Modules and semiconductor solutions at EnvMart for your industrial and commercial power electronics needs.
