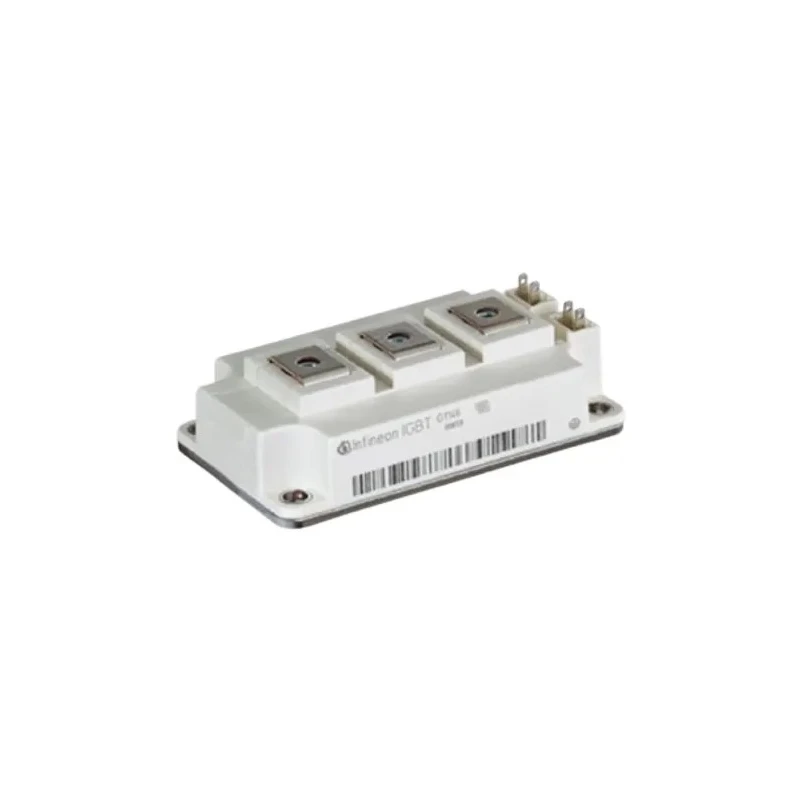

Infineon N-Channel IGBT Module 580A 1200V Power Dissipation 2000W AG-62MM-1 Package Clamp Mount FF400R12KE3HOSA1

Infineon FF400R12KE3HOSA1 N-Channel IGBT Module is designed to deliver high current handling and stable voltage performance in diverse industrial power electronic systems. With a robust maximum continuous collector current rating of 580A and a collector-emitter voltage rating of 1200V, this module suits demanding industrial uses including inverter circuits, renewable energy systems like solar inverters, electric vehicle propulsion, and heavy-duty automation equipment.

Its clamp mount configuration with package type AG-62MM-1 allows for a secure and efficient panel mounting, facilitating easy installation. The module operates reliably across a wide temperature range from -40°C up to 125°C, tolerating harsh environmental conditions encountered in industrial settings.

With a power dissipation capacity of 2000W and a fast switching speed of 0.04 microseconds, this IGBT enables efficient power conversion and high-speed operations. Furthermore, the maximum gate-emitter voltage of ±20V provides operational flexibility for diverse electronic circuit designs.

The device dimensions (length 106.4mm, width 61.4mm, height 30.9mm) make it suitable for compact power electronic setups while ensuring effective thermal management. It features a maximum collector-emitter saturation voltage of 2.15V which contributes to operational efficiency.

Designed following RoHS compliance, the FF400R12KE3HOSA1 module adheres to environmental standards. It is particularly useful in applications including industrial machinery inverters, solar power conversion units, propulsion systems in electric vehicles, and automation controls requiring high current capacity.

The module supports high power dissipation of 2kW to meet demanding requirements. Max continuous collector current of 580A enables handling of substantial power loads. Clamp mount AG-62MM-1 package supports secure and stable installation.

Wide operational temperature range from -40°C to 125°C for versatility in environments. Fast switching speed of 0.04μs enhances power electronic circuit efficiency. RoHS compliant ensuring adherence to environmental regulations.

Compact 106.4 x 61.4 x 30.9 mm dimensions suitable for industrial circuits. Ideal for renewable energy, electric vehicle, and industrial automation applications. Discover more power modules and semiconductor components to enhance your industrial electronic systems on EnvMart.
