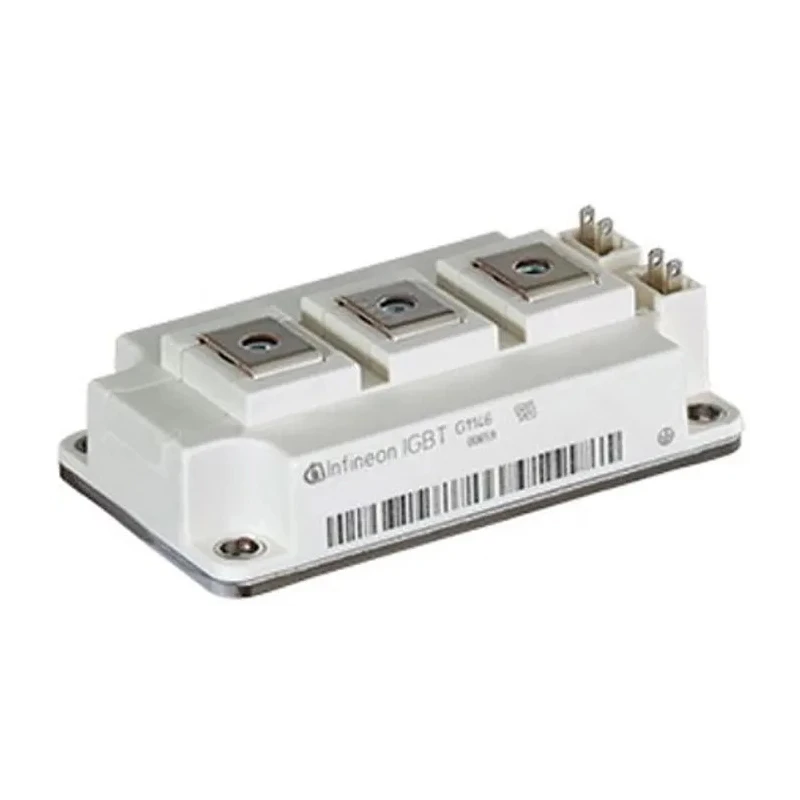

Infineon N-Channel IGBT Module 520 A 1200 V AG-62MM-1 Clamp FF450R12KE4HOSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 30.9mm |
| Length | 106.4mm |
| Model | FF450R12KE4HOSA1 |
| Width | 61.4mm |
| Mount Type | Clamp |
| Series | 62mmC |
| Maximum Operating Temperature | 150°C |
| Package Type | AG-62MM-1 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | EN 61140 |
| Maximum Continuous Collector Current Ic | 520A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.15V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 2400W |
| Maximum Gate Emitter Voltage VGEO | 20 V |
| Package styles include | 62mm Modules, EasyPACK, EconoPACKTM2/EconoPACKTM3/EconoPACKTM4 |
Key Features
- Designed for efficient switching up to 60 kHz frequencies.
- Features clamp mount type for secure installation.
- Maximum power dissipation of 2400 W ensures reliable operation.
- Operates within temperature range of -40°C to 150°C.
- Low collector emitter saturation voltage of 2.15 V for minimal losses.
- Complies with EN 61140 safety standards.
- Suitable for industrial inverter, UPS and drive applications.
- Incorporates N-Channel TRENCHSTOP and Fieldstop IGBT technology.
Product Description
Infineon FF450R12KE4HOSA1 N-Channel IGBT Module is a high-power semiconductor device designed for efficient power switching applications. It supports a maximum continuous collector current of 520 A and a collector emitter voltage rating of 1200 V. Packaged in the AG-62MM-1 form factor with clamp mounting, this module ensures secure mechanical and electrical integration.
The module features a maximum power dissipation of 2400 W allowing for demanding industrial environments. It operates reliably within a wide temperature range from -40°C to 150°C and maintains a low collector emitter saturation voltage of 2.15 V to reduce conduction losses.
Built with Infineon's advanced N-Channel TRENCHSTOP and Fieldstop IGBT technologies, the module offers fast switching capabilities suitable for frequencies up to 60 kHz. This makes it an ideal choice for industrial inverter systems, uninterruptible power supplies (UPS), and motor drives.
It meets the EN 61140 safety standard and supports versatile package styles including the EasyPACK and EconoPACK series. The module’s compact dimensions (106.4 mm length, 61.4 mm width, 30.9 mm height) facilitate integration in space-constrained electronic assemblies.
Designed for efficient switching up to 60 kHz frequencies. Features clamp mount type for secure installation. Maximum power dissipation of 2400 W ensures reliable operation. Operates within temperature range of -40°C to 150°C.
Low collector emitter saturation voltage of 2.15 V for minimal losses. Complies with EN 61140 safety standards. Compact module dimensions: 106.4 mm length, 61.4 mm width, 30.9 mm height. Suitable for industrial inverter, UPS and drive applications.
Incorporates N-Channel TRENCHSTOP and Fieldstop IGBT technology. Compatible with EasyPACK, EconoPACK2/3/4 and 62 mm module series.
This Infineon IGBT module is widely used in industrial, commercial, construction, and agricultural vehicles, as well as inverter and soft-switching applications. It provides high efficiency and reliability in demanding power electronics systems.
Explore more IGBT Modules and semiconductor components at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current of this model is 520 A.
This IGBT module has a collector emitter voltage rating of 1200 V.
The maximum power dissipation is 2400 W, allowing for reliable operation in demanding environments.
It operates reliably within a temperature range of -40°C to 150°C.
The collector emitter saturation voltage is 2.15 V, which helps minimize conduction losses.
This model features a clamp mount type for secure installation.
The dimensions of this unit are 106.4 mm in length, 61.4 mm in width, and 30.9 mm in height.
It complies with the EN 61140 safety standard.
This unit is compatible with 62mm modules, EasyPACK, and EconoPACK series.
It is suitable for industrial inverter systems, uninterruptible power supplies (UPS), and motor drives.
It incorporates N-Channel TRENCHSTOP and Fieldstop IGBT technology for efficient switching.
The maximum gate emitter voltage for this model is 20 V.
