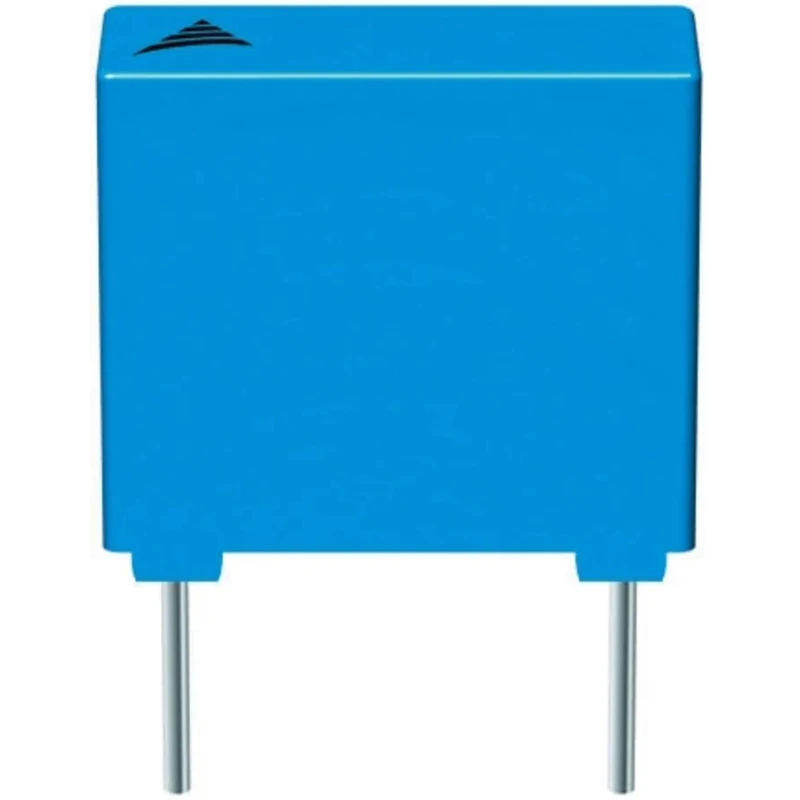

TDK Film Capacitor 330 nF 300V AC 300 V DC Through Hole B32024A3334M000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 330 nF 300V AC 300 V DC Through Hole B32024A3334M000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Operating Temperature	-40 → 110 °C
Height	23mm
Length	31.5mm
Model	B32024A3334M000
Width	13.5mm
Mount Type	Through Hole
Series	B32024
Maximum Operating Temperature	110°C
Capacitance	330nF
Standards/Approvals	UL, CSA
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	300V dc
Lead Pitch	27.5mm
Lead Diameter	0.8mm

Key Features

Constructed with polypropylene plastic case and epoxy resin sealing providing UL 94 V-0 flame resistance.
Compact dimensions measuring 31.5mm length, 13.5mm width, and 23mm height.
Designed for stable operation from -40°C to 110°C with good self-healing properties.
Features 2 pins with a lead pitch of 27.5mm and lead diameter of 0.8mm for through hole PCB mounting.
Complies with UL and CSA standards ensuring high voltage capability and safety.
Typical applications include interference suppression Y2 class and line-to-ground positions.
Resistant to high voltage stresses and suitable for industrial and electronic component usage.

Product Description

TDK B32024A3334M000 film capacitor is a high-quality passive electronic component designed for reliable performance in industrial and electronic applications. This capacitor features a polypropylene plastic case with UL 94 V-0 rated flame resistance and an epoxy resin sealing ensuring durability and protection against environmental factors.

The capacitor has a capacitance of 330 nF and is rated for 300V AC and 300 V DC voltage, suitable for interference suppression and line-to-ground electrical designs. With a compact size of 31.5mm length, 13.5mm width, and 23mm height, the component is ideal for through hole mounting on printed circuit boards using its 2 pins with 0.8mm diameter leads spaced at 27.5mm pitch.

Operating temperature ranges from -40°C up to a maximum of 110°C, making it suitable for a wide range of industrial environments. The capacitor exhibits good self-healing properties to enhance longevity and dependability under voltage stress. It conforms to important safety standards such as UL and CSA, ensuring compliance for professional electronics manufacturing and repair.

This capacitor is commonly used in Y2 class interference suppression and line-to-ground applications, helping to protect sensitive electronic circuits from voltage spikes and noise.

Polypropylene construction with UL 94 V-0 flame rated plastic and epoxy sealing ensures safety and durability. Compact through hole design with 2 pins allows easy PCB integration. Rated for 300V AC and 300 V DC for versatile industrial usage.

Operating temperature from -40°C to 110°C supports harsh conditions. Capacitance of 330 nF provides effective electrical filtering and suppression. Complies with UL and CSA safety standards. Typical use in interference suppression and line-to-ground applications.

Not suitable where capacitor failure could cause electric shock to users.

Ideal for industrial, manufacturing, electronic components assembly, and power supply applications requiring reliable Film Capacitors with proven safety standards. Browse EnvMart capacitors and TDK brand electronic components for quality and performance assurance.
