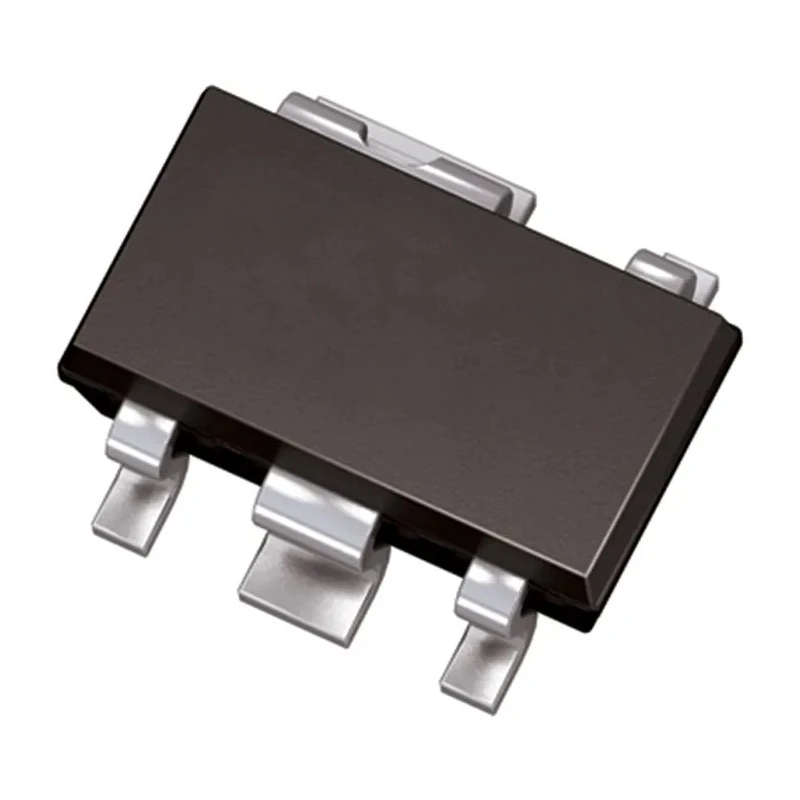

Infineon Surface Mount Positive Voltage Regulator 45V 4-Pin with 5μA Quiescent Current TLE4296GV50HTSA1

Infineon TLE4296GV50HTSA1 is a high-quality surface mount voltage regulator designed for stable positive voltage output up to 45V. Its compact 4-pin package, measuring 2.9mm by 1.6mm by 1mm, facilitates easy integration into modern printed circuit boards using surface mounting technology.

This linear voltage regulator features a low dropout voltage allowing operation with minimal input-output differential and a very low quiescent current of only 5μA, minimizing power loss and enhancing energy efficiency in battery-powered applications. It supports an input voltage range from 4V to 45V and can function reliably at high operating temperatures up to 150°C, making it suited for industrial, automotive (non-compliant), and consumer electronic uses.

Its positive polarity and fixed voltage output provide precise power regulation with low noise and high power supply rejection ratio (PSRR), beneficial for sensitive analog and digital circuits. Although this device does not carry any particular compliance certifications or automotive standards, it is optimized for applications requiring efficient power management in compact form factors.

The 4-pin design provides simple pin configuration for in/out voltage and ground connections, streamlining circuit board layout and manufacturing efficiencies. This voltage regulator is ideal for power management IC applications across industrial machinery, communication devices, test equipment, and other electronic products requiring stable voltage supply under varying load conditions.

Package contents consist of a single Infineon 4-pin surface mount voltage regulator component specially engineered for optimal linear regulation performance. This voltage regulator operates over a wide input range from 4V to 45V.

It features a compact package measuring 2.9mm length, 1.6mm width, and 1mm height suitable for surface mounting. The device has a maximum operating temperature of 150°C, ensuring robust performance in demanding environments.

Designed for low noise and high power supply rejection ratio suitable for sensitive electronics. The regulator provides positive polarity output making it ideal for various power management applications. It is a fixed voltage LDO (Low Dropout) linear regulator supporting fast transient response.

This component has no automotive standard certification and does not comply with specific industry standards. The 4-pin design simplifies PCB layout for embedded power management circuits. Explore and order this reliable Voltage Regulator from EnvMart for your industrial, laboratory, automotive electronics, or manufacturing power management needs.
