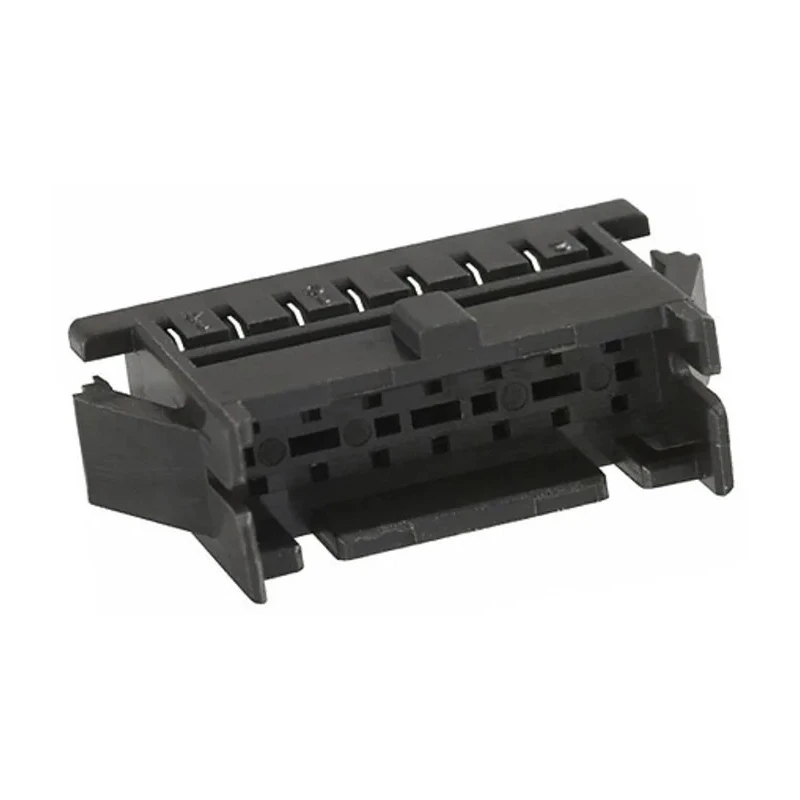

Hirose Connector Housing 30 Contacts 2 Row Straight Panel Mount 2 mm Pitch DF11
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 37mm |
| Model | DF11 |
| Width | 13mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | DF11 |
| Number of Rows | 2 |
| Pitch | 2mm |
| For Use With | DF11 Series Contact |
| Number of Contacts | 30 |
| Connector Gender | Male |
Key Features
- The compact DF11 series provides a space-saving double row contact configuration in the same footprint as a single row housing.
- It features a 5 mm depth that allows the double row arrangement with a low profile design.
- Guide ribs prevent incorrect insertion and twisting when mating connectors.
- A friction locking mechanism ensures secure connection between plug and socket.
- Mounting ears enable reliable and secure retention of the connector housing to the panel.
- Suitable for use in digital cameras, LCD displays, video recorders, car navigation, access control, and measurement devices.
Product Description
Hirose DF11-30DEP-2C is a male connector housing from the DF11 series featuring a 2 mm pitch with 30 contacts arranged in 2 rows in a straight orientation. It is designed for panel mounting, suitable for panels 1.0 to 1.6 mm thick. The connector's polyamide housing provides durability while maintaining a compact form factor with a length of 37 mm and width of 13 mm, and a depth of less than 5 mm, making it ideal for space-constrained electronic assemblies.
The double row contact design of the DF11 series allows twice the number of contacts within the same footprint as a single row housing, providing a compact and efficient wiring solution. Guide ribs incorporated into the design prevent mismating by ensuring proper alignment during connector insertion. The friction locking mechanism firmly secures the connection, preventing accidental disconnection even in vibrating or mobile applications.
The connector also includes mounting ears which allow it to be firmly secured onto the panel, ensuring stability and reliability in its mounting position. This Connector Housing is often used in electronic and portable devices requiring multiple signal lines in a compact space, such as digital cameras, LCD screens, digital video recorders, automotive navigation systems, access control units, and precision measurement instruments.
The compact two-row design maximizes contact density. Reliable friction lock mechanism secures the connection. Mounting ears support firm panel attachment. Guide ribs avoid improper insertion and connector damage. Polyamide housing offers durable and lightweight protection.
2 mm pitch suits compact PCB applications requiring many contacts.
This connector is part of the versatile DF11 series from Hirose, known for reliability in electronics assembly and ease of use in diverse industrial, consumer electronics, and automotive applications. Explore more connector solutions in EnvMart categories for your next project or manufacturing requirement.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DF11 connector housing features a double row contact configuration with 30 contacts arranged in 2 rows.
This model has a length of 37 mm, a width of 13 mm, and a depth of less than 5 mm.
The contacts in the DF11 series are arranged with a pitch of 2 mm.
The housing of the DF11 connector is made from polyamide, providing a lightweight and durable solution.
This connector housing is designed for panel mounting and is suitable for panels that are 1.0 to 1.6 mm thick.
The friction locking mechanism secures the connection between the plug and socket, preventing accidental disconnection even in vibrating or mobile applications.
It is suitable for use in digital cameras, LCD displays, video recorders, car navigation systems, access control, and measurement devices.
Guide ribs incorporated into the design prevent incorrect insertion and twisting when mating connectors.
The DF11 connector housing has a straight orientation.
This connector housing is a male connector.
Yes, it is part of the DF11 series, known for its reliability in electronics assembly and compact design.
The DF11 connector housing is manufactured in India.
