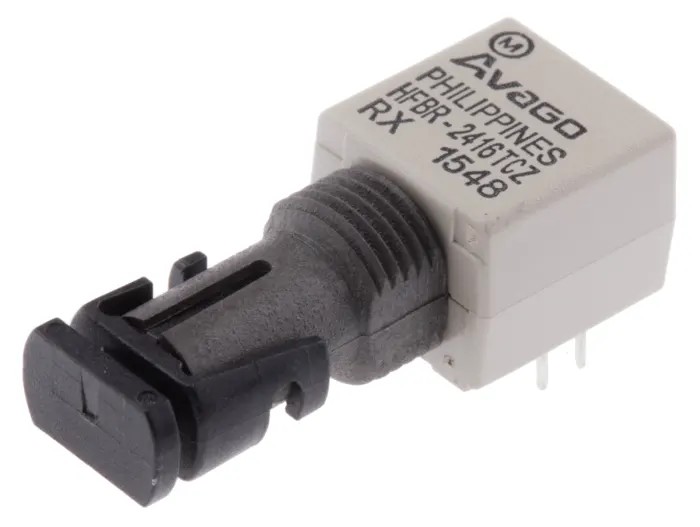

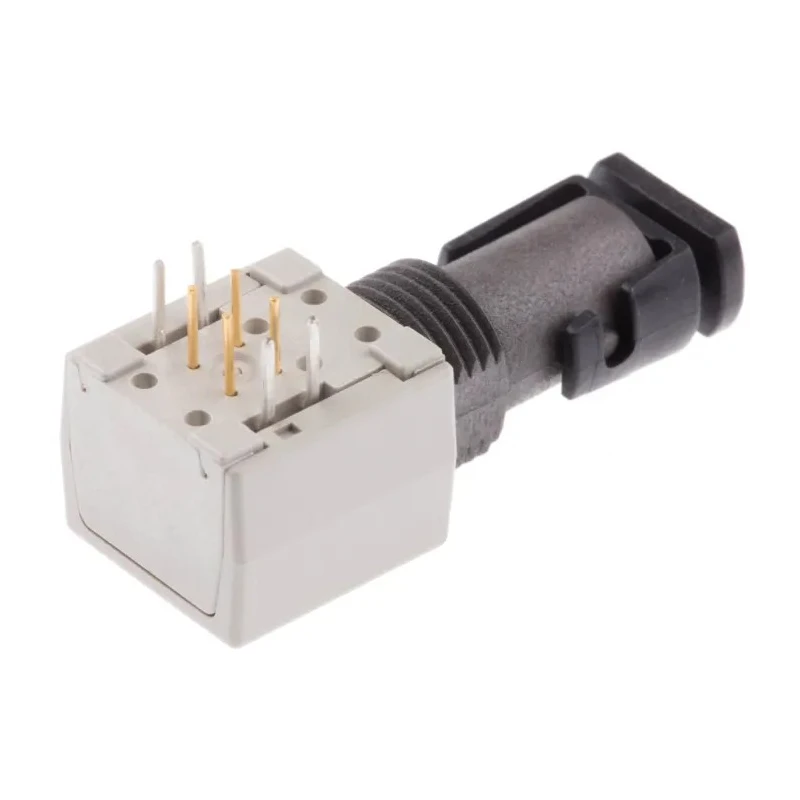

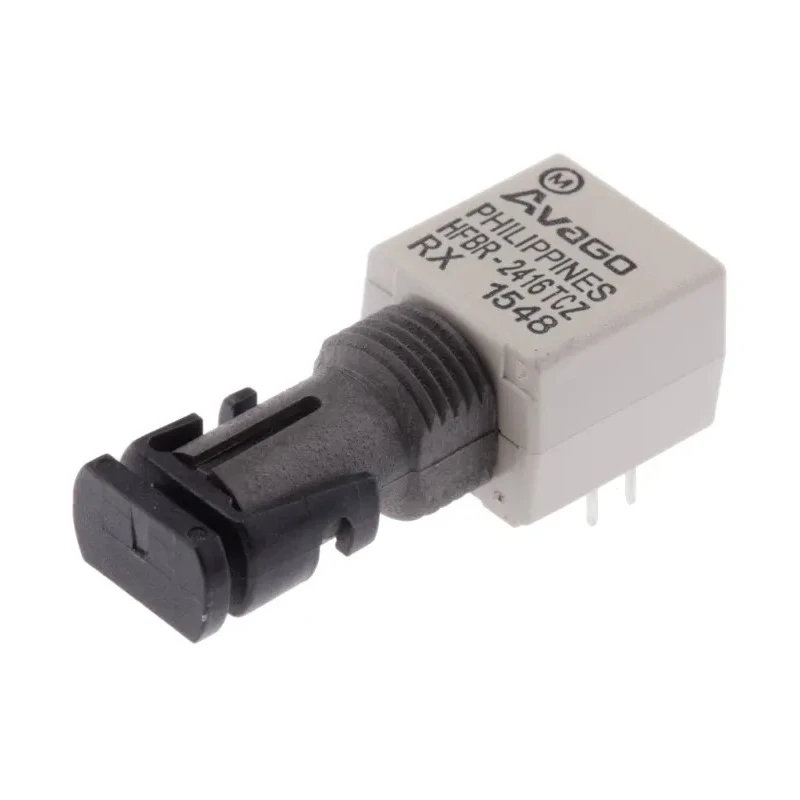

Broadcom Fibre Optic Receiver Round ST Connector 820 nm Wavelength 160 MBd HFBR-2416TCZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 10.2mm |
| Length | 27.2mm |
| Model | HFBR-2416TCZ |
| Connector Type | ST |
| Width | 12.7mm |
| Mount Type | Through Hole |
| Series | HFBR |
| Number of Pins | 8 |
| Typical Rise Time | 6.3ns |
| Typical Fall Time | 3.3ns |
| Maximum Data Rate | 160MBd |
| Output Signal Type | Analogue |
| Connector Shape | Round |
| Wavelength of Peak Sensitivity | 820nm |
| This product is also available in other popular industry-standard connectors | SMA, SC and FC |
Key Features
- The receiver offers high-speed data transmission with a maximum data rate of 160 MBd.
- It has an 8-pin, through-hole mount design with a round ST connector shape for reliable fiber optic connections.
- This model operates optimally at a wavelength of 820 nm, suitable for various industrial fiber systems.
- Typical rise and fall times are 6.3 ns and 3.3 ns respectively, ensuring fast signal response.
- Compact dimensions include a length of 27.2 mm, width of 12.7 mm, and height of 10.2 mm for seamless PCB integration.
- The output signal type is analogue, compatible with a wide range of industrial electronics.
- It supports optical fiber standards including 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm HCS fiber optic cables.
- The product is RoHS compliant and designed for industrial communication applications such as power generation and medical systems.
Product Description
Broadcom HFBR-2416TCZ fibre optic receiver is a high-performance component designed for industrial optical communication links. Featuring a round ST connector and operating at a peak wavelength sensitivity of 820 nm, this receiver supports data rates up to 160 MBd. Its compact size, with dimensions of 27.2 mm length, 12.7 mm width, and 10.2 mm height, makes it suitable for integration into diverse electronic assemblies.
The device incorporates an integrated photodetector and dc amplifier with an open-collector Schottky output transistor, providing an analogue output signal type. It is through-hole mountable on PCBs, featuring 8 pins for robust electrical connection. The receiver is designed for use with a variety of fiber optic cable types, including 50/125 μm to 200 μm HCS fibers, making it flexible for multiple industrial applications.
This series targets applications such as industrial control links, computer to peripheral connections, and digital cross-connect systems. The HFBR-2416TCZ is tailored for operating environments with wide temperature ranges from -40°C to +85°C, ensuring durability and reliability in harsh conditions.
Broadcom's unique optical port design enhances coupling efficiency with conductive ST-threaded ports, facilitating stable connections. The HFBR series components comply with RoHS directives, emphasizing lead-free and environmentally conscious manufacturing practices.
The receiver operates at maximum data rate of 160 MBd for high-speed communication. It supports multiple fiber sizes and types for broad compatibility. Compact dimensions and through-hole pins facilitate easy PCB mounting.
Analogue output signal optimizes interface with industrial control electronics. Robust design supports a wide operating temperature range for industrial applications. RoHS compliant construction adheres to environmental safety standards.
Multiple connector versions exist in the series, this model uses a conductive ST-threaded port. Applicable in medical, transportation, power generation, and telecommunication sectors. Suitable for computer peripheral links and digital cross connect links.
Explore more in the Fibre Optic Receivers category on EnvMart for compatible and complementary industrial optical components from Broadcom.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 160 MBd, allowing for high-speed data transmission.
It operates optimally at a wavelength of 820 nm, suitable for various industrial fiber systems.
The typical rise time is 6.3 ns and the fall time is 3.3 ns, ensuring fast signal response.
This unit provides an analogue output signal type, compatible with a wide range of industrial electronics.
The receiver has compact dimensions of 27.2 mm in length, 12.7 mm in width, and 10.2 mm in height.
It supports optical fiber standards including 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm HCS fiber optic cables.
This model features a through-hole mount design with 8 pins for robust electrical connection on PCBs.
It is designed for industrial communication applications such as power generation, medical systems, and industrial control links.
The HFBR-2416TCZ is manufactured in India.
It uses a round ST connector shape for reliable fiber optic connections.
The receiver is RoHS compliant, emphasizing lead-free and environmentally conscious manufacturing practices.
