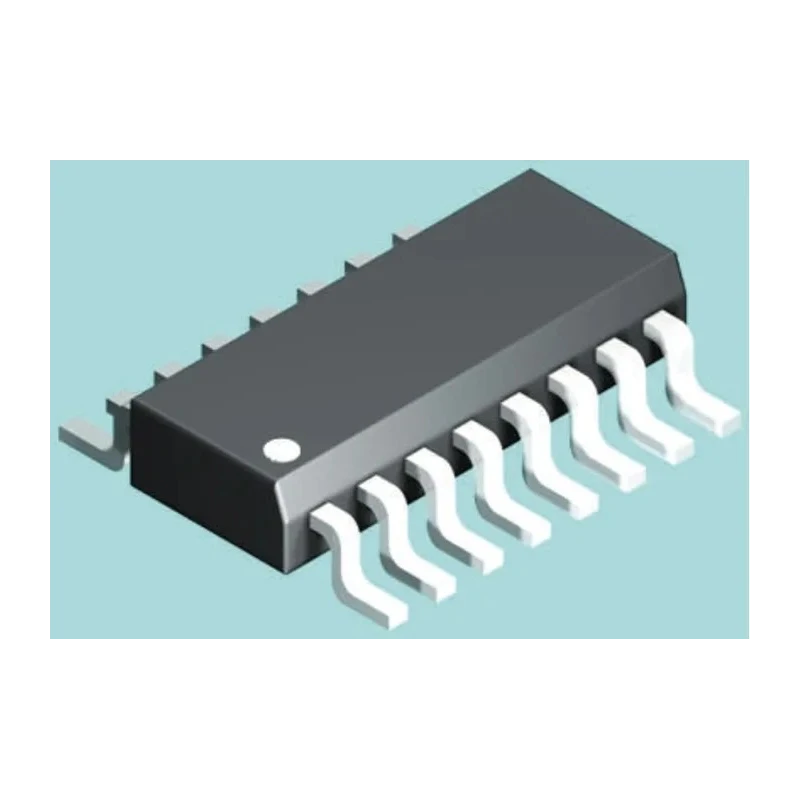

NVE 2-Channel Line Transceiver, Digital, Non-Inverting, 16-Pin SOIC IL3185-3E

NVE IL3185-3E is a high-performance 2-Channel Line Transceiver designed for digital communication applications. This non-inverting device features differential input and digital output in a compact 16-pin SOIC surface mount package, measuring 9.5 mm in length and 3.99 mm in width. Operating within a voltage supply range of 3V to 5V, it delivers reliable bus transceiver logic with a maximum propagation delay time of 85 nanoseconds, making it suitable for industrial, construction, automotive systems, and manufacturing environments.

The transceiver supports 2 independent line channels and is optimized for low power consumption with a supply current of only 7 mA. It also provides symmetrical output current capabilities up to 60 mA for both high and low states. Its operating temperature range from -40°C to 85°C makes it robust for harsh and variable ambient conditions.

Its surface mount SOIC package reduces PCB footprint while maintaining ease of integration into complex digital circuits. The non-inverting logic with differential input ensures noise immunity and signal integrity, essential for communication line interfaces such as RS-485 networks.

NVE’s IL3185 series line transceivers do not carry formal certifications but comply with industrial standards for electronic components, ensuring reliable performance. The product is manufactured in the United States, guaranteeing premium quality.

Key applications include industrial automation systems, digital communication networks, and embedded controller interfaces within laboratory, manufacturing, and commercial fields. This device supports seamless insertion into machinery and equipment assembly to improve data transmission efficiency and operational reliability.

Includes 2 independent channels for line transceiver functions. Operates on a supply voltage range between 3V and 5V. Maximum propagation delay time is 85 nanoseconds for efficient signal processing. Devices are compact with a 16-pin SOIC package, measuring 9.5 mm length and 3.99 mm width.

Functionality features non-inverting polarity and differential inputs for reliable digital output. Operating temperature range spans from -40°C to 85°C, suitable for diverse environments. Maximum output current ratings are 60 mA for both high and low levels.

Supply current consumption is low at 7 mA, optimizing power efficiency. Designed for surface mount applications enhancing PCB layout compactness. Manufactured in the United States ensuring high quality and standards. Explore the wide range of semiconductor components and Line Interface ICs on EnvMart to support your advanced electronics and automation projects.
