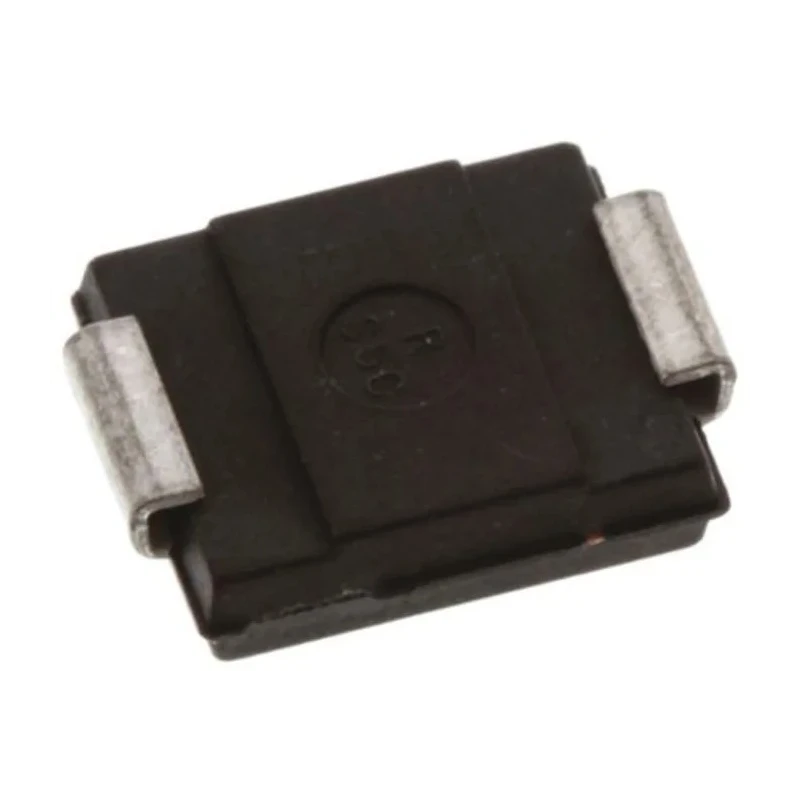

Taiwan Semiconductor 1-Element Uni-Directional TVS Diode 1.5 kW 2-Pin DO-214 SMCJ48A

Taiwan Semiconductor SMCJ48A 1-Element Uni-Directional TVS Diode is specifically engineered for transient voltage suppression in industrial and electronic applications. This diode features a peak pulse power dissipation of 1.5 kW and is housed in a compact 2-pin DO-214 surface mount package, allowing easy integration into printed circuit boards.

The diode configuration is single-element with uni-directional protection, making it highly effective for clamping transient voltage spikes that can damage sensitive equipment. It maintains a minimum breakdown voltage of 58.9 V and a clamping voltage of 77.4 V, handling peak pulse currents up to 19.4 A.

Its operating temperature spans from -55°C to 150°C, ensuring performance in both harsh and demanding environments. The diode's maximum reverse stand-off voltage is 48 V with a low maximum reverse leakage current of just 5 µA, which supports energy-efficient and stable circuit operation.

Compact dimensions of 8.15 mm length, 6.25 mm width, and 2.45 mm height facilitate space-saving designs and effective board layout. Compliance with FBI quality standards provides assurance for durability and reliability in industrial, manufacturing, laboratory, and electronic component applications.

This single-element, uni-directional TVS diode protects circuits from voltage transients. 1.5 kW peak pulse power rating handles significant transient energy. Surface mount DO-214 package supports easy automated assembly.

Robust operating temperature range from -55°C to 150°C suits industrial use. Low leakage current reduces power consumption during normal operation. Compact size enables integration into dense electronic assemblies. Meets FBI quality standards for reliable and consistent performance.

Protects electronic components in semiconductor, discrete semiconductor, and power distribution applications.

The Taiwan Semiconductor SMCJ48A is an essential component for engineers designing circuits with high transient voltage protection requirements. Its technical features and compact form factor make it suitable for a wide range of electronic, industrial, HVAC, manufacturing, and laboratory equipment protection applications.
