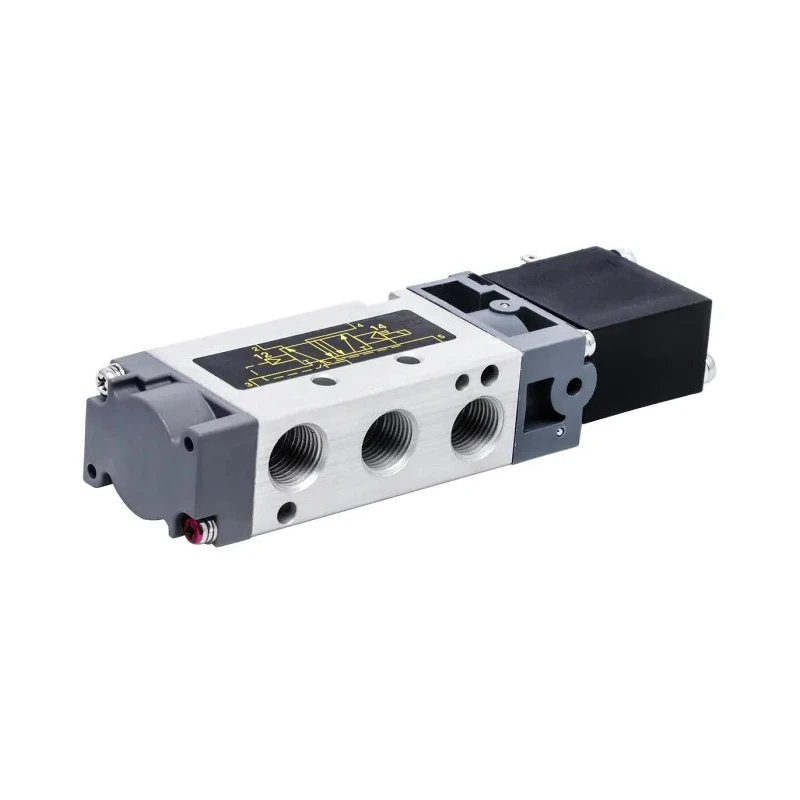

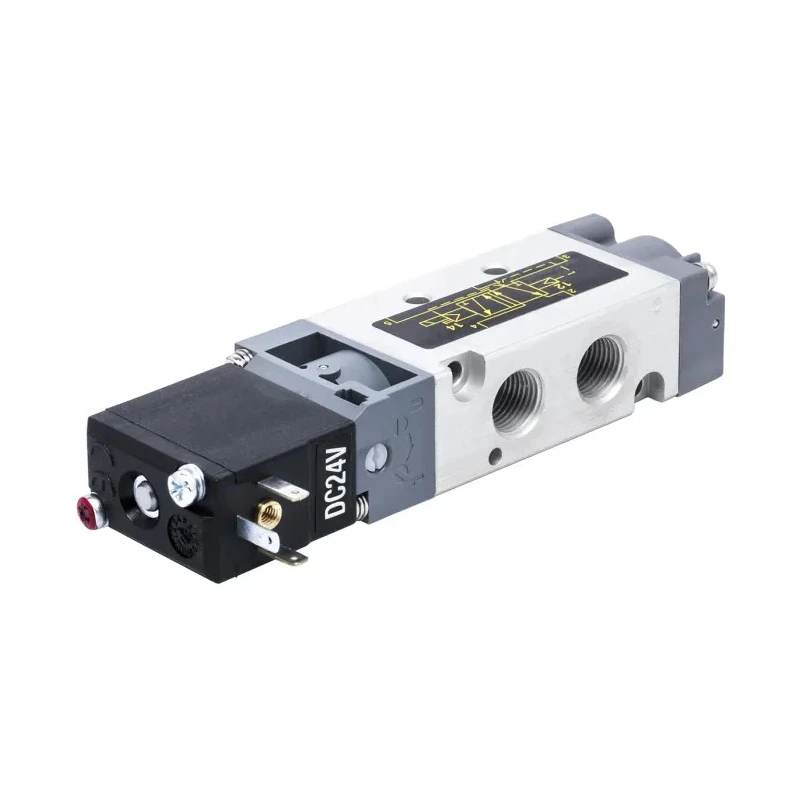

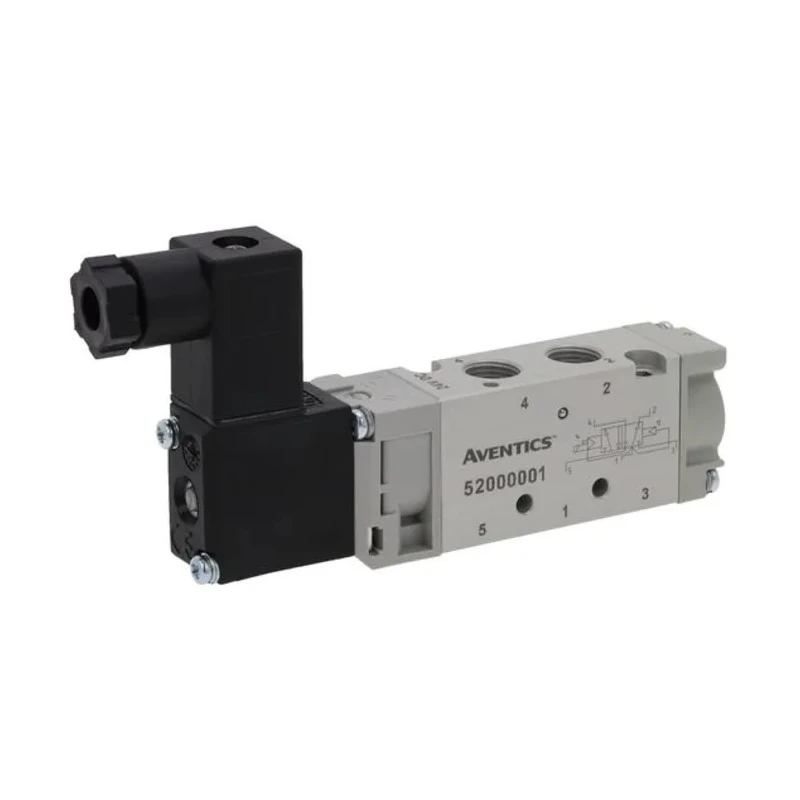

EMERSON ? ASCO Pneumatic Solenoid Valve 5/2 Function, G 1/8 Thread, Manifold Mount, 24V dc, 52000001

EMERSON ? ASCO 52000001 Pneumatic Solenoid Valve 5/2 Function offers robust and reliable operation in industrial pneumatic systems. This valve is configured for manifold mount type installation with a G 1/8 connection thread, operating on a 24V dc solenoid actuation.

With its body made of anodised aluminium, it provides both durability and resistance to corrosion, suitable for harsh industrial environments. The valve features 5 ports and a 5/2 function enabling versatile control in pneumatic circuits.

Designed to withstand maximum operating pressures up to 8 bar, it supports pilot pressures from 1.5 bar minimum to 8 bar maximum. The nitrile rubber (NBR) seal material ensures secure containment of air flow and longevity of valve function. The solenoid power consumption is low at 1.6W, making it energy efficient.

The valve maintains performance within temperature limits of 5°C minimum to 50°C maximum, suitable for a wide range of industrial applications. Electrical connection is provided via a plug connector to ensure secure and safe electrical coupling.

This compact valve measures 54.5mm in height, 114mm in length, and 18mm in width, facilitating easy integration into manifold assemblies with a DIN mount pattern. The maximum flow rate of 600 L/min ensures effective control of pneumatic supply in manufacturing automation, fluid power tools, and process control environments.

Manifold mount type with DIN mount pattern ensures easy installation. Constructed from anodised aluminium body for durability and corrosion resistance. Operates within temperature range of 5°C to 50°C for versatile industrial applications.

Maximum operating pressure of 8 bar with maximum pilot pressure of 8 bar and minimum pilot pressure of 1.5 bar. Valve function is 5/2 with 5 ports suitable for complex pneumatic circuits. Seal material is nitrile rubber (NBR) ensuring effective sealing under varied conditions.

Electrical connection via plug connector for secure and reliable energising. Maximum flow rate rated at 600 L/min providing efficient pneumatic flow control. Compact size with dimensions: height 54.5mm, length 114mm, width 18mm saves installation space.

Designed for industrial pneumatic systems including manufacturing, automation, and process control.

This valve is ideal for industrial, manufacturing, hydraulic & pneumatic tooling, and fluid power applications where efficient solenoid actuation and reliable valve control are essential. Its robust construction and electrical compatibility make it well-suited for integration in automated pneumatic networks.
