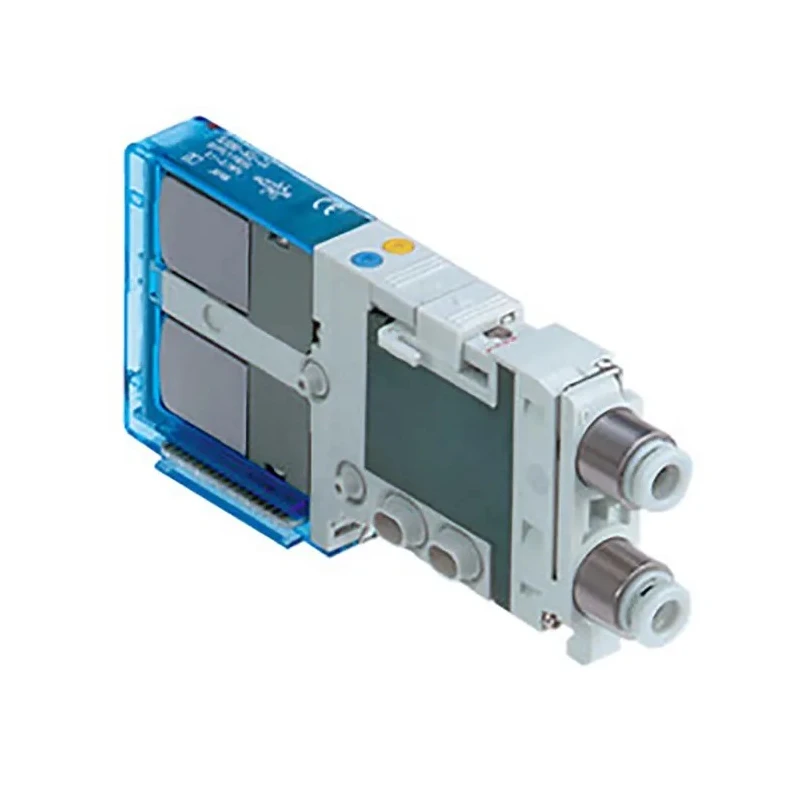

SMC Pneumatic Solenoid Valve 4/2 NC Solenoid Manifold Mount Die Cast Zinc Body 24V 0.55W SJ2000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 4/2 NC Solenoid Manifold Mount Die Cast Zinc Body 24V 0.55W SJ2000



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 (Internal & External) MPa
Height	90.9mm
Length	110.5mm
Model	SJ2000
Width	32.5mm
Mount Type	Manifold
Series	SJ2000
Number Of Ports	4
Maximum Operating Temperature	50°C
Number of Positions	2
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	21L/min
Standards/Approvals	cULus, CE
Minimum Pilot Pressure	0.15MPa
Valve Function	4/2 NC
Electrical Connection Type	D-Sub Connector
Maximum Pilot Pressure	0.7MPa
Solenoid Type	Single
Port Gender	Male
Solenoid Power Consumption	0.55W

Key Features

Operates under a voltage supply of 24V with a power consumption of 0.55W.
Features a 4/2 normally closed valve function with 2 positions.
Constructed with a durable die cast zinc body and rubber seal for reliable performance.
Supports maximum operating pressure of 0.7 MPa internally and externally.
Designed for manifold mounting with male port gender and D-Sub electrical connector.
Operates within temperature ranges from -10°C to 50°C for versatile industrial applications.
Maximum flow rate of 21 liters per minute ensuring efficient pneumatic control.
Complies with cULus and CE standards ensuring safety and quality.

Product Description

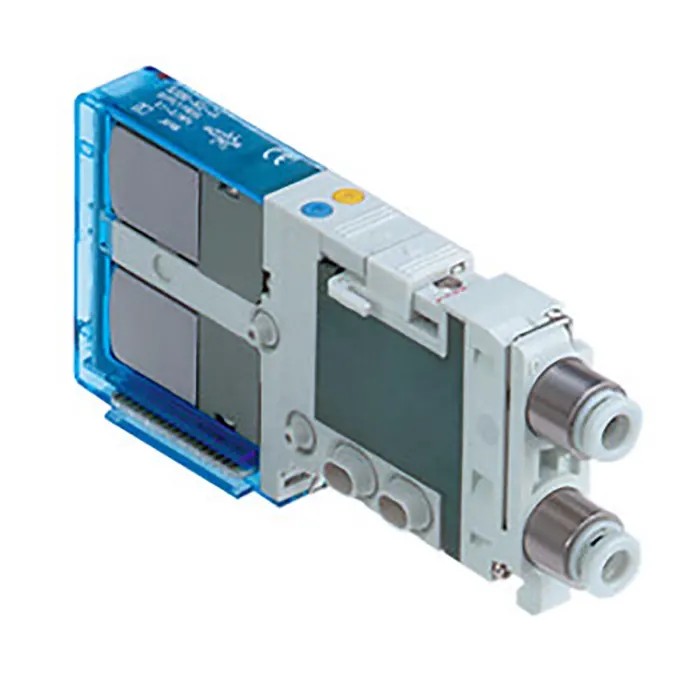

SMC SJ2260-5CU-C4 Pneumatic Solenoid Valve from the SJ2000 Series offers precise 4/2 NC valve control using a single solenoid actuator powered by 24 volts DC and consuming 0.55 watts of power. This valve features a robust die cast zinc body paired with a rubber seal, designed specifically for manifold mounting with male ports and a D-sub type electrical connection.

Operating within a pressure range up to 0.7 MPa, it delivers a maximum flow rate of 21 L/min. The valve functions reliably between -10°C minimum operating temperature and a maximum of 50°C, suitable for a broad range of industrial pneumatic applications including manufacturing automation, fluid power systems, and process controls.

The valve includes two position functionality with a maximum pilot pressure rating of 0.7 MPa and a minimum pilot pressure of 0.15 MPa, making it adaptable to various system requirements. This model complies with internationally recognized standards including cULus and CE, ensuring quality and safety compliance in global markets.

Its compact dimensions of 110.5mm length, 32.5mm width, and 90.9mm height facilitate easy integration into complex pneumatic systems. The solenoid valve is engineered for industrial, laboratory, manufacturing, and HVAC pneumatic control uses.

Operates at 24V DC with 0.55W power consumption. Manifold mount design with 4 male ports and D-Sub electrical connector. Die cast zinc body with rubber seal ensures durability and tight sealing. Maximum pressure 0.7 MPa with max flow rate of 21 L/min.

Suitable for operating temperatures between -10°C and 50°C. Meets cULus and CE standards for safety and reliability. Compact size: 110.5mm x 32.5mm x 90.9mm. Ideal for industrial automation, fluid power, and process control systems.

This SMC Pneumatic Solenoid Valve series SJ2000 exemplifies quality engineering from Japan, combining precision, durability, and compliance ideal for demanding pneumatic valve applications. For more pneumatic valve solutions, explore EnvMart’s comprehensive industrial valves and pneumatic component categories.
