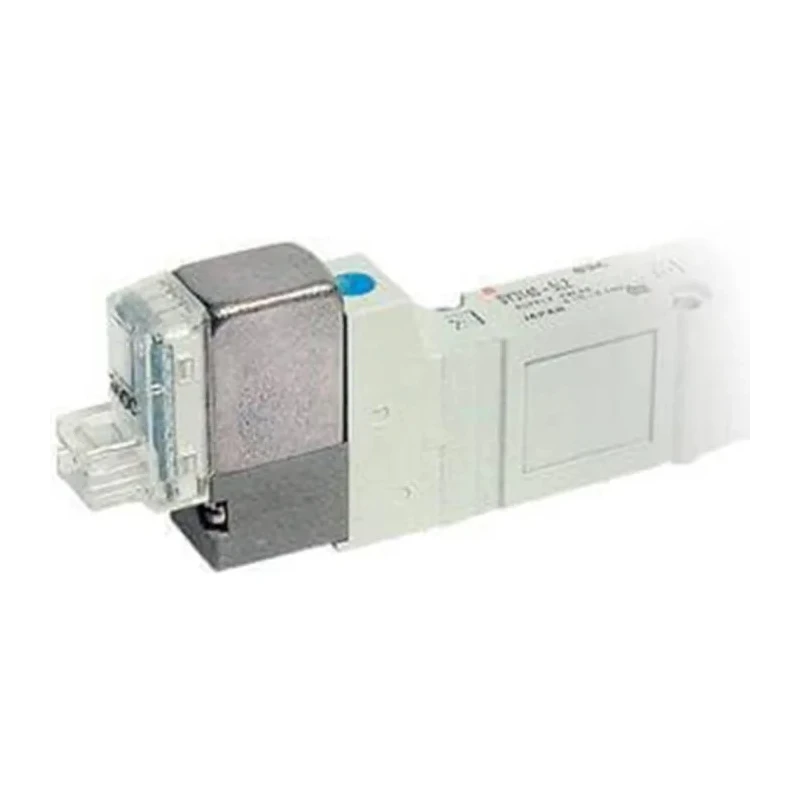

SMC Solenoid Valve 5 Port Plug-in Die Cast Aluminium Body 24V 0.35W Power Consumption SY5120-5DZ-01-Q

Free Delivery in India | Lowest Global Shipping Charges

SMC Solenoid Valve 5 Port Plug-in Die Cast Aluminium Body 24V 0.35W Power Consumption SY5120-5DZ-01-Q



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	7 bar
Model	SY5120-5DZ-01-Q
Mount Type	Plug-in
Series	SY
Number Of Ports	5
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	1/8 in
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	746L/min
Standards/Approvals	RoHS
Connection Thread Standard	Rc
Minimum Pilot Pressure	1.5bar
Electrical Connection Type	D-Sub Connector
Solenoid Type	Single
Solenoid Power Consumption	0.35W

Key Features

Operates at 24V voltage with low power consumption of 0.35W.
Supports maximum operating pressure of 7 bar and pilot pressure range from 1.5 to 7 bar.
Offers a maximum flow rate of 746 L/min with 2-position single solenoid actuation.
Equipped with rubber seals and D-Sub electrical connection for reliable performance.
Designed to operate within temperature range of -10°C to 50°C with IP67 protection.
Compact plug-in mount type suitable for individual or manifold-mounted pneumatic systems.
Body is made from die cast aluminium providing durability with Rc standard connection thread.
Complies with RoHS standards and is manufactured in Japan ensuring quality and reliability.

Product Description

SMC SY5120-5DZ-01-Q solenoid valve is a high-performance pneumatic valve designed for accurate fluid control in industrial applications. It is part of the SY series, known for compact, high-flow valves with low power consumption. The valve body is constructed from robust die cast aluminium with a plug-in mount type, ensuring durability and ease of installation.

This 5-port valve operates on a 24V supply and features a single solenoid actuation type for two-position control. It supports a maximum operating pressure of 7 bar and pilot pressures between 1.5 and 7 bar, making it suitable for a wide range of pneumatic systems.

The valve has rubber sealing material, providing effective sealing performance within minimum operating temperatures of -10°C and a maximum operating temperature of 50°C. The maximum flow rate of 746 L/min allows efficient air handling, and its IP67 rating offers protection against dust and water ingress.

The electrical connection is made via a D-Sub connector, enhancing reliability in industrial environments. This solenoid valve complies with RoHS standards and is manufactured in Japan, ensuring high-quality production standards.

This SMC solenoid valve is widely used in industrial automation, manufacturing plants, process control, pneumatic systems, and other fluid power applications requiring precise valve control. The compact design allows manifold mounting or individual installation as per system requirements.

Operates at 24V voltage with low power consumption of 0.35W. Supports maximum operating pressure of 7 bar and pilot pressure range from 1.5 to 7 bar. Offers a maximum flow rate of 746 L/min with 2-position single solenoid actuation.

Equipped with rubber seals and D-Sub electrical connection for reliable performance. Designed to operate within temperature range of -10°C to 50°C with IP67 protection. Compact plug-in mount type suitable for individual or manifold-mounted pneumatic systems.

Body is made from die cast aluminium providing durability with Rc standard connection thread. Complies with RoHS standards and is manufactured in Japan ensuring quality and reliability. Explore more Pneumatic Solenoid Valves and pneumatic components at EnvMart for industrial and laboratory applications.
