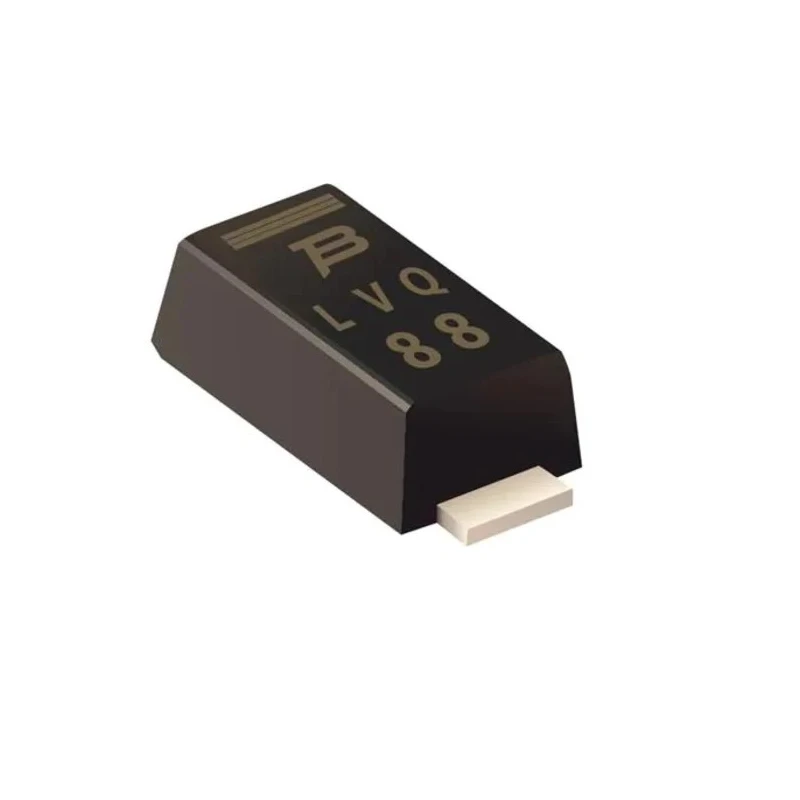

Bourns 1-Element Uni-Directional TVS Diode 400W Surface Mount SOD-123 SMF4L85A-Q

Free Delivery in India | Lowest Global Shipping Charges

Bourns 1-Element Uni-Directional TVS Diode 400W Surface Mount SOD-123 SMF4L85A-Q

Name: Bourns 1-Element Uni-Directional TVS Diode 400W Surface Mount SOD-123 SMF4L85A-Q
Brand: BOURNS
SKU: 171395
Price: 0.15 USD
Availability: InStock



Category TVS Diode Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	0.22mm
Length	0.27mm
Model	SMF4L85A-Q
Width	0.25mm
Mount Type	Surface
Series	SMF
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	85V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	104V
Maximum Reverse Stand-off Voltage Vwm	85V
Peak Pulse Power Dissipation Pppm	400W
Test Current It	1mA
Maximum Reverse Leakage Current	1μA
Standoff Voltage	5 to 85 volts

Key Features

Offers transient voltage suppression for surge and electrostatic discharge protection.
Single diode configuration with uni-directional voltage clamping.
Peak pulse power dissipation of 400 watts ensures robust protection.
Compact surface mount package SOD-123 for easy PCB assembly.
Operating temperature range from -55°C to 150°C supports varied environments.
Maximum reverse stand-off voltage of 85 volts with clamping voltage at 85 volts.
Small chip size with dimensions 0.27mm length, 0.25mm width, and 0.22mm height.
Designed according to JEDEC standards with fast response time under 1 picosecond.

Product Description

Bourns SMF4L85A-Q is a high-performance 1-element uni-directional transient voltage suppressor (TVS) diode rated at 400 watts peak pulse power dissipation. Encased in a compact surface mount SOD-123 package, this diode safeguards sensitive electronic circuits from voltage transients caused by surges, spikes, or electrostatic discharge events.

Featuring a single diode configuration and a uni-directional voltage clamp, it provides reliable protection with a minimum breakdown voltage of 104 volts and a maximum reverse stand-off voltage of 85 volts. The clamping voltage is also rated at 85 volts, ensuring effective suppression of voltage spikes.

The device operates efficiently from -55°C up to 150°C, making it suitable for demanding industrial, automotive, and consumer electronics applications. Its minimal physical footprint (0.27mm length × 0.25mm width × 0.22mm height) allows integration in densely populated printed circuit boards while maintaining JEDEC compliance and AEC-Q101 automotive standard certification for demanding environments.

Bourns TVS diodes boast very fast response times of less than 1 picosecond, safeguarding circuits instantaneously against transient voltage events. The device’s low maximum reverse leakage current of just 1 microampere minimizes power dissipation in normal operation.

This diode is ideal for use in power supplies, telecom equipment, industrial controls, automotive electronics, and other applications requiring robust electrostatic and surge protection in a small form-factor package.

Transient voltage suppression for surge and ESD protection. Compact surface mount SOD-123 package. Single element uni-directional configuration. 400W peak pulse power dissipation. Operating temperature range -55°C to 150°C.

Maximum stand-off voltage of 85V with 85V clamp voltage. Very fast response time under 1 picosecond. Automotive grade with AEC-Q101 certification. Meets JEDEC standards for diode components. Low reverse leakage current of 1μA.

Choose Bourns SMF4L85A-Q TVS diode for superior circuit protection in industrial, automotive, telecom, and consumer electronic applications. Browse more TVS Diodes and semiconductor products on EnvMart for reliable component sourcing.
