Wurth Elektronik Wirewound Surface Mount Inductor 18 nH ±5% 1 A IDC Shielded Ceramic Core WE-KI 744762118A

Free Delivery in India | Lowest Global Shipping Charges

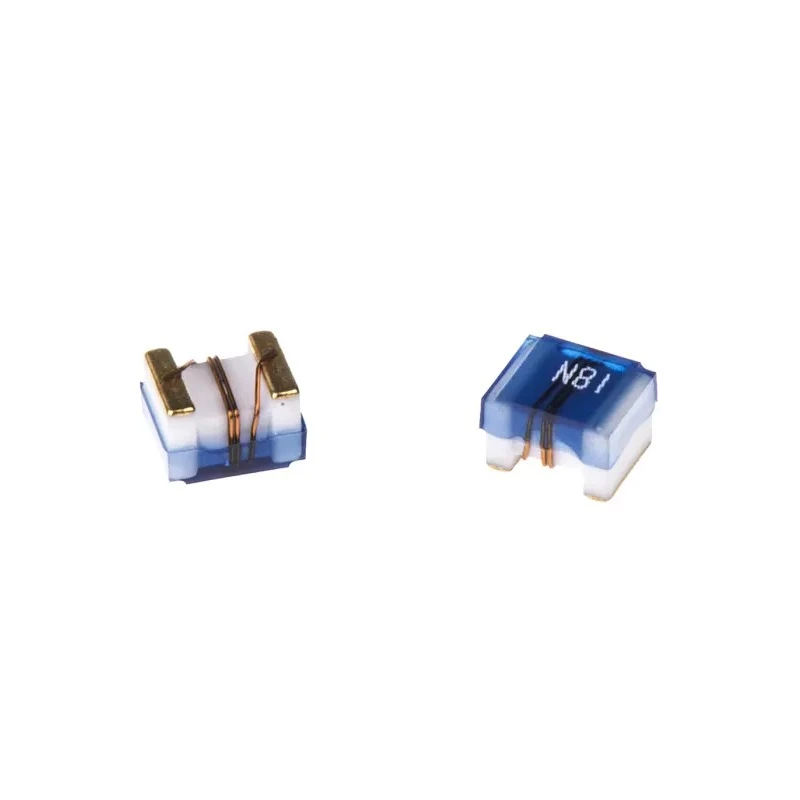

Wurth Elektronik Wirewound Surface Mount Inductor 18 nH ±5% 1 A IDC Shielded Ceramic Core WE-KI 744762118A

Name: Wurth Elektronik Wirewound Surface Mount Inductor 18 nH ±5% 1 A IDC Shielded Ceramic Core WE-KI 744762118A
Brand: Wurth Elektronik
SKU: 135527
Price: 0.43 USD
Availability: InStock



Category Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Malaysia
Brand	Wurth Elektronik
Height	1.6mm
Length	2.5mm
Model	744762118A
Depth	2mm
Packaging	Tape & Reel
Series	WE-KI
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ceramic
Inductance	18nH
Standards/Approvals	RoHS, REACH
Package/Case	1008A
Maximum DC Current	1A
Pin Count	2
Maximum DC Resistance	100mΩ
Inductance Tolerance	±5 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	2.7GHz
Minimum Quality Factor	60
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

Shielded design reduces EMI for stable performance.
Maximum operating temperature of 125°C ensures reliability.
Compliant with automotive standard AEC-Q200.
High quality factor of at least 60 for efficient high-frequency applications.
Packaged in tape and reel suitable for automated assembly.
Ceramic core construction provides thermal stability and durability.
Compact 1008A package with 2.5mm length supports space-saving PCB layouts.
Moulded wirewound construction improves mechanical robustness.

Product Description

Wurth Elektronik 744762118A is a shielded wirewound surface mount inductor featuring a ceramic core, designed for high-frequency industrial and commercial electronic applications. With an inductance of 18 nH and a tolerance of ±5%, this inductor supports a maximum DC current of 1 A and delivers a minimum quality factor of 60, ideal for wireless communications, RF transceiver circuits, and power management.

This inductor is housed in a compact 1008A package with dimensions 2.5mm length, 1.6mm height, and 2mm depth, optimized for surface mount technology and space-constrained PCB designs.

The product complies with AEC-Q200 automotive standard and meets RoHS and REACH regulations, ensuring safe and environmentally compliant usage. Its shielded construction effectively minimizes electromagnetic interference, improving signal integrity in sensitive circuitry.

The ceramic core enhances thermal stability and durability, allowing operation within a temperature range from -40°C to 125°C. The wirewound construction provides excellent mechanical strength and consistent performance through thermal cycling.

Packaging is provided in tape and reel format, facilitating efficient pick-and-place assembly processes in industrial manufacturing environments. Shielded design reduces EMI for stable performance. Maximum operating temperature of 125°C ensures reliability.

Compliant with automotive standard AEC-Q200. High quality factor of at least 60 for efficient high-frequency applications. Packaged in tape and reel suitable for automated assembly. Ceramic core construction provides thermal stability and durability.

Compact 1008A package supports space-saving PCB layouts. Moulded wirewound construction improves mechanical robustness.

This Wurth Elektronik WE-KI series inductor is suited for use in industrial electronics, communication equipment, automotive electronics, and high-frequency power supplies. For more Wurth Elektronik Inductors and electronic components, browse EnvMart’s extensive catalog.
