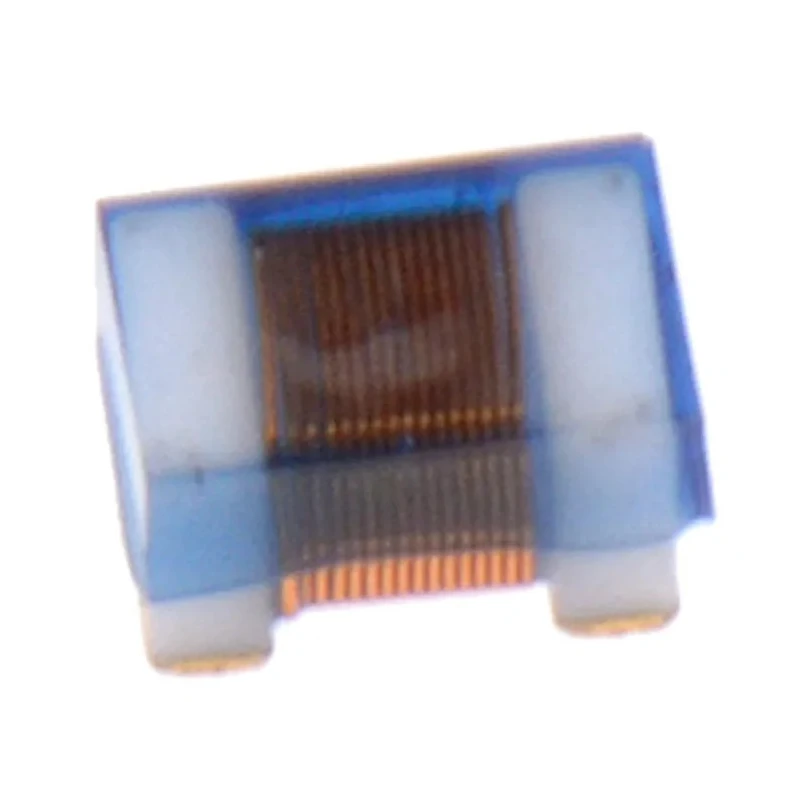

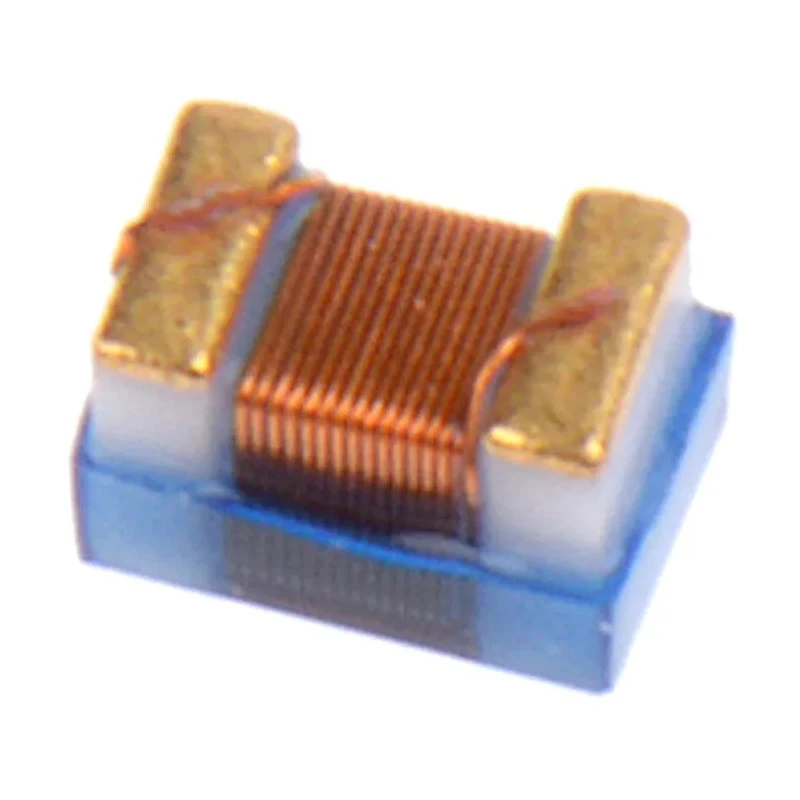

Wurth Elektronik WE-KI 0603 Shielded Wirewound Surface Mount Inductor with Ceramic Core 0.15 μH ±0.2 nH 280 mA 744761215A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.05mm |
| Length | 1.6mm |
| Model | 744761215A |
| Depth | 1.05mm |
| Packaging | Tape & Reel |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 0.15μH |
| Standards/Approvals | RoHS, REACH |
| Package/Case | 0603 |
| Maximum DC Current | 280mA |
| Pin Count | 2 |
| Maximum DC Resistance | 920mΩ |
| Inductance Tolerance | ±0.2 nH |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 1GHz |
| Minimum Quality Factor | 35 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Inductance value is 0.15 μH with a tight tolerance of ±0.2 nH.
- Maximum direct current rating of 280 mA ensures reliable operation.
- Package size of 0603 supports compact PCB design.
- Core material is ceramic, providing high stability.
- Constructed with wirewound technology for enhanced performance.
- Shielded design reduces electromagnetic interference.
- Meets automotive standard AEC-Q200 for quality assurance.
- Surface mount termination style suits automated assembly.
Product Description
Wurth Elektronik 744761215A WE-KI 0603 Shielded Wirewound Surface Mount Inductor is engineered for high frequency electronic circuits requiring compact and stable inductors. This wirewound inductor series utilizes a ceramic core, delivering superior thermal stability and shielding to minimize electromagnetic interference in sensitive electronic devices.
The component has an inductance of 0.15 μH with a highly precise tolerance of ±0.2 nH, suitable for RF applications including wireless LAN, Bluetooth, and RF transceiver communication devices. It supports a maximum DC current rating of 280 mA, making it reliable for demanding environments.
This inductor conforms to the AEC-Q200 automotive quality standard and is RoHS and REACH compliant, ensuring environmentally responsible manufacturing. The compact 0603 package (1.6 mm length by 1.05 mm height and depth) allows for efficient PCB space utilization, meeting modern electronics assembly requirements.
The product features a maximum self-resonant frequency of 1 GHz and a minimum quality factor of 35, making it suitable for high-frequency applications. Its termination style for surface mounting supports automated soldering processes such as reflow soldering.
Applications for this inductor include industrial, commercial, and automotive electronics requiring stability under thermal stress and interference reduction. The Wurth 744761215A WE-KI series enables designers to integrate high-performance inductive components in densely populated circuit boards.
Inductance of 0.15 μH with ±0.2 nH tolerance. Maximum DC current rating of 280 mA. Compact 0603 package size. Ceramic core material with wirewound construction. Shielded design for reduced interference. Automotive grade AEC-Q200 standard compliance.
Surface mount termination suitable for reflow soldering. Operating temperature range -40°C to 125°C. Maximum DC resistance of 920 mΩ. Maximum self-resonant frequency of 1 GHz. Minimum quality factor of 35. Explore more Wurth Elektronik inductors and components on EnvMart for advanced electronic design solutions.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 0.15 μH with a tolerance of ±0.2 nH.
It has a maximum DC current rating of 280 mA, ensuring reliable operation in various applications.
The dimensions of the 0603 package are 1.6 mm in length and 1.05 mm in both height and depth.
This inductor utilizes a ceramic core, which provides high stability and thermal performance.
The maximum self-resonant frequency of this unit is 1 GHz, suitable for high-frequency applications.
The minimum quality factor is 35, indicating its efficiency in high-frequency applications.
It operates within a temperature range of -40°C to 125°C, making it suitable for various environments.
This model complies with RoHS and REACH standards, ensuring environmentally responsible manufacturing.
The termination style is surface mount, which is compatible with automated soldering processes like reflow soldering.
It meets the AEC-Q200 automotive standard, ensuring quality for automotive applications.
The maximum DC resistance is 920 mΩ, which contributes to its performance in electronic circuits.
This inductor is constructed using wirewound technology, enhancing its performance characteristics.
