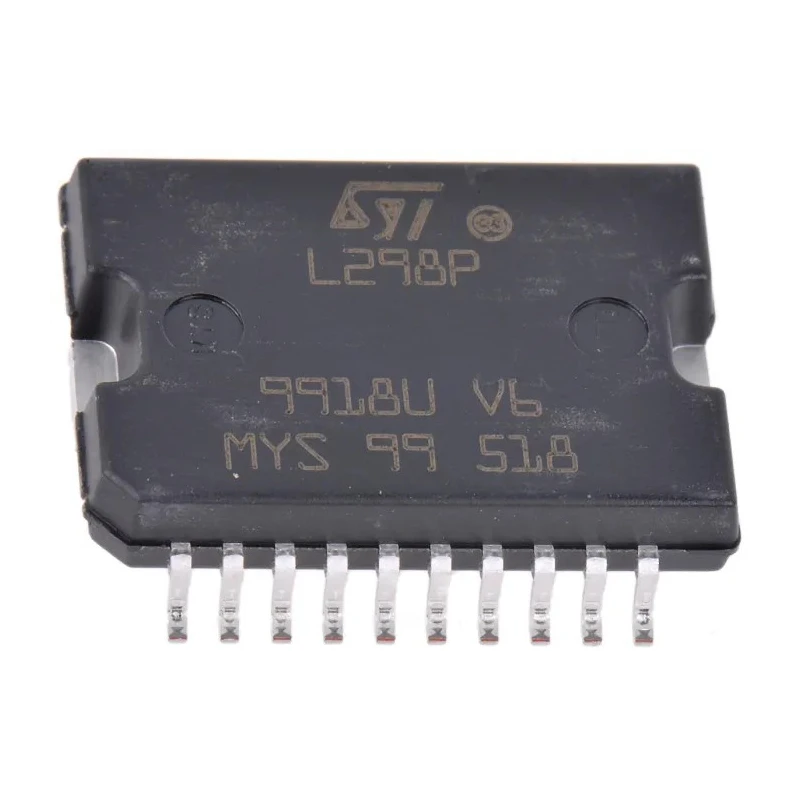

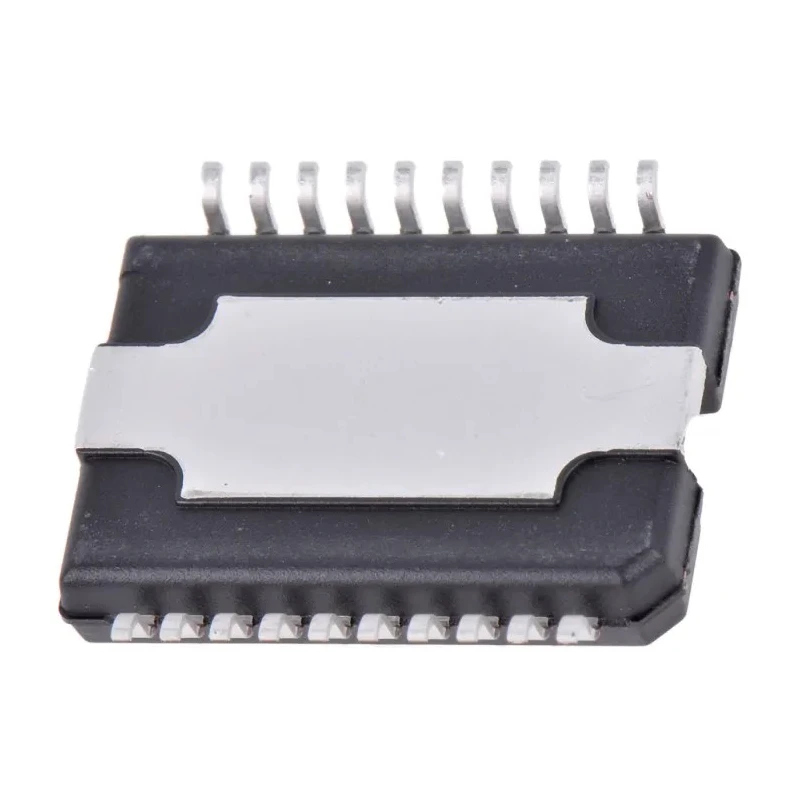

STMicroelectronics Brushed DC Motor Driver IC, Full Bridge, 46 V 4 A, 20-Pin PowerSO L298P013TR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Brushed DC Motor Driver IC, Full Bridge, 46 V 4 A, 20-Pin PowerSO L298P013TR

Name: STMicroelectronics Brushed DC Motor Driver IC, Full Bridge, 46 V 4 A, 20-Pin PowerSO L298P013TR
Brand: STMicroelectronics
SKU: 135461
Price: 10.62 USD
Availability: InStock



Category Motor Driver IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	3.3mm
Length	16mm
Model	L298P013TR
Width	11.1mm
Motor Type	Brushed DC Motor
Mount Type	Surface
Series	L298
Configuration	Full Bridge
Output Current	3A
Maximum Operating Temperature	130°C
Package Type	PowerSO
Minimum Operating Temperature	-25°C
Pin Count	20
Maximum Collector Emitter Voltage Vceo	46V
Maximum Supply Voltage	46V
Minimum Supply Voltage	4.8V
Supply Current	100μA
Maximum IGBT Collector Current	4A
Typical Switching Frequency	25kHz
Inverter Power Rating	25W

Key Features

Supports operating supply voltage up to 46 V.
Delivers total DC current of up to 4 A for powerful motor driving.
Includes low saturation voltage to enhance efficiency.
Features over-temperature protection for safety and reliability.
Includes logical low input voltage up to 1.5 V for high noise immunity.
Comes in a compact 20-pin PowerSO package for surface mounting.
Typical switching frequency is 25 kHz for efficient motor control.
Suitable for driving inductive loads including relays, solenoids, DC, and stepper motors.

Product Description

STMicroelectronics L298P013TR Brushed DC Motor Driver IC is a dual full bridge driver designed for high voltage and high current applications, enabling control of DC motors and inductive loads with ease. This IC accepts standard TTL logic signals and supports independent enabling or disabling of the two full bridges via dedicated enable inputs.

The device supports an operating supply voltage up to 46 V and a maximum DC current of 4 A, making it suitable for demanding motor control tasks. Low saturation voltage and over-temperature protection features provide enhanced efficiency and safety when used in industrial or commercial robotics, automation, and power management systems.

The L298P013TR comes in a compact 20-pin PowerSO surface mount package, suitable for PCB designs requiring space efficiency. With typical switching frequencies around 25 kHz, it accommodates precise speed control for brushed DC motors and stepper motors.

Operating supply voltage up to 46 V. Total DC current rating of up to 4 A. Low saturation voltage improves efficiency. Over-temperature protection increases device reliability. Logical low input voltage threshold of 1.5 V for noise immunity.

20-pin PowerSO surface mount package. Typical switching frequency of 25 kHz for efficient operation. Temperature range from -25°C to 130°C suitable for industrial applications. Compact size with dimensions 16 mm x 11.1 mm x 3.3 mm.

Ideal for driving relays, solenoids, brushed DC, and stepper motors.

This motor driver IC finds applications in industrial automation, robotics, motor control systems within HVAC units, manufacturing equipment, and automotive electronic control modules. The robust electrical characteristics enable stable performance and longevity in demanding conditions.

Explore the range of STMicroelectronics Motor Driver ICs at EnvMart for reliable and efficient motor control components optimized for your design and automation projects.
